Charges −q and +2q are located at x=+a and −a respectively. Determine the electric field vector...

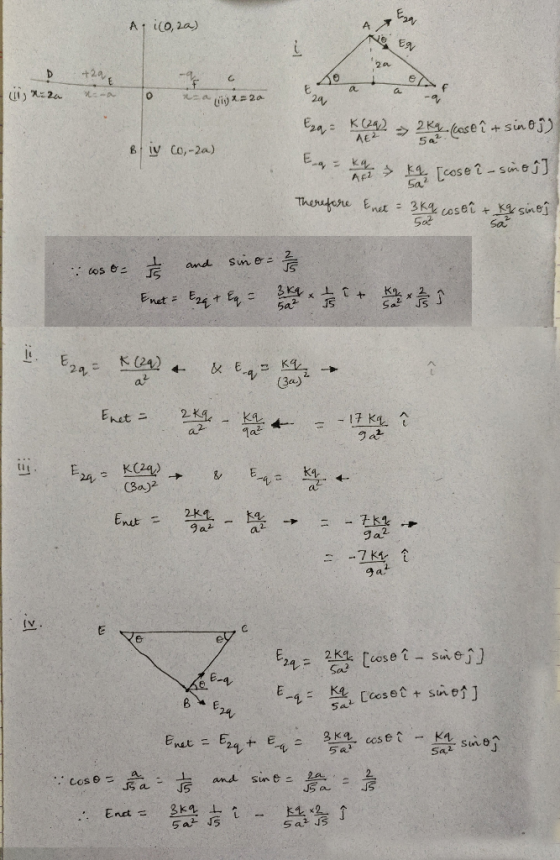

Charges −q and +2q are located at x=+a and −a respectively. Determine the electric field vector at the following points: i) (x,y)=(0,2a), ii) (x,y)=(−2a,0), iii) (x,y)=(2a,0), and iv) (x,y)=(0,−2a)
Homework Answers
Add Answer to:
Charges −q and +2q are located at x=+a and −a respectively.
Determine the electric field vector...
Charges q1=−5Qq1=−5Q and q2=+2Qq2=+2Q are located at x=−ax=−a and x=+ax=+a, respectively. What is the net electric...
Charges q1=−5Qq1=−5Q and q2=+2Qq2=+2Q are located at x=−ax=−a
and x=+ax=+a, respectively.
What is the net electric flux through a sphere of radius 5a5a
centered at the origin? Give your answer as a multiple of
Q/εQ/ε.
Please answer both the questions.
<Chapter 24 Problem 24.32 10 of 22 A Review Constants Charges qı = -5Q and q2 = +2Q are located at x = -a and x = ta, respectively. Part A What is the net electric flux through a sphere...
1-Three point charges, -Q, 2Q and -Q are placed in a straight line as shown in...
1-Three point charges, -Q, 2Q and -Q are placed in a straight
line as shown in the figure. The separation between charges is d =
30cm. If Q = 101nC, what is the magnitude of the electric field
produced by these three charges at a distance y = 36cm above the
central axis?
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
2-A type of electrical quadrupole is formed by four loads of
magnitude q = 49nC placed at the vertices of a square on side 2a,
with...
1) three point charges are arranged as follows Q1=+q is located at (-a,0);Q2=+q is at (a,0)...
1) three point charges are arranged as follows Q1=+q is located at (-a,0);Q2=+q is at (a,0) Q3=-q (0,a) a)Calculate the electric field at the origin and the point (0,-a) b)there are two points in the field around the charges where the field around the charges where the field strength is zero.Approximately where will they be located?Sketch a vector diagram of the three field vectors at these points and show they add to zero. 2) q1=+q is located at the origin...
Question5 0/1 pts Two charges of magnitude +2q and-q are situated on the x-axis at x...
Question5 0/1 pts Two charges of magnitude +2q and-q are situated on the x-axis at x =-a and x = +a, respectively +2q -q The electric field at point "P" is given by the expression 3/22 k,g (4 a+2)
1. A point charge +Q is located at the origin, and a point charge -Q is...
1. A point charge +Q is located at the origin, and a point
charge -Q is located at (x,y) = (0,L).
(a) Find the electric field at point P, which is a distance L
away from both +Q and -Q, as shown in the diagram. Express your
answer in unit vector notation using the coordinate system
given.
(b) A point charge -2Q is placed at point P. Find the Coulomb
force on the charge -2Q due to the other two...
two charges, +q and -q, are located in the x-y plane at points (0,+d/2) and (0,-d/2),...
two charges, +q and -q, are located in the x-y plane at points (0,+d/2) and (0,-d/2), respectively. Calculate the magnitude of the electric field at point p with the superposition principle. Data: q=33.0 nC, d=2.00 mm, and p is at x = 40.0 mm
Consider a system of three charges q/3,q/3, and −2q/3 placed at points A,B, and C respectively,...
Consider a system of three charges q/3,q/3, and −2q/3 placed at
points A,B, and C respectively, as shown in the figure. Take O to
be the centre of the circle of radius R and angle CAB=60
What is the magnitude and direction of the electric field at
O?
A) kq/3R^2 i
B) 2Kq/3R^2 i
C) -kq/3R^2 i
D) -2kq/3R^2 i
E) the electric field is zero at point O.
VI 60 10
Part A Two charges, +q and -q, are located in the x-y plane at points (0,+d/2)...
Part A Two charges, +q and -q, are located in the x-y plane at points (0,+d/2) and (0,-d/2), respectively. Calculate the magnitude of the electric field at point P with the superposition principle. Data: q = 13.0 nC, d = 4.40 mm and P is at x = 88.0 mm. Part B In the previous problem, you can get an approximate answer for the electric field at point P by using the electric dipole approximation which is valid for the...
You have two charges, +Q and -Q that are located on the x-axis, at equal distances...
You have two charges, +Q and -Q that are located on the x-axis, at equal distances on either side of the origin. You look at a point on the y-axis, as indicated by the black dot. Which vector best represents the direction of the electric field at that point? A) Vector E_A B) Vector E_B C) Vector E_C D) The electric field at that point is zero. E) The electric field is opposite to E_B.
Charges q1=−5Qq1=−5Q and q2=+2Qq2=+2Q are located at x=−ax=−a
and x=+ax=+a, respectively.
What is the net electric flux through a sphere of radius 5a5a
centered at the origin? Give your answer as a multiple of
Q/εQ/ε.
Please answer both the questions.
<Chapter 24 Problem 24.32 10 of 22 A Review Constants Charges qı = -5Q and q2 = +2Q are located at x = -a and x = ta, respectively. Part A What is the net electric flux through a sphere...
1-Three point charges, -Q, 2Q and -Q are placed in a straight
line as shown in the figure. The separation between charges is d =
30cm. If Q = 101nC, what is the magnitude of the electric field
produced by these three charges at a distance y = 36cm above the
central axis?
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
2-A type of electrical quadrupole is formed by four loads of
magnitude q = 49nC placed at the vertices of a square on side 2a,
with...
Question5 0/1 pts Two charges of magnitude +2q and-q are situated on the x-axis at x =-a and x = +a, respectively +2q -q The electric field at point "P" is given by the expression 3/22 k,g (4 a+2)
1. A point charge +Q is located at the origin, and a point
charge -Q is located at (x,y) = (0,L).
(a) Find the electric field at point P, which is a distance L
away from both +Q and -Q, as shown in the diagram. Express your
answer in unit vector notation using the coordinate system
given.
(b) A point charge -2Q is placed at point P. Find the Coulomb
force on the charge -2Q due to the other two...
Consider a system of three charges q/3,q/3, and −2q/3 placed at
points A,B, and C respectively, as shown in the figure. Take O to
be the centre of the circle of radius R and angle CAB=60
What is the magnitude and direction of the electric field at
O?
A) kq/3R^2 i
B) 2Kq/3R^2 i
C) -kq/3R^2 i
D) -2kq/3R^2 i
E) the electric field is zero at point O.
VI 60 10
You have two charges, +Q and -Q that are located on the x-axis, at equal distances on either side of the origin. You look at a point on the y-axis, as indicated by the black dot. Which vector best represents the direction of the electric field at that point? A) Vector E_A B) Vector E_B C) Vector E_C D) The electric field at that point is zero. E) The electric field is opposite to E_B.
