A spring is attached to the bottom of an empty swimming pool, with the axis of...

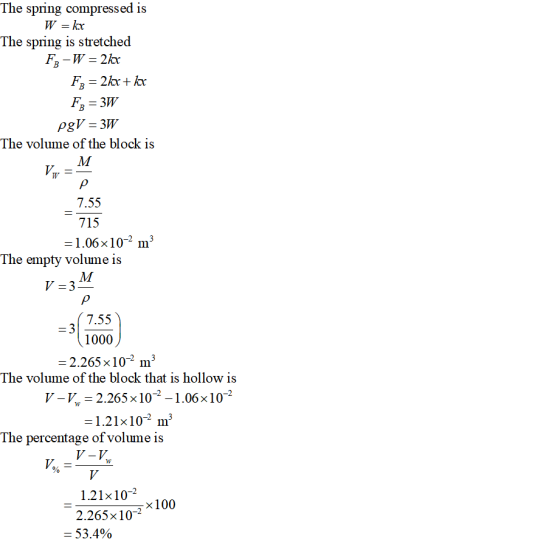

A spring is attached to the bottom of an empty swimming pool, with the axis of the spring oriented vertically. An 7.55-kg block of wood (density = 715 kg/m3) is fixed to the top of the spring and compresses it. Then the pool is filled with water, completely covering the block. The spring is now observed to be stretched twice as much as it had been compressed. Determine the percentage of the block's total volume that is hollow. Ignore any air in the hollow space.
Homework Answers
Add Answer to:
A spring is attached to the bottom of an empty swimming pool,
with the axis of...
A spring is attched to the bottom of an empty swimming pool, with axis ot the...
A spring is attched to the bottom of an empty swimming pool, with axis ot the spring oriented vertically. An 8.0 kg block of wood with density of d=850 kgm^-3 is fixed to the top of spring and compereeses it. Then the pool is filled with water, completley covering the block. The spring is now observed to be streched twice as much as it had been compressed. a) Determine the percentage of the block's total volume that is hollow. Ignor...
A spring oriented vertically is attached to a hard horizontal surface as in the figure below....
A spring oriented vertically is attached to a hard horizontal surface as in the figure below. The spring has a force constant of 1.32 kN/m. How much is the spring compressed when a object of mass m = 3.00 kg is placed on top of the spring and the system is at rest? The bottom end of a vertical spring is attached to a horizontal surface, and the top end is attached to a horizontal platform, which supports a block...
A solid block is attached to a spring scale. The reading on the scale when the...
A solid block is attached to a spring scale. The reading on the scale when the block is completely immersed in water is 24.8 N , and the reading when it is completely immersed in alcohol of density 806 kg/m3 is 25.8 N What is the block's volume? What is the block's density?
A light spring of constant 177 N/m rests vertically on the bottom of a large beaker...
A light spring of constant 177 N/m rests vertically on the bottom of a large beaker of water. A 4.42 kg block of wood of density 669 kg/m3 is connected to the top of the spring and the block-spring system is allowed to come to static equilibrium. What is the elongation ∆L of the spring? The acceleration of gravity is 9.8 m/s 2 . Answer in units of cm.
1. (10 Marks)A load of 50 N attached to a spring hanging vertically stretches the spring...
1. (10 Marks)A load of 50 N attached to a spring hanging vertically stretches the spring 5.0 cm. The spring is now placed horizontally on a table and stretched 11 cm. (a)What force is required to stretch the spring by that amount? (b) Plot a graph of force (on the y-axis) versus spring displacement from the equilibrium position along the x-axis x(cm) 2. (10 Marks) What are the (a) amplitude, (b) frequency 20 and (c) phase constant of the oscillation...
1. (10 Marks)A load of 50 N attached to a spring hanging vertically stretches the spring...
1. (10 Marks)A load of 50 N attached to a spring hanging vertically stretches the spring 5.0 cm. The spring is now placed horizontally on a table and stretched 11 cm. (a)What force is required to stretch the spring by that amount? (b) Plot a graph of force (on the y-axis) versus spring displacement from the equilibrium position along the x-axis. x(cm) 2. (10 Marks) What are the (a) amplitude, (b) frequency 20 and (c) phase constant of the oscillation...
A U-tube contains liquid of unknown density. An oil of density 770 kg/m³ is poured into...
A U-tube contains liquid of unknown density. An oil of density
770 kg/m³ is poured into one arm of the tube until the oil column
is 13.5 cm high. The oil-air interface is then 4.5 cm above the
liquid level in the other arm of the U-tube. Find the density of
the liquid.
A raft is made of 11 logs lashed together. Each is 38.0 cm in
diameter and has a length of 7.00 m. How many people (whole number)...
A spring is attched to the bottom of an empty swimming pool, with axis ot the spring oriented vertically. An 8.0 kg block of wood with density of d=850 kgm^-3 is fixed to the top of spring and compereeses it. Then the pool is filled with water, completley covering the block. The spring is now observed to be streched twice as much as it had been compressed. a) Determine the percentage of the block's total volume that is hollow. Ignor...
1. (10 Marks)A load of 50 N attached to a spring hanging vertically stretches the spring 5.0 cm. The spring is now placed horizontally on a table and stretched 11 cm. (a)What force is required to stretch the spring by that amount? (b) Plot a graph of force (on the y-axis) versus spring displacement from the equilibrium position along the x-axis x(cm) 2. (10 Marks) What are the (a) amplitude, (b) frequency 20 and (c) phase constant of the oscillation...
1. (10 Marks)A load of 50 N attached to a spring hanging vertically stretches the spring 5.0 cm. The spring is now placed horizontally on a table and stretched 11 cm. (a)What force is required to stretch the spring by that amount? (b) Plot a graph of force (on the y-axis) versus spring displacement from the equilibrium position along the x-axis. x(cm) 2. (10 Marks) What are the (a) amplitude, (b) frequency 20 and (c) phase constant of the oscillation...
A U-tube contains liquid of unknown density. An oil of density
770 kg/m³ is poured into one arm of the tube until the oil column
is 13.5 cm high. The oil-air interface is then 4.5 cm above the
liquid level in the other arm of the U-tube. Find the density of
the liquid.
A raft is made of 11 logs lashed together. Each is 38.0 cm in
diameter and has a length of 7.00 m. How many people (whole number)...
