Light reflected from the surface of a road is 1/3 vertically polarized and 2/3 horizontally polarized....
Light reflected from the surface of a road is 1/3 vertically
polarized and 2/3 horizontally
polarized.

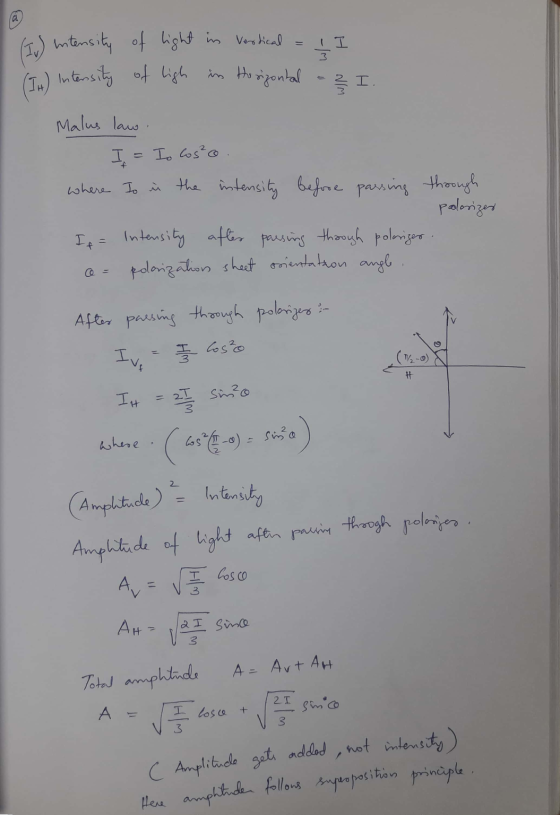

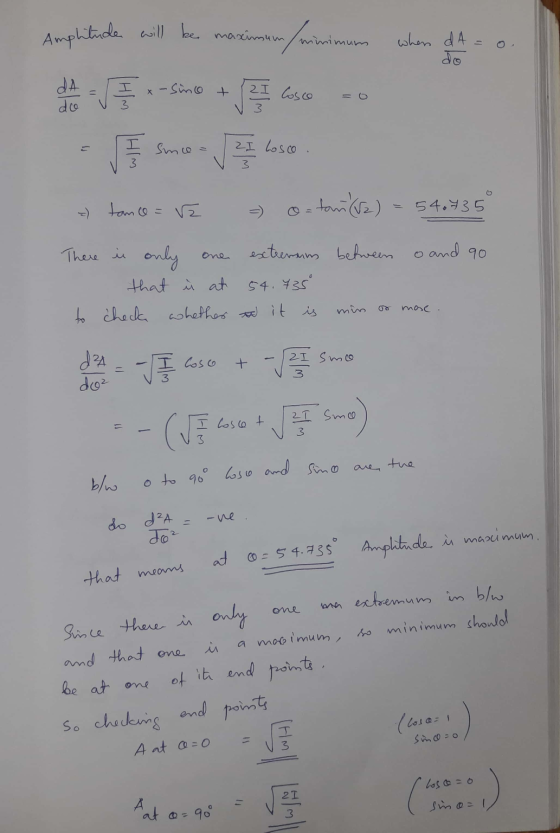

1) At what angle should the polarization direction of a
polarizing sheet be oriented to
provide the maximum reduction in light intensity? Show your work
and all steps, don’t just write
the answer.

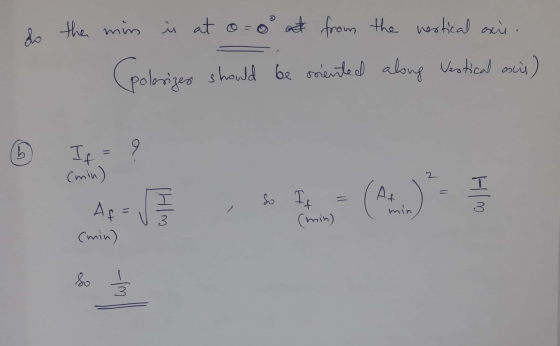

2) What fraction of light passes through the filter if it is
oriented to provide the maximum
reduction of light intensity? Again, show your work and all steps,
don’t just write the answer
Homework Answers
Add Answer to:
Light reflected from the surface of a road is 1/3 vertically
polarized and 2/3 horizontally
polarized....
A beam of partially polarized light (a mixture of vertically polarized and unpolarized light) of intensity...
A beam of partially polarized light (a mixture of vertically polarized and unpolarized light) of intensity 500 Wimm' is incident on a polarizing sheet. In order to determine the relative intensities of the polarized and unpolarized portions of the beam, the light is sent through a vertical polarizer, and the intensity is noted to drop to 300 Wm Mathematical Analysis a. Determine the intensities of the polarized and unpolarized portions of the beam b. What is the transmitted intensity if...
Light of intensity Io and polarized horizontally passes through three polarizers. The first and third polarizing...
Light of intensity Io and polarized horizontally passes through three polarizers. The first and third polarizing axes are horizontal, but the second one is oriented 20.0 degrees to the horizontal. In terms of Io, what is the intensity of the light that passes through the set of polarizers? Please show steps and equations
Vertically polarized light of intensity I0 is incident on a polarizer with axis oriented vertically, it...
Vertically polarized light of intensity I0 is incident on a polarizer with axis oriented vertically, it then goes to an anaylzer with axis oriented horizontally. If a third polarizer is placed between the two with the axis at your choice, what is the maximum intensity that will come through all 3 polarizers? Please show work andexplain. thank you.
A beam of partially polarized light can be considered to be a mixture of polarized and...
A beam of partially polarized light can be considered to be a mixture of polarized and unpolarized light. Suppose a beam of partially polarized light is sent through a polarizing filter. The polarization direction of the filter can be changed by rotating it. As the filter is rotated through 360 degrees, we observe that the transmitted intensity varies from some minimum value Imin to a maximum value of 7.0 times Imin. What fraction of the intensity of the original beam...
Light that passes through a series of three polarizing filters emerges from the third filter horizontally...
Light that passes through a
series of three polarizing filters emerges from the third filter
horizontally polarized with an intensity of 225 W/m2. If the
polarization angle between the filters increases by 25° from one
filter to the next, find the intensity of the incident beam of
light, assuming it is initially unpolarized.
Light that passes through a series of three polarizing filters emerges from the third filter horizontally...
Light that passes through a series of three polarizing filters emerges from the third filter horizontally polarized with an intensity of 230 W/m22. 1) If the polarization angle between the filters increases by 25∘∘ from one filter to the next, find the intensity of the incident beam of light, assuming it is initially unpolarized. (Express your answer to two significant figures.)
Light that passes through a series of three polarizing filters emerges from the third filter horizontally...
Light that passes through a series of three polarizing filters emerges from the third filter horizontally polarized with an intensity of 280 W/m2. 1) If the polarization angle between the filters increases by 25° from one filter to the next, find the intensity of the incident beam of light, assuming it is initially unpolarized. (Express your answer to two significant figures.) W/m2 Submit
Il of 13 S Horizontally polarized light is to be passed through a sequence of three...
Il of 13 S Horizontally polarized light is to be passed through a sequence of three polarizing filters. The direction of the polarization axis for each filter is indicated by lines drawn parallel to the axis. One filter is oriented so that its polarization axis is vertical, another is horizontal, and the third is at an angle between horizontal and vertical. Place the three polarizers from left to right in the order that maximizes the amount of transmitted light. Incoming...
A vertically polarized beam of light with an intensity lo is incident on a polarizing filter....
A vertically polarized beam of light with an intensity lo is incident on a polarizing filter. The transmission axis of the filter is initially vertical, as shown in the figure. polarizing filter with transmission axis vertical, originally vertically polarized incident beam Keeping the polarizing filter perpendicular to the direction of the incident light at all times, the polarizing filter is rotated a full rotation (360°). Graph 2 Graph 1 A + + + t t 180° 360° o 180° 360°...
An unpolarized beam of light with intensity 3 MW/m2 passes through two polarizing filters. The first...
An unpolarized beam of light with intensity 3 MW/m2 passes through two polarizing filters. The first filter is vertically polarized, and the second filter has a polarization axis 15 degrees away from horizontal. What is the intensity of the beam that exits the second filter?
A beam of partially polarized light (a mixture of vertically polarized and unpolarized light) of intensity 500 Wimm' is incident on a polarizing sheet. In order to determine the relative intensities of the polarized and unpolarized portions of the beam, the light is sent through a vertical polarizer, and the intensity is noted to drop to 300 Wm Mathematical Analysis a. Determine the intensities of the polarized and unpolarized portions of the beam b. What is the transmitted intensity if...
Light that passes through a
series of three polarizing filters emerges from the third filter
horizontally polarized with an intensity of 225 W/m2. If the
polarization angle between the filters increases by 25° from one
filter to the next, find the intensity of the incident beam of
light, assuming it is initially unpolarized.
Light that passes through a series of three polarizing filters emerges from the third filter horizontally polarized with an intensity of 280 W/m2. 1) If the polarization angle between the filters increases by 25° from one filter to the next, find the intensity of the incident beam of light, assuming it is initially unpolarized. (Express your answer to two significant figures.) W/m2 Submit
Il of 13 S Horizontally polarized light is to be passed through a sequence of three polarizing filters. The direction of the polarization axis for each filter is indicated by lines drawn parallel to the axis. One filter is oriented so that its polarization axis is vertical, another is horizontal, and the third is at an angle between horizontal and vertical. Place the three polarizers from left to right in the order that maximizes the amount of transmitted light. Incoming...
A vertically polarized beam of light with an intensity lo is incident on a polarizing filter. The transmission axis of the filter is initially vertical, as shown in the figure. polarizing filter with transmission axis vertical, originally vertically polarized incident beam Keeping the polarizing filter perpendicular to the direction of the incident light at all times, the polarizing filter is rotated a full rotation (360°). Graph 2 Graph 1 A + + + t t 180° 360° o 180° 360°...
