For each of the following functions, find all the minimum SOP expressions using the Karnaugh map....

Question

Question

For each of the following functions, find all the minimum SOP expressions using the Karnaugh map.

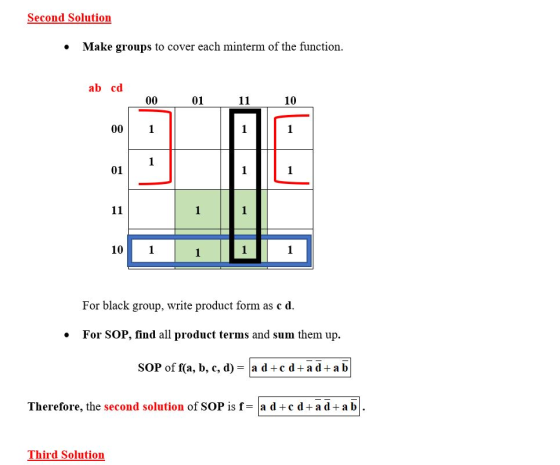

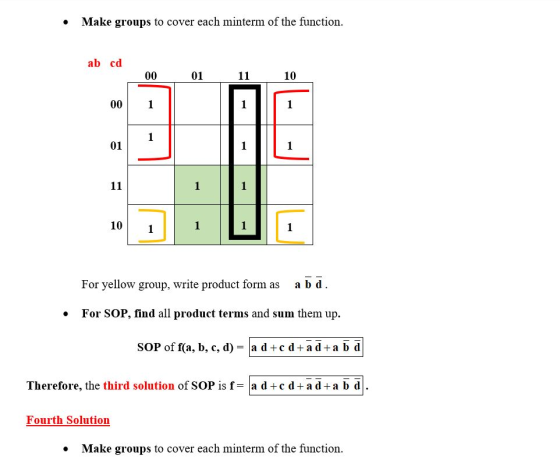

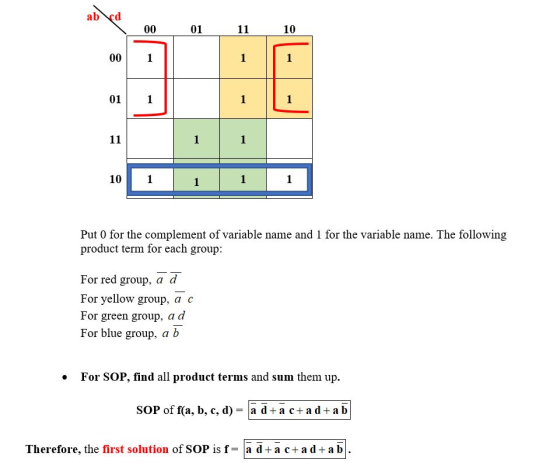

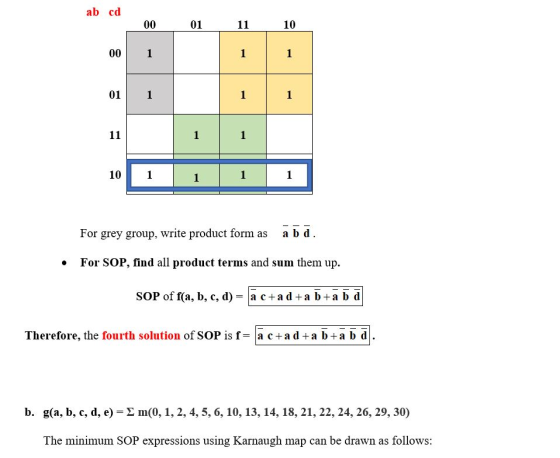

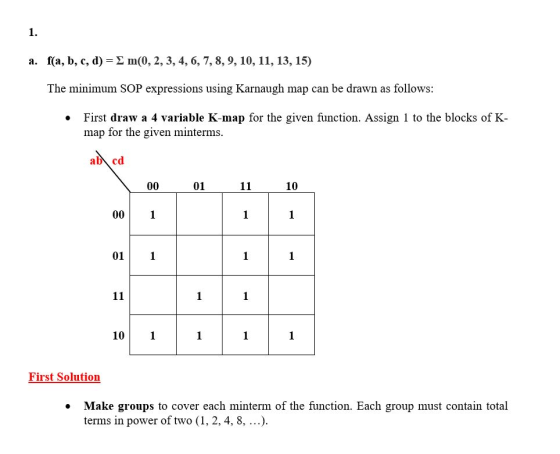

1. f(a,b,c,d) = Σm(0,2,3,4,6,7,8,9,10,11,13,15) (4 solutions)

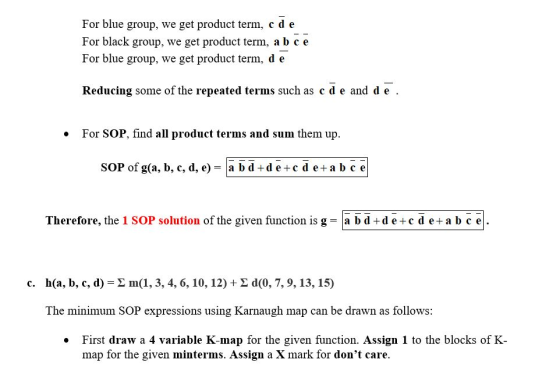

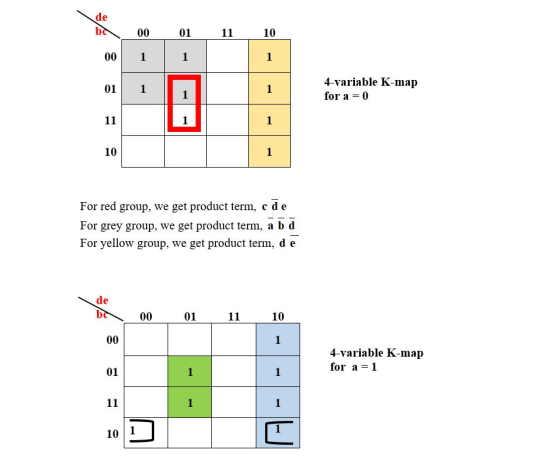

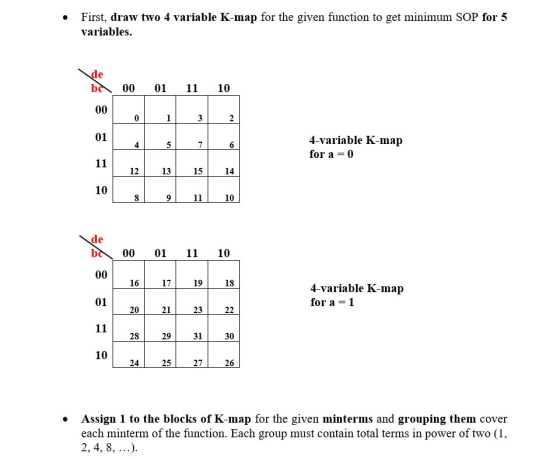

2. g(a,b,c,d,e)= Σm(0,1,2,4,5,6,10,13,14,18,21,22,24,26,29,30) (1 solution)

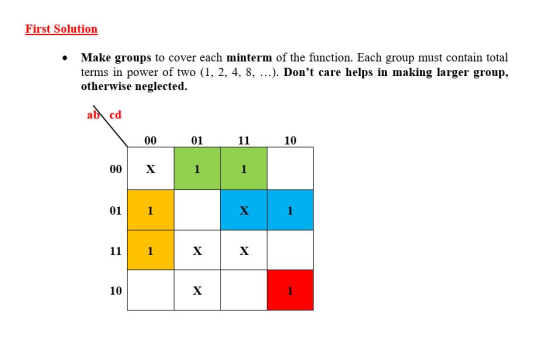

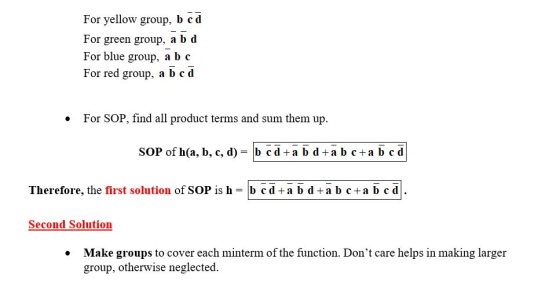

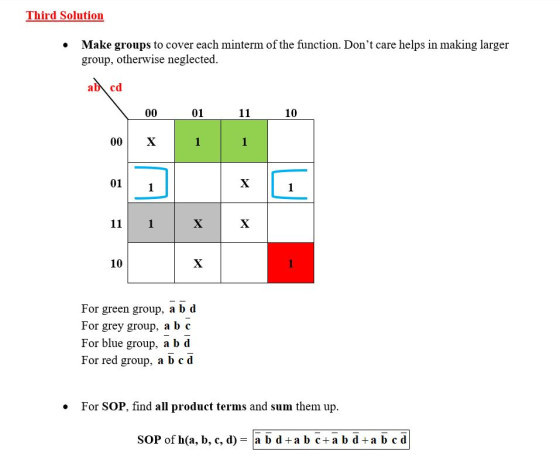

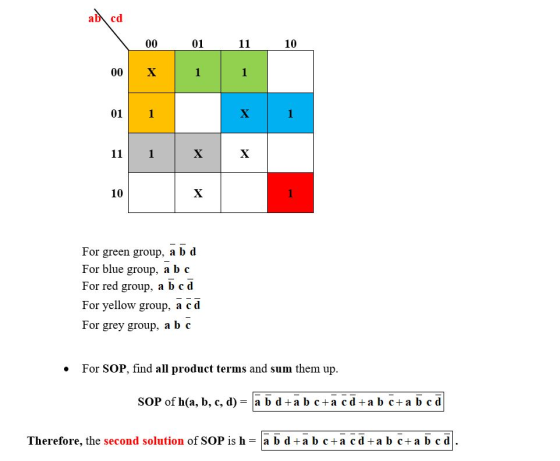

3. h(a,b,c,d) = Σm(1,3,4,6,10,12)+Σd(0,7,9,13,15) (3 solutions)

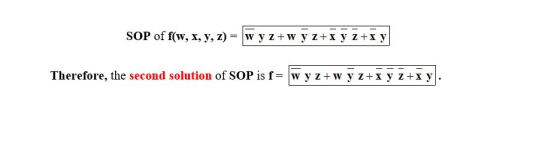

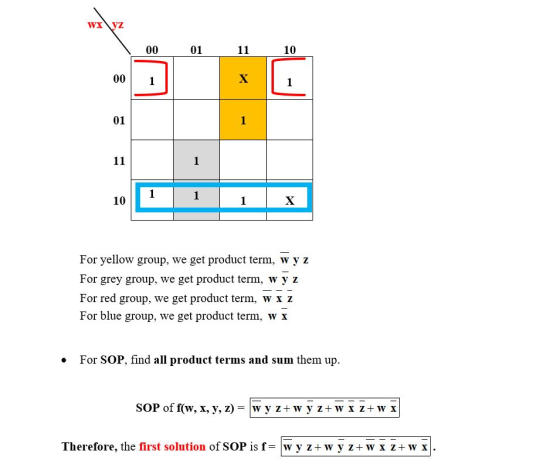

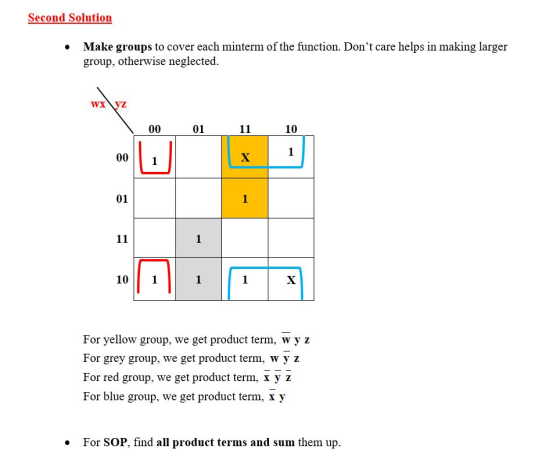

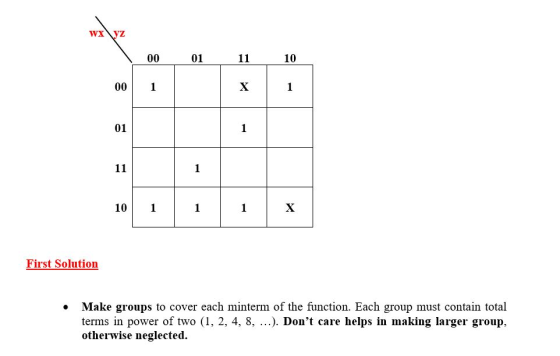

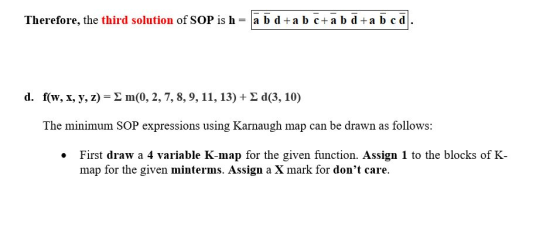

4. f(w,x,y,z) = Σm(0,2,7,8,9,11,13)+Σd(3,10) (2 solutions)

engineering Computer-Science

Answer 1

Answer #1

Answer 2
