Estimate the ratio of angular velocities for the rotation of a diver between the full tuck...

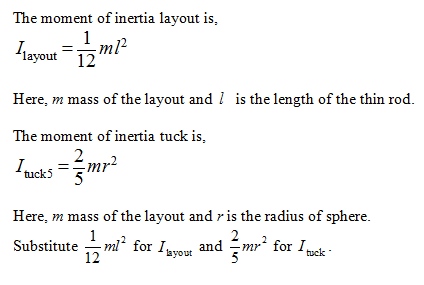

Estimate the ratio of angular velocities for the rotation of a diver between the full tuck position and the full layout position. (Assume that, in layout position, the diver is a thin rod of length 2.5 m and that, in full tuck position, the diver is a sphere of radius 0.50 m.)
| ωtuck |
| ωlayout |
=

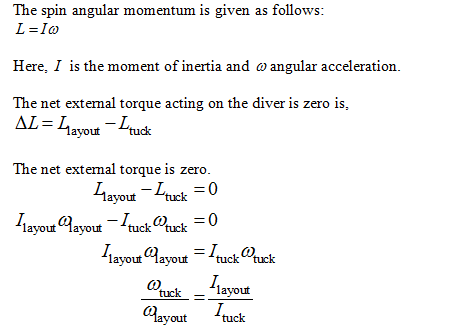

Because the net external torque acting on the diver is zero, the diver's angular momentum will remain constant as she rotates from the full tuck to the full layout position.
