A tensile test is performed on a linear elastic material using a cylindrical bar of diameter...

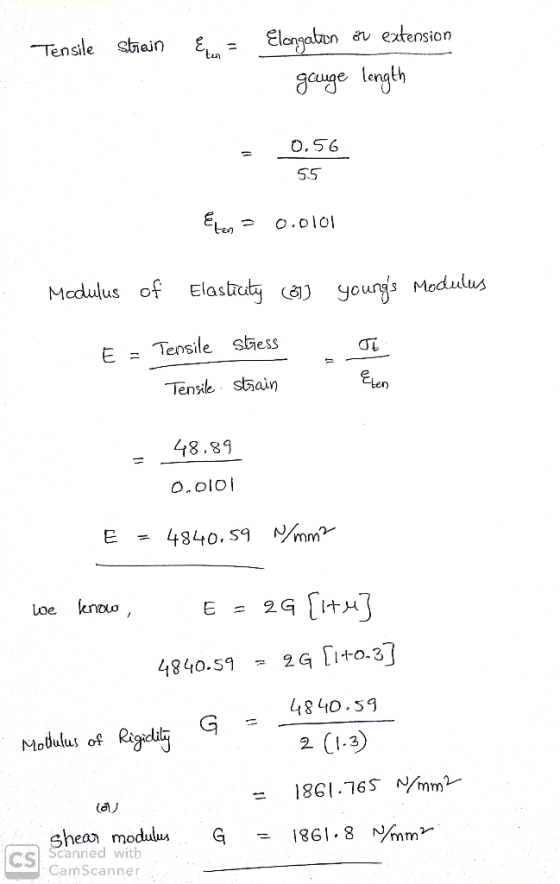

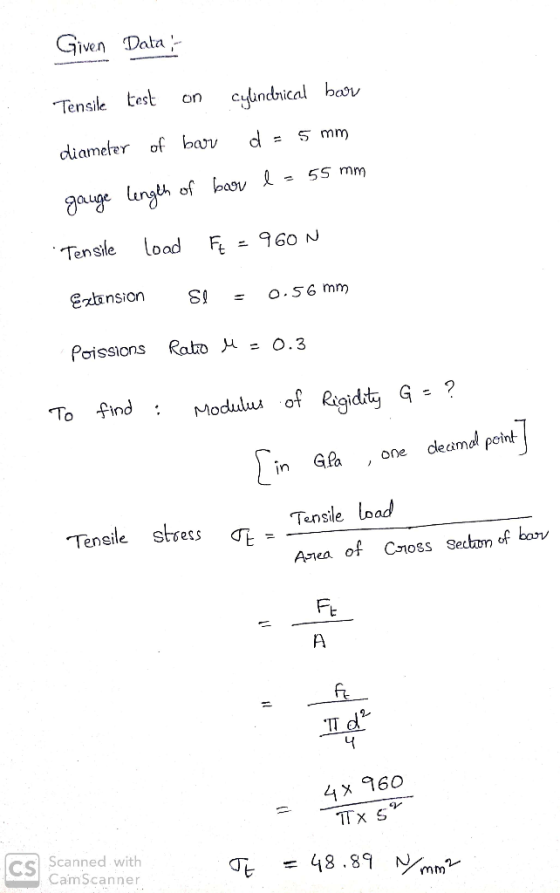

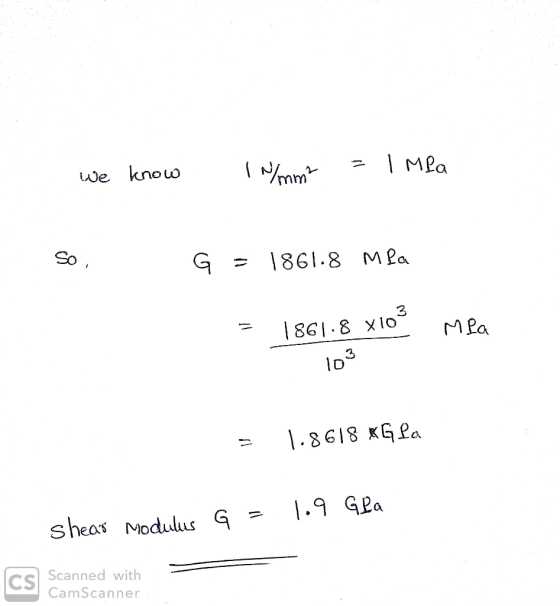

A tensile test is performed on a linear elastic material using a cylindrical bar of diameter 5 mm and gauge length 55 mm. An axial tensile force of 960 N is applied to the test specimen and a corresponding extension of 0.56 mm is recorded by the extensometer. Assuming that the Poisson's ratio is 0.3, calculate the modulus of rigidity (also known as the shear modulus), G, for this material. Enter your value in units of GPa to one decimal place.
Homework Answers
Add Answer to:
A tensile test is performed on a linear elastic material using a
cylindrical bar of diameter...
A cylindrical bar of metal having a diameter of 16.5 mm and a length of 183...
A cylindrical bar of metal having a diameter of 16.5 mm and a length of 183 mm is deformed elastically in tension with a force of 42000 N. Given that the elastic modulus and Poisson's ratio of the metal are 67.1 GPa and 0.34, respectively, determine the following:(a) The amount by which this specimen will elongate (in mm) in the direction of the applied stress. (b) The change in diameter of the specimen (in mm). Indicate an increase in diameter...
A cylindrical bar of metal having a diameter of 19.0 mm and a length of 207...
A cylindrical bar of metal having a diameter of 19.0 mm and a length of 207 mm is deformed elastically in tension with a force of 53700 N. Given that the elastic modulus and Poisson's ratio of the metal are 67.6 GPa and 0.34, respectively, determine the following: (a) The amount by which this specimen will elongate in the direction of the applied stress.
A cylindrical specimen of some metal alloy 6.8 mm in diameter is stressed in tension. A...
A cylindrical specimen of some metal alloy 6.8 mm in diameter is stressed in tension. A force of 1720 N produces an elastic reduction in specimen diameter of 0.0044 mm. Calculate the elastic modulus (in GPa) of this material if its Poisson's ratio is 0.35.
1.6 points) A tensile test specimen having a diameter of 10 mm and a gange length...
1.6 points) A tensile test specimen having a diameter of 10 mm and a gange length of 50 mm wa. tested to fracture. The stress-strain curve from the tension test is shown below. Labeling your points and showing the necessary steps, along with the corresponding calculations, find the following magnitudes: (a) Modulus of Elasticity, E = (b) Ultimate Strength = (e) Yield stress (0.2% offset method), (d) If the shear modulus of elasticity of the material is 28 GPa, determine...
uestion 2 5 points Save Answe A cylindrical bar of steel, 15 mm in diameter, is...
uestion 2 5 points Save Answe A cylindrical bar of steel, 15 mm in diameter, is deformed elastically by an application of a tensile force along the bar's long axis. Determine the force that will produce an elastic decrease of 2 microns in the diameter. Consider the elastic modulus of steel to be 200 GPa and its Poisson's Ratio to be 0.30. 32,400 N -32,400 N 15,700 N -15,700 N
on 5 Consider a cylindrical specimen of some hypothetical metal alloy that has a diameter of...
on 5 Consider a cylindrical specimen of some hypothetical metal alloy that has a diameter of 10.0 mm. A tensile force of 1500 N produces an elastic reduction in diameter of 6.7 x 10 mm. Compute the elastic modulus of this alloy, given that Poisson's ratio is 0.35. Express the answer in GPa to three significant figures. 5.00 out Answer: 99.8 Lion
3) A tensile test is performed on a brass specimen 10 mm in diameter and a...
3) A tensile test is performed on a brass specimen 10 mm in diameter and a length of 50 mm. When the tensile load reaches 20 kN, the material elongates 0.122 mm. What is the brass' modulus of elasticity E?
A cylindrical bar of metal having a diameter of (4.726x10^0) mm and a length of (6.0264x10^2)...
A cylindrical bar of metal having a diameter of (4.726x10^0) mm and a length of (6.0264x10^2) mm is deformed elastically in tension with a force of (1.16x10^4) N. Given that the elastic modulus and Poisson's ratio of the metal are (1.3007x10^2) GPa and (3.3600x10^-1) , respectively, determine the change in diameter of the specimen (in mm). Indicate an increase in diameter with a positive number and a decrease with a negative number. As always use scientific notation in the form...
Problem #1 A cylindrical rod of copper (E 110 GPa) having a yield strength of 240...
Problem #1 A cylindrical rod of copper (E 110 GPa) having a yield strength of 240 MPa is to be subjected to a load of 6660 N. If the length of the rod is 380 mm, what must the diameter be to allow an elongation of 0.50 mm? A cylindrical specimen of some alloy 8 mm in diameter is stressed elastically in tension. A force of 15,700 N produces a reduction in the specimen diameter of 5 10-3 mm. Compute...
(20%) Question 6. The elastic modulus, yield strength and ultimate strength of a certain material afe...
(20%) Question 6. The elastic modulus, yield strength and ultimate strength of a certain material afe 110 GPa 2400 MPa and 265 MPal respectively. If a cylindrical bar of this material 380 mm long is subjected to a uniaxial tension test and its length is increased by an amount áf O.50 mm under a tensile load ót 6660 N.At the same time its diameter decreased by0,28 mm Calculate; a) The initial diameter of the bar, (8%) d b) Under an...
1.6 points) A tensile test specimen having a diameter of 10 mm and a gange length of 50 mm wa. tested to fracture. The stress-strain curve from the tension test is shown below. Labeling your points and showing the necessary steps, along with the corresponding calculations, find the following magnitudes: (a) Modulus of Elasticity, E = (b) Ultimate Strength = (e) Yield stress (0.2% offset method), (d) If the shear modulus of elasticity of the material is 28 GPa, determine...
uestion 2 5 points Save Answe A cylindrical bar of steel, 15 mm in diameter, is deformed elastically by an application of a tensile force along the bar's long axis. Determine the force that will produce an elastic decrease of 2 microns in the diameter. Consider the elastic modulus of steel to be 200 GPa and its Poisson's Ratio to be 0.30. 32,400 N -32,400 N 15,700 N -15,700 N
on 5 Consider a cylindrical specimen of some hypothetical metal alloy that has a diameter of 10.0 mm. A tensile force of 1500 N produces an elastic reduction in diameter of 6.7 x 10 mm. Compute the elastic modulus of this alloy, given that Poisson's ratio is 0.35. Express the answer in GPa to three significant figures. 5.00 out Answer: 99.8 Lion
3) A tensile test is performed on a brass specimen 10 mm in diameter and a length of 50 mm. When the tensile load reaches 20 kN, the material elongates 0.122 mm. What is the brass' modulus of elasticity E?
Problem #1 A cylindrical rod of copper (E 110 GPa) having a yield strength of 240 MPa is to be subjected to a load of 6660 N. If the length of the rod is 380 mm, what must the diameter be to allow an elongation of 0.50 mm? A cylindrical specimen of some alloy 8 mm in diameter is stressed elastically in tension. A force of 15,700 N produces a reduction in the specimen diameter of 5 10-3 mm. Compute...
(20%) Question 6. The elastic modulus, yield strength and ultimate strength of a certain material afe 110 GPa 2400 MPa and 265 MPal respectively. If a cylindrical bar of this material 380 mm long is subjected to a uniaxial tension test and its length is increased by an amount áf O.50 mm under a tensile load ót 6660 N.At the same time its diameter decreased by0,28 mm Calculate; a) The initial diameter of the bar, (8%) d b) Under an...
