A wooden box containing several objects slides down a ramp at a constant speed when the...

A wooden box containing several objects slides down a ramp at a constant speed when the ramp is inclined at 18°. The total mass of the box and its contents is 6.3 kg. A second box of equal mass slides down a different ramp at a constant speed. The second ramp is inclined at 26°. Compare the coefficients of friction of the two ramps. Show your work and/or explain your reasoning.

Please show work.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

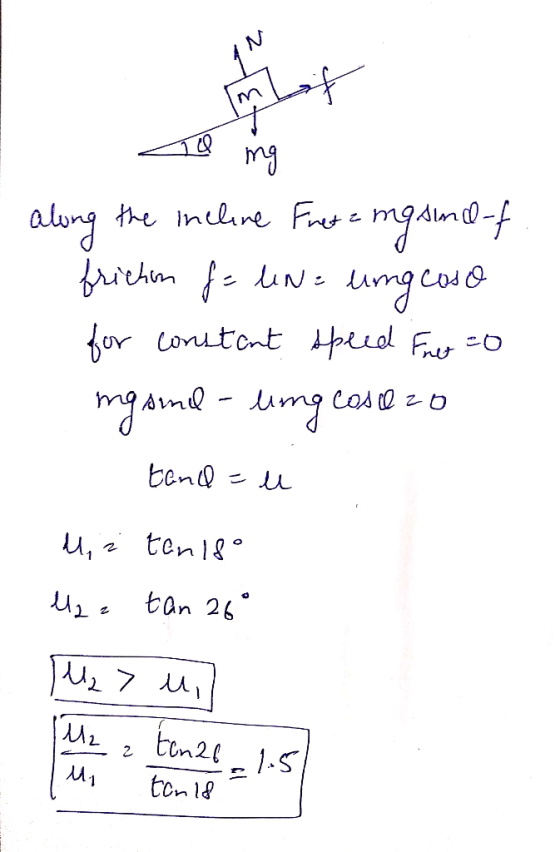

Answer #1

0 0
Add a comment
