Charge on Capacitor

In Fig. 25-31 a25 V battery is connected across capacitors of capacitances C1 = C6 = 3.5 μF and C3 = C5 = 2.5C2 = 2.5C4 = 5.5 μF. What are the
(a) potential V3 across and
(b) charge q3 (in C) on capacitor 3?

science   physics
1 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

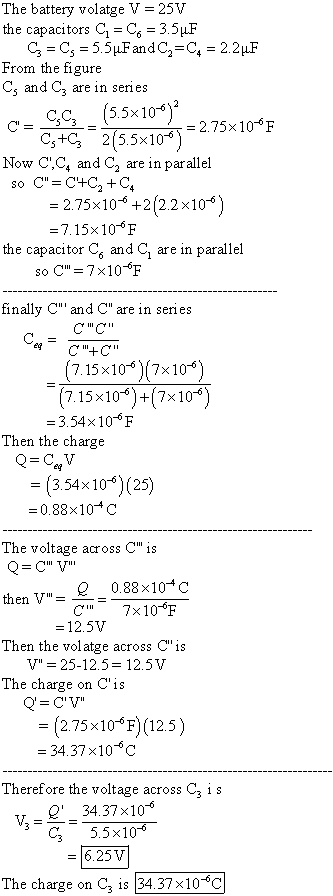

Answer #1
0 0
