generate the instantaneous equation for the power constant by the load with the following instantaneous electrical...

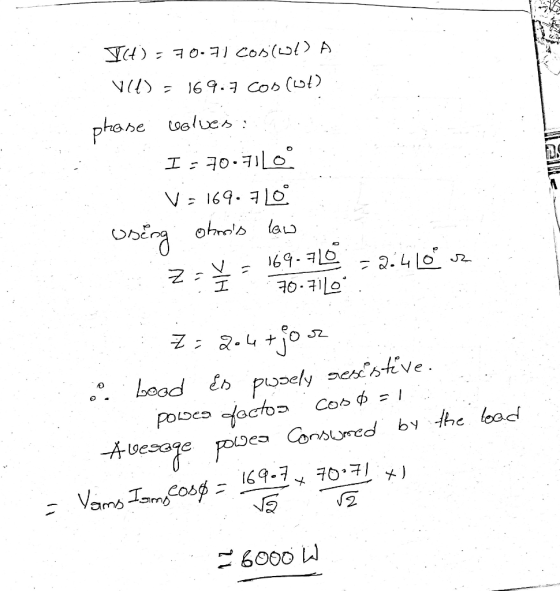

generate the instantaneous equation for the power constant by the load with the following instantaneous electrical characteristic:
v(t) = 70.71 cos(wt) A.
v(t) = 169.7 cos(wt) V.
calculate the average power consumed by the same load using the instantaneous power equation previously obtained, assume 60hz for the frequency.
what type of load is represented by these results? )i.e purely inductive, purely capacitive, purely resistive
