Scientists are trying to model lightning in a lab using 2 large round metal plates. The...
Scientists are trying to model lightning in a lab using 2 large round metal plates. The plates are arranged one over the other with both plates parallel to the ground and parallel to each other. The top plate has a charge of -20 C. It is 1.3 m above the second plate which has an equivalent amount of positive charge on it. Each plate has an area of 2.4 m2 .
-

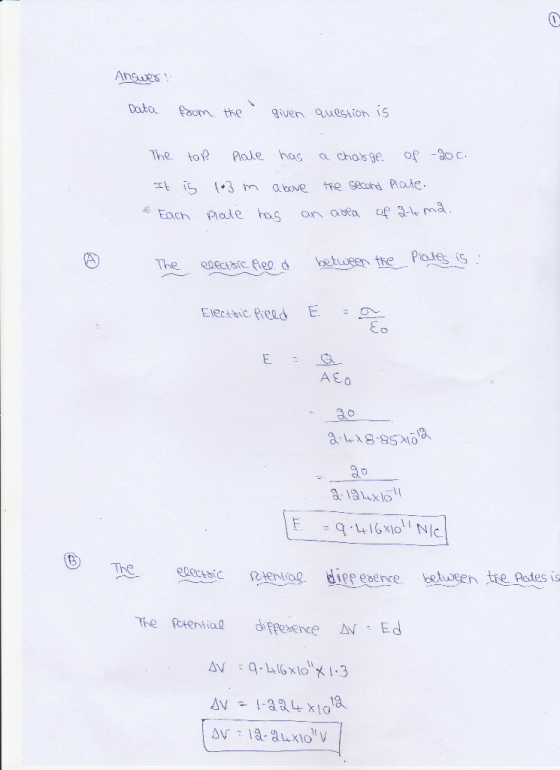

What is the electric field between the plates?
-
What is the electric potential difference between the plates?
-

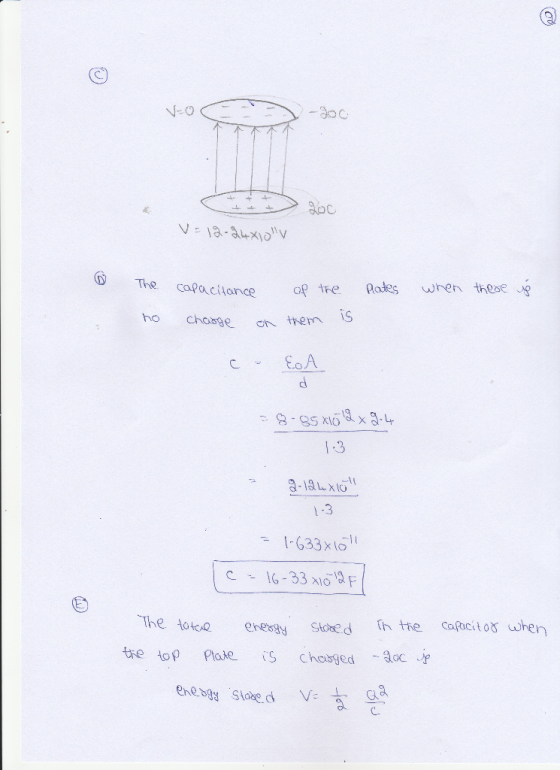

Sketch the plates, indicate the location and direction of the electric field, and the electric potential at each plate.
-
What is the capacitance of the plates when there is no charge on them?
-

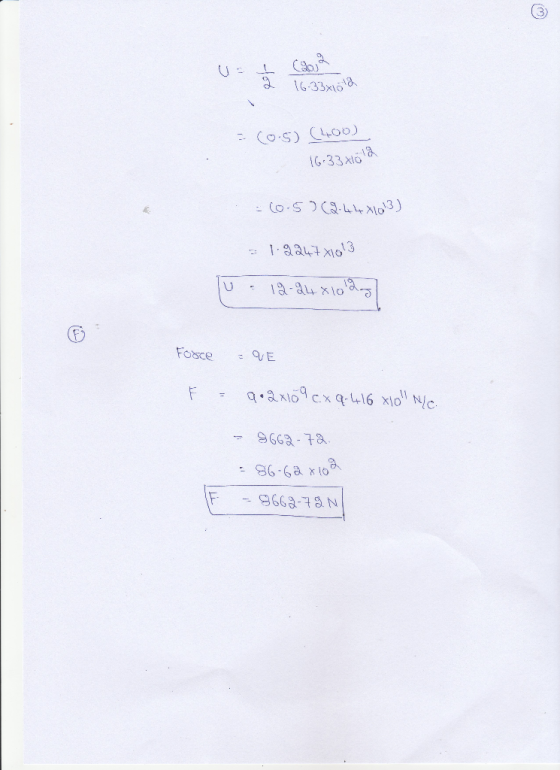

What is the total energy stored in the capacitor when the top plate is charged to -20 C?
-
What is the force (magnitude and direction) on a 10-gram ball with a charge of 9.2 nC when it is placed in the middle of the charged capacitor? Ignore gravity.
