Determine the number of radial and angular nodes for the following H-atom orbitals:

a) 2p_x
number of radial nodes= ?
number of angular nodes = ?

b) 2s
number of radial nodes = ?
number of angular nodes = ?

c) 3d_xz

number of radial nodes = ?
number of angular nodes = ?

d)6f_xyz

number of radial nodes = ?
number of angular nodes = ?

science chemistry

Answer 1

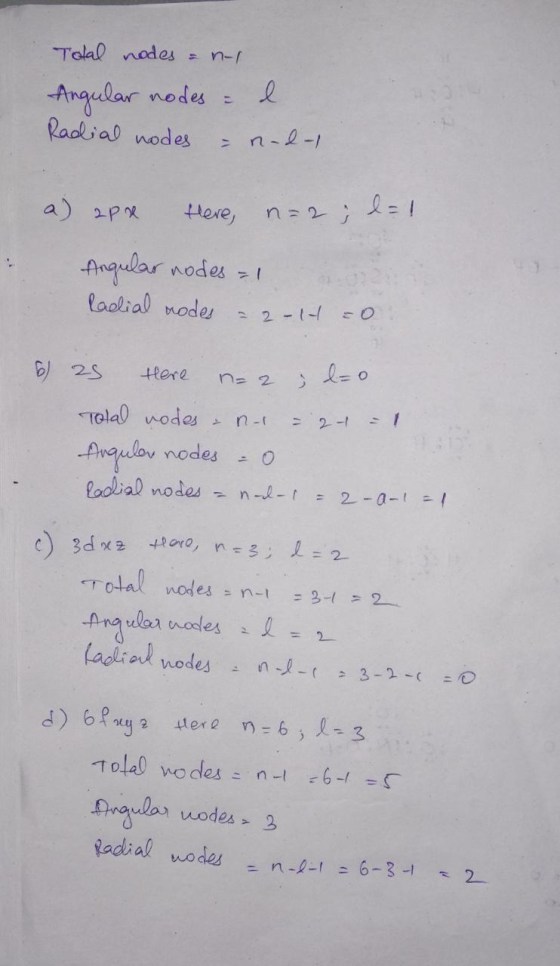

Answer #1

Answer 2
