Red light of wavelength 633 nm from a helium-neon laser passes through a slit 0.390 mm...
Red light of wavelength 633 nm from a helium-neon laser passes through a slit 0.390 mm wide. The diffraction pattern is observed on a screen 3.10 m away. Define the width of a bright fringe as the distance between the minima on either side.
What is the width of the central bright fringe?(m)
What is the width of the first bright fringe on either side of the central one?

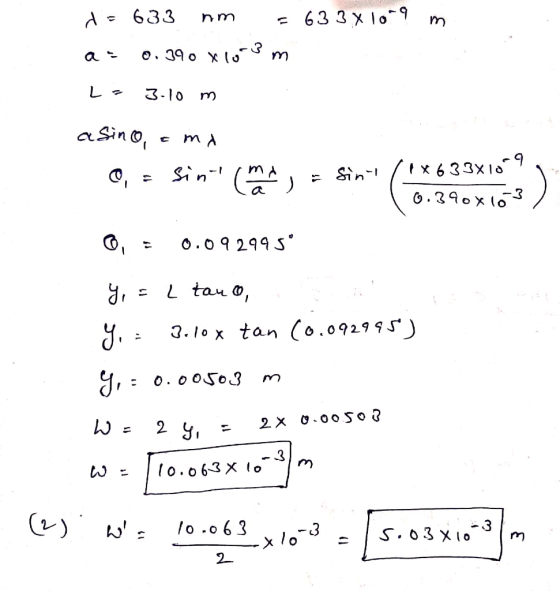

Homework Answers
Add Answer to:
Red light of wavelength 633 nm from a helium-neon laser passes
through a slit 0.390 mm...
Red light of wavelength 633 nm from a helium-neon laser passes through a slit 0.360 mm...
Red light of wavelength 633 nm from a helium-neon laser passes through a slit 0.360 mm wide. The diffraction pattern is observed on a screen 3.00 m away. Define the width of a bright fringe as the distance between the minima on either side. A) What is the width of the central bright fringe? B) What is the width of the first bright fringe on either side of the central one?
Red light of wavelength 633 nm from a helium-neon laser passes through a slit 0.340 mm...
Red light of wavelength 633 nm from a helium-neon laser passes through a slit 0.340 mm wide. The diffraction pattern is observed on a screen 2.95 m away. Define the width of a bright fringe as the distance between the minima on either side. A) What is the width of the central bright fringe? in m B) What is the width of the first bright fringe on either side of the central one? in m
Red light of wavelength 633 nm from a helium-neon laser passes through a slit 0.405 mm...
Red light of wavelength 633 nm from a helium-neon laser passes through a slit 0.405 mm wide. The diffraction pattern is observed on a screen 3.30 m away. Define the width of a bright fringe as the distance between the minima on either side. (a) What is the width of the central bright fringe? mm (b) What is the width of the first bright fringe on either side of the central one? mm
Experiment 3 1. Student passes 633 nm laser light through a narrow slit and observe the...
Experiment 3 1. Student passes 633 nm laser light through a narrow slit and observe the diffraction pattern on a screen 7.00 m away. The distance on the screen between the centers of the first minima on either side of the central bright fringe is 35.0 mm. (a) How wide is the slit? (b) The intensity at the center of the pattern is lo. What is the intensity at a point on the screen 3.80 mm from the center of...
A helium-neon laser (λ = 633 nm) illuminates a single slit and is observed on a...
A helium-neon laser (λ = 633 nm) illuminates a single slit and is observed on a screen 1.50 m behind the slit. The distance between the first and second minima in the diffraction pattern is 3.75 mm.What is the width (in mm) of the slit?
A helium-neon laser (λ = 633 nm) illuminates a single slit and is observed on a...
A helium-neon laser (λ = 633 nm) illuminates a single slit and is observed on a screen 1.60 m behind the slit. The distance between the first and second minima in the diffraction pattern is 4.15 mm . What is the width (in mm) of the slit?
A helium-neon laser (λ = 633 nm) illuminates a single slit and is observed on a...
A helium-neon laser (λ = 633 nm) illuminates a single slit and is observed on a screen 1.30 m behind the slit. The distance between the first and second minima in the diffraction pattern is 3.95 mm .What is the width (in mm) of the slit?
A helium-neon laser (λ = 633 nm) illuminates a single slit and is observed on a...
A helium-neon laser (λ = 633 nm) illuminates a single slit and is observed on a screen 1.60 m behind the slit. The distance between the first and second minima in the diffraction pattern is 3.65 mm. What is the width (in mm) of the slit?
Coherent light of wavelength 633 nm from a Helium Neon laser falls on a double slit...
Coherent light of wavelength 633 nm from a Helium Neon laser falls on a double slit with a slit separation of 0.103 mm. An interference pattern is produced on the screen 2.56 m away from the slits. a) how far from the central maximum is the third interference maximum? b) what about the third interference minimum?
Light from a helium-neon laser (λ = 632.8 nm) passes through a single slit. The angle...
Light from a helium-neon laser (λ = 632.8 nm) passes through a single slit. The angle to the second-order dark fringe (m = 2) of the diffraction pattern is 19.5 ∘. What is the width of the slit?
Experiment 3 1. Student passes 633 nm laser light through a narrow slit and observe the diffraction pattern on a screen 7.00 m away. The distance on the screen between the centers of the first minima on either side of the central bright fringe is 35.0 mm. (a) How wide is the slit? (b) The intensity at the center of the pattern is lo. What is the intensity at a point on the screen 3.80 mm from the center of...
