what is the head loss across a 1 1/2-in-wide open gate valve when oil (sg=.90) flows...
what is the head loss across a 1 1/2-in-wide open gate valve when oil (sg=.90) flows through it at a rate 100 gpm?

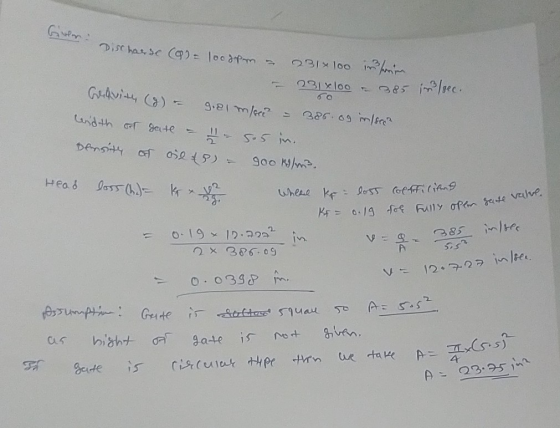

Answer should be .97ft- need help getting here
Homework Answers
Add Answer to:
what is the head loss across a 1 1/2-in-wide open gate valve
when oil (sg=.90) flows...
Part A Head loss A gate valve is being used as a shut-off valve in a...
Part A Head loss A gate valve is being used as a shut-off valve in a pipe system. When the valve is fully open, the flow through the 9-cm diameter pipe is 40 L/min. What is the head loss at the gate valve? One iter is 0.001 cubic meters. Express your answer in m to three significant figures. View Available Hint(s) vec Submit Request Answer
2. Water flows at a rate of 60 L/s from a main reservoir to a subsidiary...
2. Water flows at a rate of 60 L/s from a main reservoir to a subsidiary through a 600 m long, 185 mm diameter asphalted cast iron pipe as shown in the figure. The pipeline contains a gate valve, a globe valve and 4 standard 90° elbows. The entrance and exit are square edged, and all fittings are screwed ends, determine, You need Kinematic viscosity of water, 1 x 10-6 m/s2 (a) The friction head loss in the pipe, (b)...
For the system in question 2 what is the (a) power loss (HP) across the relief...
For the system in question 2 what is the (a) power loss (HP) across the relief valve assuming that the relief valve allows full pump flow of 15 GPM through it. (b)An unloading valve is used instead of a pressure relief valve for directing the flow to the tank at a pump discharge pressure of 30psi. What is the power saving obtained when an unloading valve is used instead of a relief valve from question A in directing the pump...
A pump transports water from Tank 1 to Tank 2 through a constant-diameter piping system as...
A pump transports water from Tank 1 to Tank 2 through a constant-diameter piping system as shown below (not to scale). The flow rate is controlled by two gate valves, the gate valve I controls the main pipeline, while the gate valve II controls the loop line from T-joint A to T-joint B. All pipes are galvanized steel pipe of diameter D = 4 in. It has a total length of Li2= 620 ft from tank 1 to tank 2....
A 2.1 cm diameter, 19 meters long pipe has 3 90° regular, threaded elbows, 2 45°...
A 2.1 cm diameter, 19 meters long pipe has 3 90° regular, threaded elbows, 2 45° long- radius, flanged elbows, 10 unions, 1 ball valve(s), fully open and 1 gate valve(s) half open. Water flows in the pipe at a rate of 1.7 m3/hr. Calculate the total minor loss coefficient, KL for the pipe. Keep two decimal places in your answer
A turbo pump transfers water from tank 1 to tank to tank 2 as shown in...
A turbo pump transfers water from tank 1 to tank to tank 2 as
shown in the picture below. The diameter of the piping system is D=
4in and the total length of pipes is L=620 ft. the elevation
difference is Z1-Z2= 30ft. Use the chart for KL values.
a) determine the flow rate (Q)
b) power of the pump in HP
Note that you can write out both mass balance equation and energy equation of the head form for...
A turbo pump transfers water from tank 1 to tank to tank 2 as shown in...
A turbo pump transfers water from tank 1 to tank to tank 2 as
shown in the picture below. The diameter of the piping system is D=
4in and the total length of pipes is L=620 ft. the elevation
difference is Z1-Z2= 30ft. Use the chart for KL values.
a) determine the flow rate (Q)
b) power of the pump in HP
Note that you can write out both mass balance equation and energy equation of the head form for...
Notre Dame University Faculty of Engineering Mechanical Engineering Dep Water flows through cast iron pipes and between the two tanks shown in Figure P4. The free sharp edge entrance. Bd by a dis...
Notre Dame University Faculty of Engineering Mechanical Engineering Dep Water flows through cast iron pipes and between the two tanks shown in Figure P4. The free sharp edge entrance. Bd by a distance of 8 m. The water leaves Tank 1 through a contains a regular 90 threaded elbow and two unknown a regular 90° threaded elbow and a fully Branch pipeline 1 contains a regular 90 valves (valve 1 and valve 2). Branch pipeline 2 contains open gate valve....
Notre Dame University Faculty of Engineering Mechanical Engineering Dep Water flows through cast iron pipes and between the two tanks shown in Figure P4. The free sharp edge entrance. Bd by a dis...
Notre Dame University Faculty of Engineering Mechanical Engineering Dep Water flows through cast iron pipes and between the two tanks shown in Figure P4. The free sharp edge entrance. Bd by a distance of 8 m. The water leaves Tank 1 through a contains a regular 90 threaded elbow and two unknown a regular 90° threaded elbow and a fully Branch pipeline 1 contains a regular 90 valves (valve 1 and valve 2). Branch pipeline 2 contains open gate valve....
Notre Dame University Faculty of Engineering Mechanical Engineering Dep Water flows through cast iron pipes and between the two tanks shown in Figure P4. The free sharp edge entrance. Bd by a dis...
Notre Dame University Faculty of Engineering Mechanical Engineering Dep Water flows through cast iron pipes and between the two tanks shown in Figure P4. The free sharp edge entrance. Bd by a distance of 8 m. The water leaves Tank 1 through a contains a regular 90 threaded elbow and two unknown a regular 90° threaded elbow and a fully Branch pipeline 1 contains a regular 90 valves (valve 1 and valve 2). Branch pipeline 2 contains open gate valve....
Part A Head loss A gate valve is being used as a shut-off valve in a pipe system. When the valve is fully open, the flow through the 9-cm diameter pipe is 40 L/min. What is the head loss at the gate valve? One iter is 0.001 cubic meters. Express your answer in m to three significant figures. View Available Hint(s) vec Submit Request Answer
2. Water flows at a rate of 60 L/s from a main reservoir to a subsidiary through a 600 m long, 185 mm diameter asphalted cast iron pipe as shown in the figure. The pipeline contains a gate valve, a globe valve and 4 standard 90° elbows. The entrance and exit are square edged, and all fittings are screwed ends, determine, You need Kinematic viscosity of water, 1 x 10-6 m/s2 (a) The friction head loss in the pipe, (b)...
A pump transports water from Tank 1 to Tank 2 through a constant-diameter piping system as shown below (not to scale). The flow rate is controlled by two gate valves, the gate valve I controls the main pipeline, while the gate valve II controls the loop line from T-joint A to T-joint B. All pipes are galvanized steel pipe of diameter D = 4 in. It has a total length of Li2= 620 ft from tank 1 to tank 2....
A 2.1 cm diameter, 19 meters long pipe has 3 90° regular, threaded elbows, 2 45° long- radius, flanged elbows, 10 unions, 1 ball valve(s), fully open and 1 gate valve(s) half open. Water flows in the pipe at a rate of 1.7 m3/hr. Calculate the total minor loss coefficient, KL for the pipe. Keep two decimal places in your answer
A turbo pump transfers water from tank 1 to tank to tank 2 as
shown in the picture below. The diameter of the piping system is D=
4in and the total length of pipes is L=620 ft. the elevation
difference is Z1-Z2= 30ft. Use the chart for KL values.
a) determine the flow rate (Q)
b) power of the pump in HP
Note that you can write out both mass balance equation and energy equation of the head form for...
A turbo pump transfers water from tank 1 to tank to tank 2 as
shown in the picture below. The diameter of the piping system is D=
4in and the total length of pipes is L=620 ft. the elevation
difference is Z1-Z2= 30ft. Use the chart for KL values.
a) determine the flow rate (Q)
b) power of the pump in HP
Note that you can write out both mass balance equation and energy equation of the head form for...
Notre Dame University Faculty of Engineering Mechanical Engineering Dep Water flows through cast iron pipes and between the two tanks shown in Figure P4. The free sharp edge entrance. Bd by a distance of 8 m. The water leaves Tank 1 through a contains a regular 90 threaded elbow and two unknown a regular 90° threaded elbow and a fully Branch pipeline 1 contains a regular 90 valves (valve 1 and valve 2). Branch pipeline 2 contains open gate valve....
Notre Dame University Faculty of Engineering Mechanical Engineering Dep Water flows through cast iron pipes and between the two tanks shown in Figure P4. The free sharp edge entrance. Bd by a distance of 8 m. The water leaves Tank 1 through a contains a regular 90 threaded elbow and two unknown a regular 90° threaded elbow and a fully Branch pipeline 1 contains a regular 90 valves (valve 1 and valve 2). Branch pipeline 2 contains open gate valve....
Notre Dame University Faculty of Engineering Mechanical Engineering Dep Water flows through cast iron pipes and between the two tanks shown in Figure P4. The free sharp edge entrance. Bd by a distance of 8 m. The water leaves Tank 1 through a contains a regular 90 threaded elbow and two unknown a regular 90° threaded elbow and a fully Branch pipeline 1 contains a regular 90 valves (valve 1 and valve 2). Branch pipeline 2 contains open gate valve....
