A 133 turn circular coil of radius 2.07 cm is immersed in a uniform magnetic field...

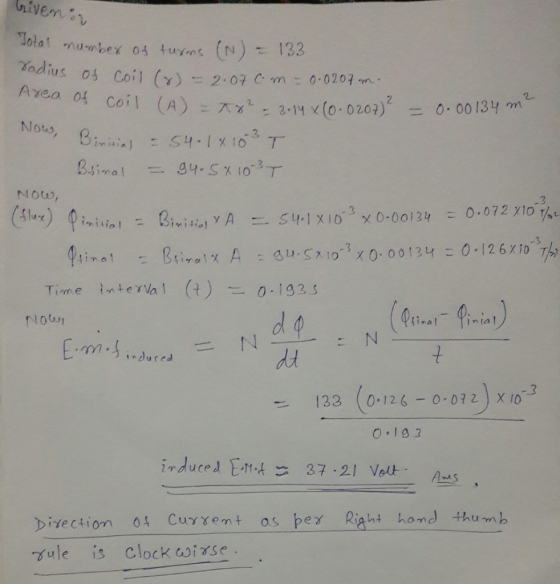

A 133 turn circular coil of radius 2.07 cm is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. Over an interval of 0.193 s, the magnetic field strength increases from 54.1 mT to 94.5 mT. Find the magnitude of the average emf Eavg induced in the coil during this time interval, in millivolts.
Eavg = ??? mV
What is the direction of the current if the axial component of the field points away from the viewer?
Counterclockwise or Clockwise?
Homework Answers
Add Answer to:
A 133 turn circular coil of radius 2.07 cm is immersed in a
uniform magnetic field...
A 141 turn circular coil of radius 2.61 cm is immersed in a uniform magnetic field...
A 141 turn circular coil of radius 2.61 cm is immersed in a
uniform magnetic field that is perpendicular to the plane of the
coil. Over an interval of 0.177 s , the magnetic field strength
increases from 53.1 mT to 96.9 mT . Find the magnitude of the
average emf avg induced in the coil during this time interval, in
millivolts.
A 141 turn circular coil of radius 2.61 cm is immersed in a uniform magnetic field that is...
A 123 turn circular coil of radius 2.47 cm is immersed in a uniform magnetic field...
A 123 turn circular coil of radius 2.47 cm is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. Over an interval of 0.137 s, the magnetic field strength increases from 50.1 mT to 97.9 mT. Find the magnitude of the average emf Eavg induced in the coil during this time interval, in millivolts. Eavg = 84.9 mV Incorrect
A 129 turn circular coil of radius 2.49cm is immersed in a uniform magnetic field that...
A 129 turn circular coil of radius 2.49cm is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. Over an interval of 0.141 s, the magnetic field strength increases from 50.3 mT to 98.5 mT. Find the magnitude of the average emf Eavg induced in the coil during this time interval, in millivolts. Eavg= mV
1) A 179‑turn circular coil of radius 3.55 cm and negligible resistance is immersed in a...
1) A 179‑turn circular coil of radius 3.55 cm and negligible resistance is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. The coil is connected to a 13.7 Ω resistor to create a closed circuit. During a time interval of 0.121 s, the magnetic field strength decreases uniformly from 0.643 T to zero. Find the energy, in millijoules, that is dissipated in the resistor during this time interval. energy: mJ 2) You decide...
A 115 turn circular coil of radius 2.69 cm is immersed in a uniform magnetic field...
A 115 turn circular coil of radius 2.69 cm is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. Over an interval of 0.117 s, the magnetic field strength increases from 53.5 mT to 91.3 mT. Find the magnitude of the average emf Eave induced in the coil during this time interval, in millivolts.
A 123-turn circular coil of radius 2.35 cm is immersed in a uniform magnetic field that...
A 123-turn circular coil of radius 2.35 cm is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. During 0.197 s the magnetic field strength increases from 53.5 mT to 95.7 mT. Find the magnitude of the average EMF, in millivolts, that is induced in the coil during this time interval.
The component of the external magnetic field along the central axis of a 125-turn circular coil o...
The component of the external magnetic field along the central axis of a 125-turn circular coil of radius 26.0 cm decrsases from 2.40 T to 0.650 T in 3.50 s. If the resistance of the col is 9.000,what is the magnitude of the induced current in the coil? Number What is the direction of the current if the axial component of the field points away from the viewer? clockwise O counter-clockwise
The component of the external magnetic field along the...
A 155-turn circular coil of radius 3.99 cm and negligible resistance is immersed in a uniform...
A 155-turn circular coil of radius 3.99 cm and negligible resistance is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. The coil is connected to a 18.3 resistor to create a closed circuit. During a time interval of 0.145 s, the magnetic field strength decreases uniformly from 0.687 T to zero. Find the energy, in millioules, that is dissipated in the resistor during this time interval energy
A 123‑turn circular coil of radius 3.51 cm and negligible resistance is immersed in a uniform...
A 123‑turn circular coil of radius 3.51 cm and negligible resistance is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. The coil is connected to a 14.9 Ω resistor to create a closed circuit. During a time interval of 0.113 s, the magnetic field strength decreases uniformly from 0.601 T to zero. Find the energy, in millijoules, that is dissipated in the resistor during this time interval.
A 117‑turn circular coil of radius 3.47 cm and negligible resistance is immersed in a uniform...
A 117‑turn circular coil of radius 3.47 cm and negligible resistance is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. The coil is connected to a 17.3 Ω resistor to create a closed circuit. During a time interval of 0.155 s, the magnetic field strength decreases uniformly from 0.595 T to zero. Find the energy, in millijoules, that is dissipated in the resistor during this time interval.
A 141 turn circular coil of radius 2.61 cm is immersed in a
uniform magnetic field that is perpendicular to the plane of the
coil. Over an interval of 0.177 s , the magnetic field strength
increases from 53.1 mT to 96.9 mT . Find the magnitude of the
average emf avg induced in the coil during this time interval, in
millivolts.
A 141 turn circular coil of radius 2.61 cm is immersed in a uniform magnetic field that is...
A 123 turn circular coil of radius 2.47 cm is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. Over an interval of 0.137 s, the magnetic field strength increases from 50.1 mT to 97.9 mT. Find the magnitude of the average emf Eavg induced in the coil during this time interval, in millivolts. Eavg = 84.9 mV Incorrect
A 115 turn circular coil of radius 2.69 cm is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. Over an interval of 0.117 s, the magnetic field strength increases from 53.5 mT to 91.3 mT. Find the magnitude of the average emf Eave induced in the coil during this time interval, in millivolts.
The component of the external magnetic field along the central axis of a 125-turn circular coil of radius 26.0 cm decrsases from 2.40 T to 0.650 T in 3.50 s. If the resistance of the col is 9.000,what is the magnitude of the induced current in the coil? Number What is the direction of the current if the axial component of the field points away from the viewer? clockwise O counter-clockwise
The component of the external magnetic field along the...
A 155-turn circular coil of radius 3.99 cm and negligible resistance is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. The coil is connected to a 18.3 resistor to create a closed circuit. During a time interval of 0.145 s, the magnetic field strength decreases uniformly from 0.687 T to zero. Find the energy, in millioules, that is dissipated in the resistor during this time interval energy
