2. An Ericsson cycle uses helium as the working fluid. The isothermal compression process begins at...

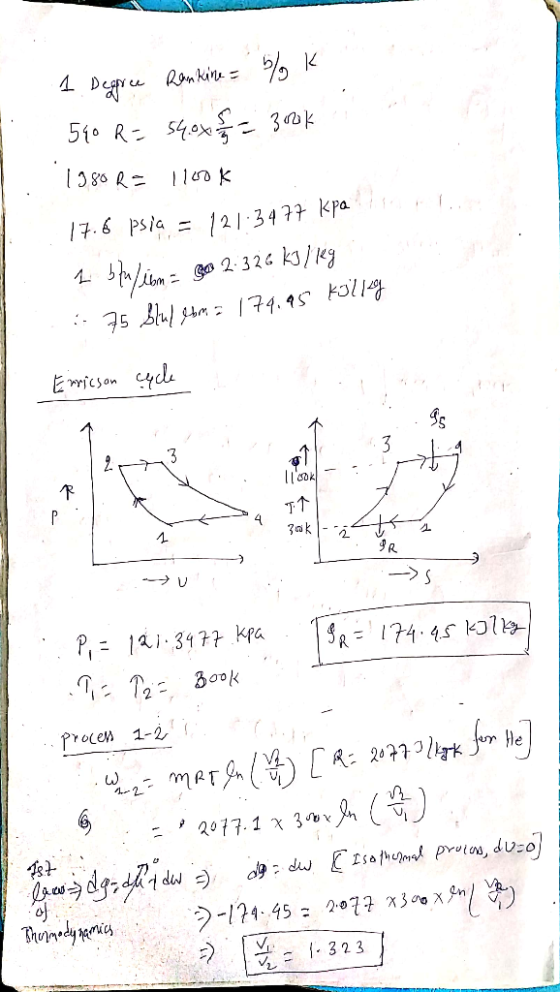

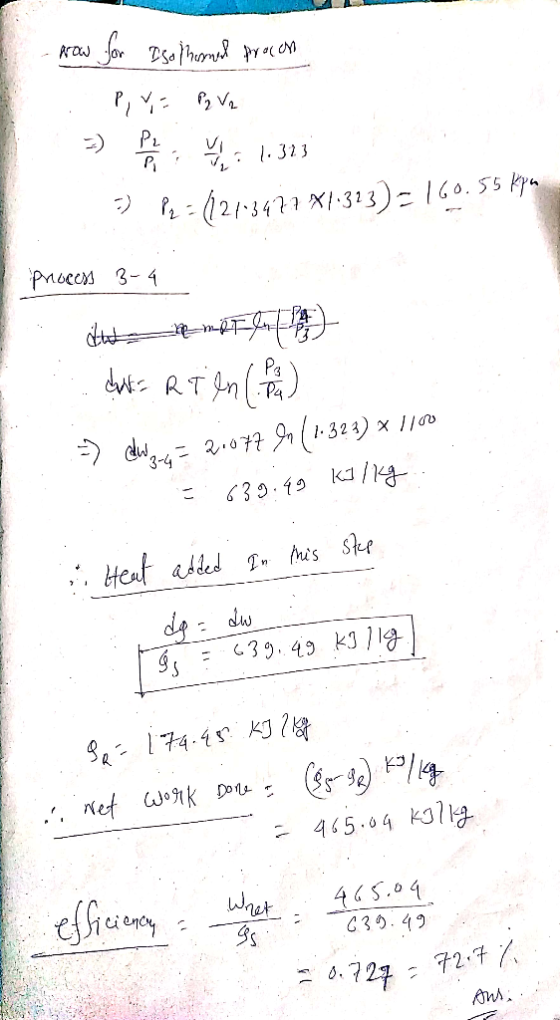

2. An Ericsson cycle uses helium as the working fluid. The
isothermal compression process begins at 540 R and 17.6 psia and 75
Btu/lbm of heat rejected. Heat addition occurs at 1980 R. Determine
(a) the cycle maximum pressure; (b) the net work produced per unit
mass; (c) the thermal efficiency.
Homework Answers
Add Answer to:
2. An Ericsson cycle uses helium as the working fluid. The
isothermal compression process begins at...
