Question

A 15-kg block slides on a frictionless table. It is connected by a massless string passing...

A 15-kg block slides on a frictionless table. It is connected by a massless string passing over a small frictionless pulley to a hanging 10-kg mass, as shown in the figure. The 15-kg mass is initially at rest. What will its acceleration be after it is released?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

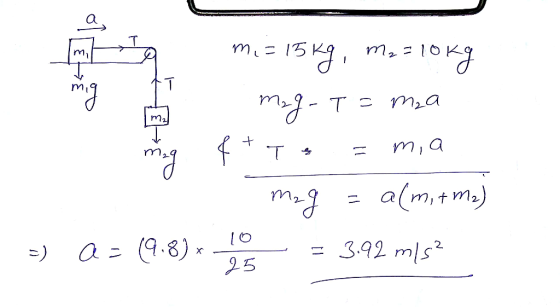

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A 15-kg block slides on a frictionless table. It is connected by a massless string passing...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Determine the acceleration due to gravity for low Earth orbit (LEO) given: MEarth = 6.00 x...

    Determine the acceleration due to gravity for low Earth orbit (LEO) given: MEarth = 6.00 x 1024 kg, rEarth = 6.40 x 106 m, G = 6.67 x 10-11m3kg-1s-2, and LEO is 400 km above Earth's surface. How fast are objects in low Earth orbit (LEO) traveling given: MEarth = 6.00 x 1024 kg, rEarth = 6.40 x 106 m, G = 6.67 x 10-11 m3kg-1s-2, and LEO is 400 km above Earth's surface. Assume objects orbit with uniform circular...

  • A mass m1 = 3.4 kg rests on a frictionless table and connected by a massless...

    A mass m1 = 3.4 kg rests on a frictionless table and connected by a massless string over a massless pulley to another mass m2 = 4.7 kg which hangs freely from the string. When released, the hanging mass falls a distance d = 0.7 m. How much work is done by the normal force on m1? What is the final speed of the two blocks? What is the tension in the string as the block falls? The work done...

  • Two blocks are connected by a massless rope slung over a massless, frictionless pulley at the...

    Two blocks are connected by a massless rope slung over a massless, frictionless pulley at the edge of a table. One block moves horizontally along the tabletop; it has a mass of 8.00 kg. The other block is freely-hanging off the edge of the pulley; it has a mass of 6.00 kg. Initially, both blocks have a speed of 0.900 m/s; the blocks come to rest after they have moved 2.00 m. What is the coefficient of kinetic friction between...

  • A 20 kg block with a pulley attached slides along a frictionless ledge. It is connected...

    A 20 kg block with a pulley attached slides along a frictionless ledge. It is connected by a massless string to a 5 0 kg block via lire arrangement shown in Figure. draw complete free body diagrams for the masses and Find the acceleration of each block and the tension in be connecting string.

  •  A mass m1 = 4.3 kg rests on a frictionless table and connected by a massless...

     A mass m1 = 4.3 kg rests on a frictionless table and connected by a massless string over a massless pulley to another mass m2 = 3.4 kg which hangs freely from the string. When released, the hanging mass falls a distance d = 0.87 m. 1-How much work is done by gravity on the two block system? 2) How much work is done by the normal force on m1? 3) What is the final speed of the two blocks? 4)...

  • In the figure, two 6.20 kg blocks are connected by a massless string over a pulley...

    In the figure, two 6.20 kg blocks are connected by a massless string over a pulley of radius 2.40 cm and rotational inertia of 7.40 Times 10^-1 kg m^2. The string does not slip on the pulley; and there is no friction between the table and the sliding block; the pulley's axis is frictionless. When this system is released from rest the pulley turns through 1.30 rad in 91.0 ms and the acceleration of the blocks is constant. What are...

  • Question 1 10 pts Two blocks A and B are connected by a massless string over...

    Question 1 10 pts Two blocks A and B are connected by a massless string over a massless, frictionless pulley, as shown in the figure below. Both blocks are being held in place to prevent motion. Block A has a mass of 3.0 kg. and block B a mass of 10.0 kg. Block A is on top of a horizontal table, with a coefficient of kinetic friction of 0.25. If block B is released and the system is allowed to...

  • A 4.0 kg box is on a frictionless 35° slope and is connected via a massless...

    A 4.0 kg box is on a frictionless 35° slope and is connected via a massless string over a massless, frictionless pulley to a hanging 2.0 kg weight. What is the acceleration (magnitude and direction) of the 2.0 kg block as the blocks are moving?

  • A 18 kg block with a pulley attached slides along a frictionless surface. It is connected...

    A 18 kg block with a pulley attached slides along a frictionless surface. It is connected by a massless string to a 5.5 kg block via the arrangement shown. The acceleration of gravity is 9.81 m/s 2 . Find the horizontal distance the 18kg block moves when the 5.5 kg block descends a distance of 11.4 cm. The pulleys are massless and frictionless. Answer in units of cm. Find the acceleration of the 18 kg block. Answer in units of...

  • In the figure, two 5.60 kg blocks are connected by a massless string over a pulley...

    In the figure, two 5.60 kg blocks are connected by a massless string over a pulley of radius 2.20 cm and rotational inertia 7.40 times 10^-4 kg-m^2. The string does not slip on the pulley; it is not known whether there is friction between the table and the sliding block; the pulley's axis is frictionless. When this system is released from rest, the pulley turns through 1.00 rad in 179 ms and the acceleration of the blocks is constant. What...
