Propane vapor enters a throttling valveat 3.45 kg/s, 1.4 MPa, 70 °C, and leaves at 0.4...

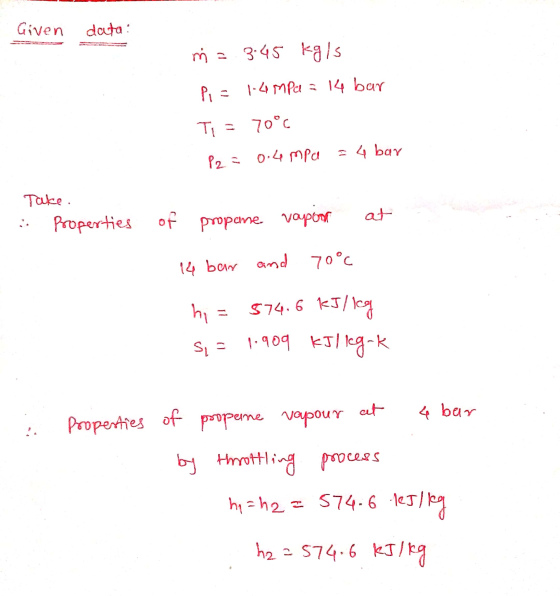

Propane vapor enters a throttling valveat 3.45 kg/s, 1.4 MPa, 70 °C, and leaves at 0.4 MPa. Determine:

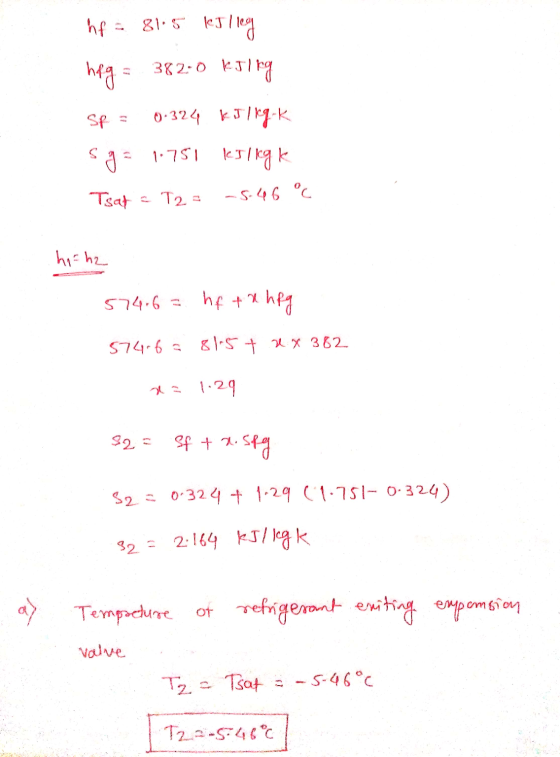

a)The temperature of the refrigerant exiting the expansion valve in °C, and

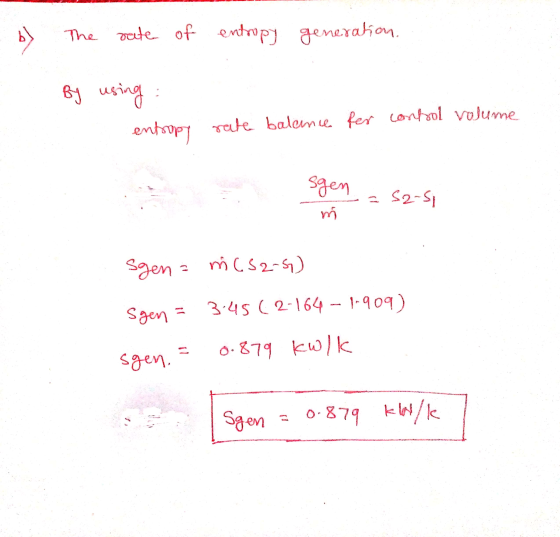

b)The rate of entropy generation in the valve in kW/K
Homework Answers
Add Answer to:
Propane vapor enters a throttling valveat 3.45 kg/s, 1.4 MPa, 70
°C, and leaves at 0.4...
