Question

Hi, im trying to program a simple iteration in matlab to solve a bubbel point temparture. I tried to do a loop so i dont have to do all calculation separatly. Sadly i am not a god programmer so i need some help with that! What i want to achive is that for every T from 87 to 97 i want matlab to compute P1 and P2. The P1 and P2 are then used to calculate y1 which then is used to calculate y2. I want matlab to do this until it findes a value of T such that abs(y1+y2)<tol where tol is some smal number. After that i want matlab to spit out the value of y1 and T that generated the answer. I tried do to it whit a while loop but i dont work.

A=8.0842;
B=1581.5;
a=7.9668;
b=1668.21;
C=225.10;
c=228;
x1=0.3;
x2=0.7;
P=760;
T=linspace(87,0.2,97);
P1=exp(A-(B./(C+T)));
P2=exp(a-(b./(c+T)));
y1=P1.*x1./P;
y2=(1-y1);
tol=10^-3;
while abs(y1-y2)>tol
if (abs(y2-y1))<tol
break

end
end
y1

T

Answer 1

`Hey,

Note: Brother in case of any queries, just comment in box I would be very happy to assist all your queries

Note: Brother according to the formula. it never gets below tolerance since y1 is very close to 0.9 every time so y2 is very close to 0.1 everytime.

clear all
clc
A=8.0842;
B=1581.5;
a=7.9668;
b=1668.21;
C=225.10;
c=228;
x1=0.3;
x2=0.7;
P=760;
for T=87:0.01:97
P1=exp(A-(B./(C+T)));
P2=exp(a-(b./(c+T)));
y1=P1.*x1./P;
y2=(1-y1);
tol=10^-3;
if (abs(y2-y1))<tol
break
end
end

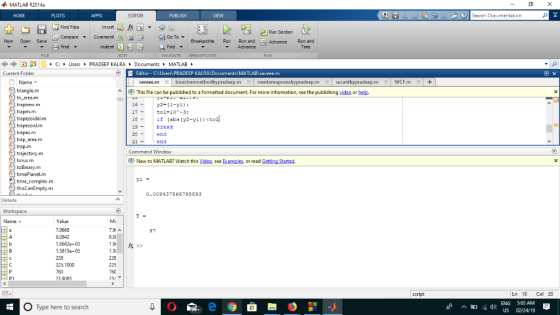

y1

T

Kindly revert for any queries

Thanks.
