Need help with the physics problem below! Please show which equations you use so I can...
Need help with the physics problem below! Please show which equations you use so I can better understand the concepts.

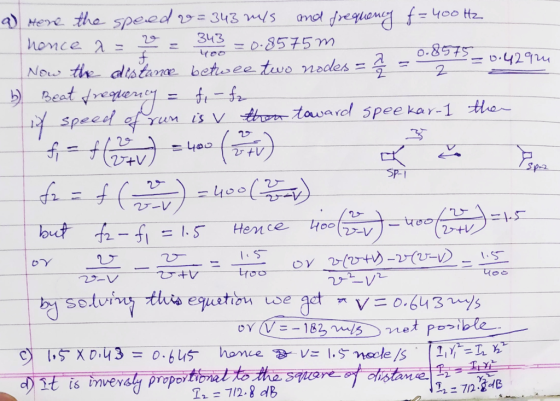

Two speakers are connected to a 400 Hz oscillator. One speaker is placed at one end of the street, and the other is placed at the other end of the street. You are standing in the middle of the street, right between the two speakers.(Speed of sound is 343 m/s)
(a) What is the spacing between the nodes in the standing wave created by the speakers?
(b) How fast do you need to run toward one of the speakers in order to hear the Doppler-shifted sounds from the two speakers beat at a rate of 1.5 beats per second?
(c) Show that the answer you found in (b) is precisely the speed you need to run in order to pass 1.5 nodes per second.
(d) If you measure the sound level from one speaker at a distance of 30 m from the speaker and find it to be 79.2 dB, what sound level will you measure when you are 10 meters from it?
Thank You!
Homework Answers
Add Answer to:
Need help with the physics problem below! Please show which
equations you use so I can...
You are standing on one side of the street, and you hear sound coming from two...
You are standing on one side of the street, and you hear sound coming from two different speakers. One speaker is 16m down the street on the same side of you. The other speaker is directly across the street from the first speaker. The street is 12m wide. Both speakers are broadcasting sound at 85Hz. (Assume the speed of sound is 340m/s). Write down the equations for constructive and destructive interference. What variables are you going to need to solve...
I know how to do the first 3 parts. Need last 3 parts of the question....
I know how to do the first 3 parts. Need last 3 parts of the question. Posted whole thing for reference. Thanks! a) A 1 meter long guitar string of linear mass density 2g/m3 is put under tension until it resonates with a fundamental frequency of 440 Hz. Determine the tension that produces this fundamental frequency. Also determine the other of the first four harmonic frequencies and draw diagrams illustrating what each of these oscillations looks like on the string....
Two identical loudspeakers are driven in phase by a common oscillator at 790 Hz and face...
Two identical loudspeakers are driven in phase by a common oscillator at 790 Hz and face each other at a distance of 1.20 m. Locate the points along the line joining the two speakers where relative minima of sound pressure amplitude would be expected. (Take the speed of sound in air to be 343 m/s. Choose one speaker as the origin and give your answers in order of increasing distance from this speaker. Enter 'none' in all unused answer boxes.)...
Chapter 16, Problem 074 A source emits sound uniformly in all directions. A radial line is...
Chapter 16, Problem 074 A source emits sound uniformly in all directions. A radial line is drawn from this source. On this line, determine the radial positions of two points, 0.990 m apart, such tnat thity level at one point is 2.09 dB greater than that at the other. (a) What is the smaller radial position (in m)? (b) What is the larger radial position (in Sound source Chapter 17, Problem 07 The drawing shows a loudspeaker A and point...
need help with this physics question! the more detail the better and thank you! One way...
need help with this physics question! the more detail the better
and thank you!
One way of measuring the frequency of a sound is to make measurements of the interference pattern that is created when the sound is produced by two sources. You find that for two sources, the sound is loudest when you are equidistant from the sources. You then determine that there is a minimum in intensity when you are 2.3 m farther from one source than the...
Hey there! i need help with a few questions from my Physics B class. Thank you...
Hey there! i need help with a few questions from my Physics B class. Thank you <3 1. The graph illustrates a standing wave along a string that spans x = -2 to x = 2. The string is held stationary at both ends. Which harmonic is shown? fourth second first third ---------------------------- 2. The graph illustrates one moment in the propagation of a transverse wave down a rope. What is the wavelength of the wave? 12 cm 8 cm...
I am completing a study guide, and was able to complete the first 2 pages. Any...
I am completing a study guide, and was able to complete the
first 2 pages. Any help on these questions?
You are driving south on a road at a speed of 21.3 m/s and you hear a siren from a police car at a frequency of 915 Hz, as the police car approaches you while driving north. If the police car is going at a speed of 32.4 m/s, and the speed of sound is 343 m/s, what frequency would...
I am completing a study guide for the next section of class because I am trying...
I am completing a study guide for the next section of class
because I am trying to get ahead. Any suggestions?
A wave whose displacement velocity is either in the same direction or opposite direction as the wave velocity describes which type of a wave? a. Transverse wave b. Mechanical wave c. Longitudinal wave d. Electromagnetic wave Which of the following are always one wavelength apart and are drawn as parallel lines? Plane waves b. Wave fronts c. Wave phase...
Please explain and show how to do the exercise (at the bottom), parts b and c....
Please explain and show how to do the exercise (at the bottom),
parts b and c. Explain what you are substituting in the Doppler
equations and why. Also please explain what signs you have to
use.
EXAMPLE 14.11 Sour Notes Goal Apply the beat frequency concept. Problem A certain piano string is supposed to vibrate ning, what beat frequency is observed by the assistant? at a frequency of 4.40 X 102 Hz. To check its frequency, Note: Assume all numbers...
Can you please explain all parts I meant to ask this question A block with a...
Can you please explain all parts
I meant to ask this question
A block with a speaker bolted to it is connected to a spring having spring constant k = 24.0 N/m and oscillates as shown in the figure below. The total mass of the block and speaker is 3.00 kg, and the amplitude of this unit's motion is 0.500 m. The speaker emits sound waves of frequency 500 Hz. www (a) Determine the highest frequencies heard by the person...
Chapter 16, Problem 074 A source emits sound uniformly in all directions. A radial line is drawn from this source. On this line, determine the radial positions of two points, 0.990 m apart, such tnat thity level at one point is 2.09 dB greater than that at the other. (a) What is the smaller radial position (in m)? (b) What is the larger radial position (in Sound source Chapter 17, Problem 07 The drawing shows a loudspeaker A and point...
need help with this physics question! the more detail the better
and thank you!
One way of measuring the frequency of a sound is to make measurements of the interference pattern that is created when the sound is produced by two sources. You find that for two sources, the sound is loudest when you are equidistant from the sources. You then determine that there is a minimum in intensity when you are 2.3 m farther from one source than the...
I am completing a study guide, and was able to complete the
first 2 pages. Any help on these questions?
You are driving south on a road at a speed of 21.3 m/s and you hear a siren from a police car at a frequency of 915 Hz, as the police car approaches you while driving north. If the police car is going at a speed of 32.4 m/s, and the speed of sound is 343 m/s, what frequency would...
I am completing a study guide for the next section of class
because I am trying to get ahead. Any suggestions?
A wave whose displacement velocity is either in the same direction or opposite direction as the wave velocity describes which type of a wave? a. Transverse wave b. Mechanical wave c. Longitudinal wave d. Electromagnetic wave Which of the following are always one wavelength apart and are drawn as parallel lines? Plane waves b. Wave fronts c. Wave phase...
Please explain and show how to do the exercise (at the bottom),
parts b and c. Explain what you are substituting in the Doppler
equations and why. Also please explain what signs you have to
use.
EXAMPLE 14.11 Sour Notes Goal Apply the beat frequency concept. Problem A certain piano string is supposed to vibrate ning, what beat frequency is observed by the assistant? at a frequency of 4.40 X 102 Hz. To check its frequency, Note: Assume all numbers...
Can you please explain all parts
I meant to ask this question
A block with a speaker bolted to it is connected to a spring having spring constant k = 24.0 N/m and oscillates as shown in the figure below. The total mass of the block and speaker is 3.00 kg, and the amplitude of this unit's motion is 0.500 m. The speaker emits sound waves of frequency 500 Hz. www (a) Determine the highest frequencies heard by the person...
