The heat flux through the walls of the channel is uniform,q. The flow regime is laminar....
-
The heat flux through the walls of the channel is uniform,q. The flow regime is laminar. The velocity and temperature profiles are fully developed. Derive the expression for the fully developed temperature profile, and show that the Nusselt number based on hydraulic diameter is Nu = 8.235.
Homework Answers

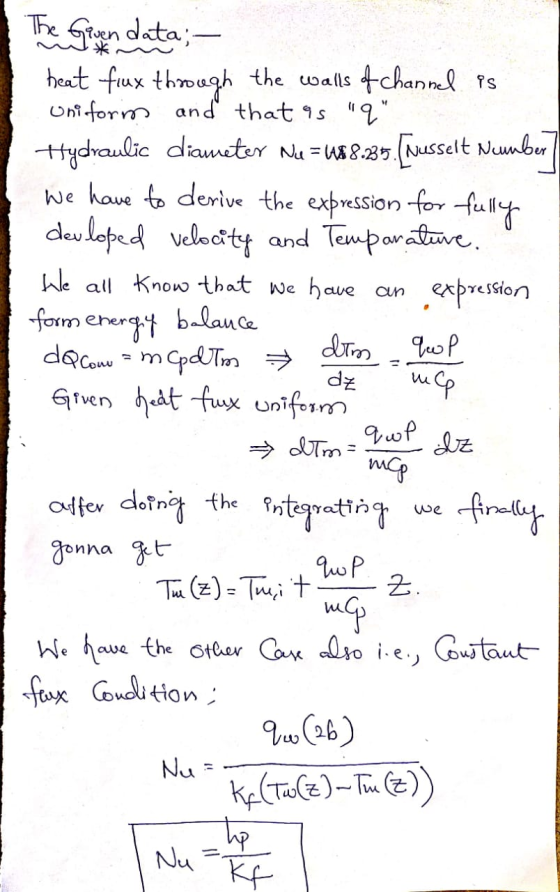

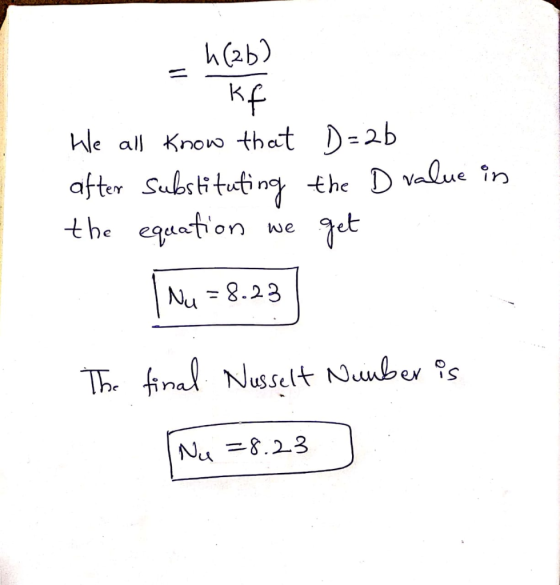

this is the answer to derive the equation for fully developed
temperature profile.
