Draw a lambda-NFA for the regular expression 0+00+(01)*
Draw a lambda-NFA for the regular expression 0+00+(01)*
Homework Answers
Answer is as follows :

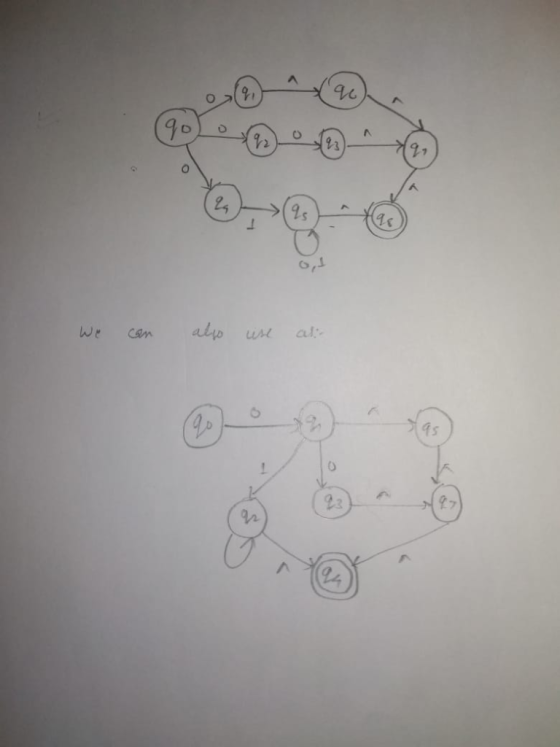

Lambda NFA for given scenario is as follows :
q0 is initial state in both diagram. Both are correct as per my
knowledge. But if you want to consider only one, than move with
first one.
in NFA represent Null.
if there is any query please ask in comments...
Solve Regular expression to epsilon-NFA problem For the following regular expression: (((00)*(11))|01)* Over the alphabet {0,1}...
Solve Regular expression to epsilon-NFA problem For the following regular expression: (((00)*(11))|01)* Over the alphabet {0,1} Give an epsilon-NFA that recognizes the same language. HELP: Block Canvas Tutorial
Draw the state diagram of an NFA that realizes regular expression 0(011)*U1
Draw the state diagram of an NFA that realizes regular expression 0(011)*U1
4. Give the NFA resulting from the algorithm for converting the regular expression, 01+10∗ , to a...
4. Give the NFA resulting from the algorithm for converting the
regular expression, 01+10∗ , to an NFA for the same
language.
4. (50 points). Give the NFA resulting from the algorithm for converting the regular expres- ion, 01-+10*, to an NFA for the same language.
4. (50 points). Give the NFA resulting from the algorithm for converting the regular expres- ion, 01-+10*, to an NFA for the same language.
Regular expression to NFA help! 0*(1*000*)*1*0* build an equivalent epsilon nfa using the regular expression above....
Regular expression to NFA help! 0*(1*000*)*1*0* build an equivalent epsilon nfa using the regular expression above. Thank you so much, will rate!
regular expression is (00)*11+10. 1into an ?-NFA. Give state transition diagram of the ?-NFA as well...
regular expression is (00)*11+10. 1into an ?-NFA. Give state transition diagram of the ?-NFA as well as its state transition table showing ?-closure of the states. 2 Convert the ?-NFA to a DFA by the subset construction. Give state transition diagram of the DFA.
convert regular expression (00)*11U010 to NFA. Please show step by step how to do it.
convert regular expression (00)*11U010 to NFA. Please show step by step how to do it.
Construct an NFA for the regular expression ((a+b)*c)* such that the structure of the NFA directly...
Construct an NFA for the regular expression ((a+b)*c)* such that the structure of the NFA directly corresponds to the structure of that expression. Submit Below, explain how the parts of your NFA correspond to the components of that regular expression.
3. Given the regular expression (a[b)a(a[b)*. [5 marks] (a) Draw the corresponding NFA diagram using the...
3. Given the regular expression (a[b)a(a[b)*. [5 marks] (a) Draw the corresponding NFA diagram using the Thompson construction; (b) Transform the NFA to DFA using subset construction. You need to write the derivation process and draw the resulting diagram; [4 marks] [5 marks (c) Express the RE using a CFG
3. Given the regular expression (a[b)a(a[b)*. [5 marks] (a) Draw the corresponding NFA diagram using the Thompson construction; (b) Transform the NFA to DFA using subset construction. You need to...
Consider the following regular expression: (a*bc+d*e)* Transform this regular expression to an NFA, from there to...
Consider the following regular expression: (a*bc+d*e)* Transform this regular expression to an NFA, from there to a right-linear regular grammar, and from there back to the original regular expression.
(8 marks) Convert the regular expression 0(0+1)*11 to an e-NFA in such a way that you...
(8 marks) Convert the regular expression 0(0+1)*11 to an e-NFA in such a way that you are guaranteed that it is correct. Justify your reasoning.
Solve Regular expression to epsilon-NFA problem For the following regular expression: (((00)*(11))|01)* Over the alphabet {0,1} Give an epsilon-NFA that recognizes the same language. HELP: Block Canvas Tutorial
4. Give the NFA resulting from the algorithm for converting the
regular expression, 01+10∗ , to an NFA for the same
language.
4. (50 points). Give the NFA resulting from the algorithm for converting the regular expres- ion, 01-+10*, to an NFA for the same language.
4. (50 points). Give the NFA resulting from the algorithm for converting the regular expres- ion, 01-+10*, to an NFA for the same language.
Construct an NFA for the regular expression ((a+b)*c)* such that the structure of the NFA directly corresponds to the structure of that expression. Submit Below, explain how the parts of your NFA correspond to the components of that regular expression.
3. Given the regular expression (a[b)a(a[b)*. [5 marks] (a) Draw the corresponding NFA diagram using the Thompson construction; (b) Transform the NFA to DFA using subset construction. You need to write the derivation process and draw the resulting diagram; [4 marks] [5 marks (c) Express the RE using a CFG
3. Given the regular expression (a[b)a(a[b)*. [5 marks] (a) Draw the corresponding NFA diagram using the Thompson construction; (b) Transform the NFA to DFA using subset construction. You need to...
(8 marks) Convert the regular expression 0(0+1)*11 to an e-NFA in such a way that you are guaranteed that it is correct. Justify your reasoning.
