A servomechanism position control has the plant transfer function G(s) =10/s(s + I )(s + 10)...
A servomechanism position control has the plant transfer
function G(s) =10/s(s + I )(s + 10)
You are to design a series of compensation transfer function Dc(s)
in the unity feedback configuration to meet the following
closed-loop specifications:
-The response to a reference step input is to have no more than
16%overshoot.
-The response to a ref ere nee step input is to have a rise time of
no more than 0.4 sec.
-The steady-state error to a unit ramp at the reference input must
be less than 0.05.

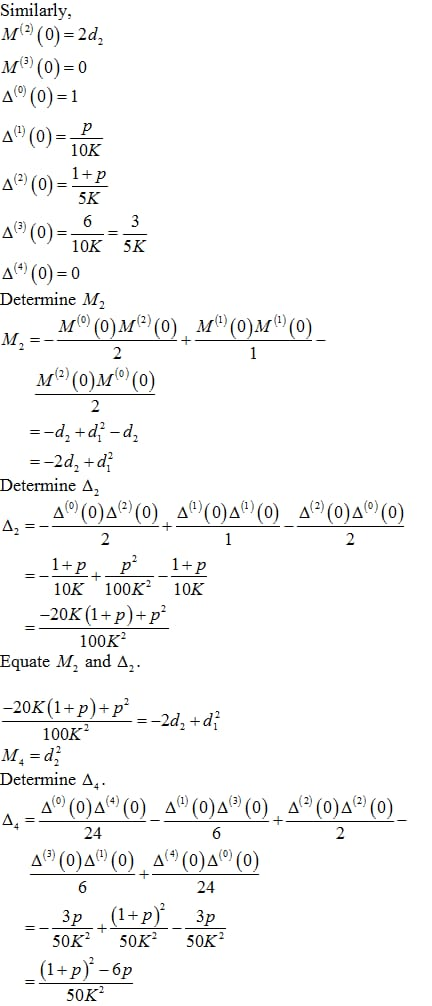

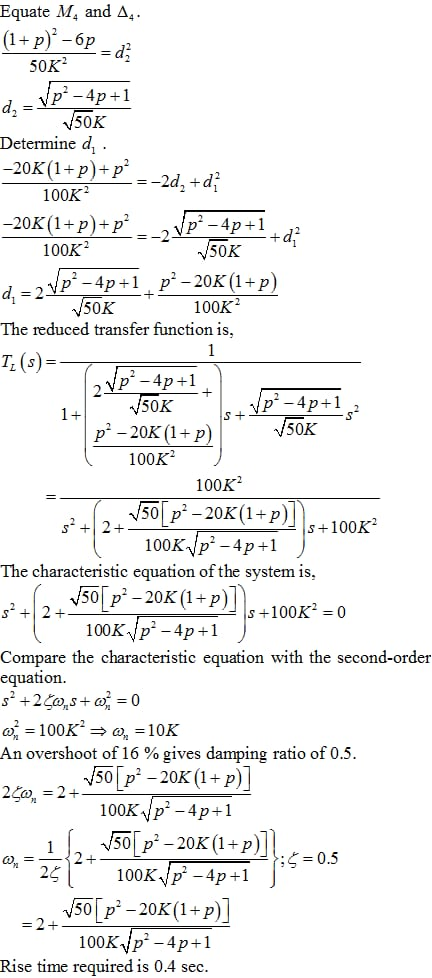

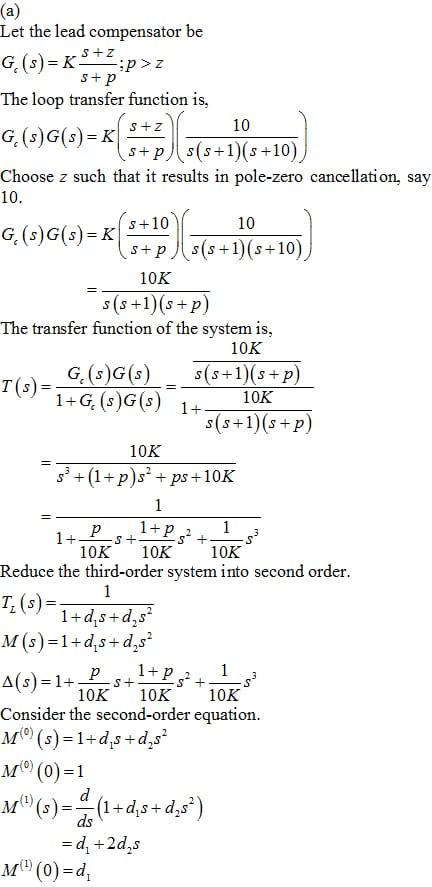

(a) Design a lead compensation that will cause the system to meet
the dynamic response specifications, ignoring the error
requirement.

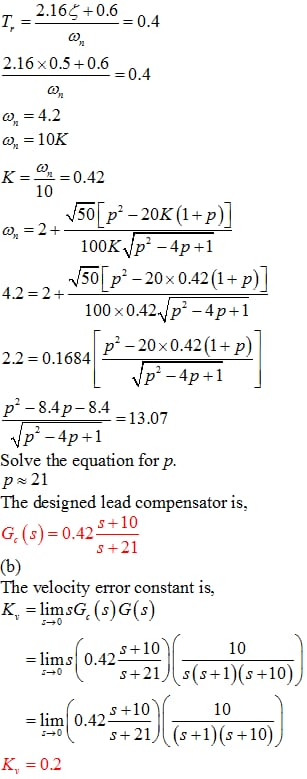

(b) What is the velocity constant Kv for your design? Does it meet
the error specification?

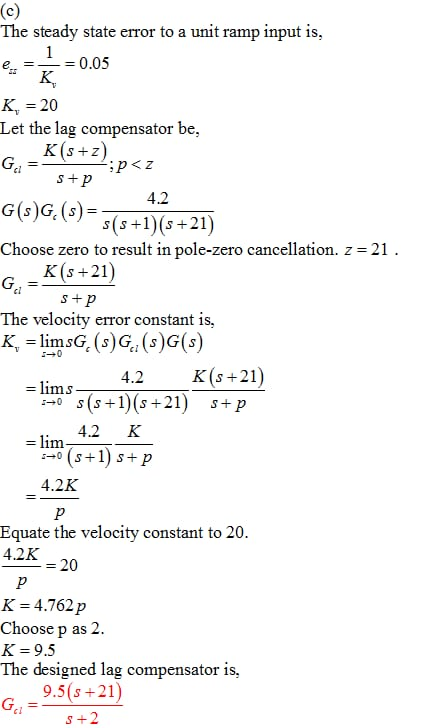

(c) Design a lag compensation to be used in series with the lead
you have designed to cause the system to meet the steady-state
error specification.

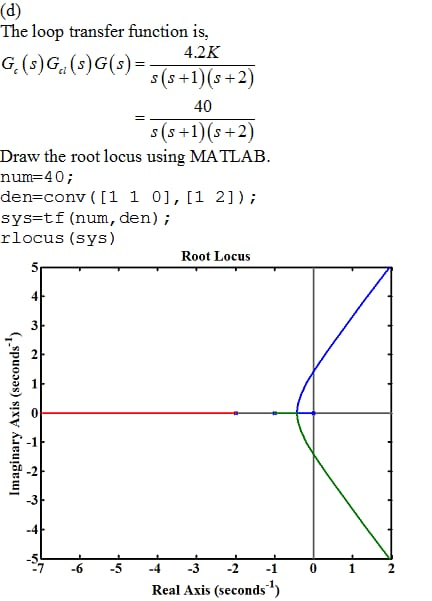

(d) Give the Matlab plot of the root locus of your final
design.
(e) Give the Matlab response of your final design to a reference
step.
Homework Answers
Add Answer to:
A servomechanism position control has the plant transfer
function G(s) =10/s(s + I )(s + 10)...
