A solution of 5% NaCl in water is flowing in a stainless steel pipe. To estimate...

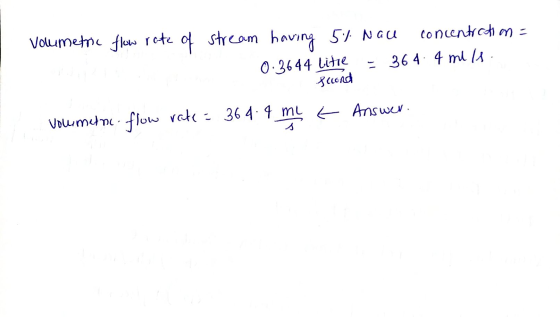

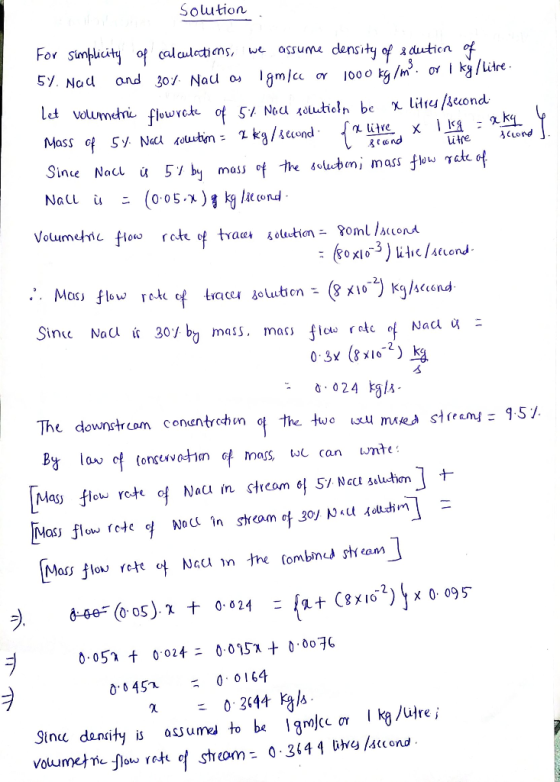

A solution of 5% NaCl in water is flowing in a stainless steel pipe. To estimate the flow rate, one of your colleagues starts pumping a 30% NaCl tracer solution into the pipe at a rate of 80mls-1 while you measure the concentration of NaCl downstream after the solutions are well mixed. If the downstream NaCl concentration is 9.5%, use mass balance principles to determine the flow rate of the initial 5% NaCl solution.
Homework Answers
Add Answer to:
A solution of 5% NaCl in water is flowing in a stainless steel
pipe. To estimate...
Water at 15 degrees celcius is flowing steadily in a 5cm horizontal pipe made of stainless...
Water at 15 degrees celcius is flowing steadily in a 5cm horizontal pipe made of stainless steel (roughness 0.22mm) at a rate of 6L/s. For a 60m long pipe. Determine head loss due to friction, the pressure loss in Kpa and required pumping power in kw.
Water at 15°C (ρ = 999.1 kg/m3 and μ = 1.138 × 10−3 kg/m·s) is flowing steadily in a 34-m-long and 6-cm-diameter horizontal pipe made of stainless steel at a rate of 10 L/s. Determine the pressure d...
Water at 15°C (ρ = 999.1 kg/m3and μ = 1.138 × 10−3 kg/m·s) is flowing
steadily in a 34-m-long and 6-cm-diameter horizontal pipe made of
stainless steel at a rate of 10 L/s. Determine the pressure drop,
the head loss, and the pumping power requirement to overcome this
pressure drop. The roughness of stainless steel is 0.002 mm.Determine the following:A)The pressure drop in _______ kPa.B)The head loss in _______ m.C)The pumping power requirement in _______ kW.
Water at 15 degree Celsius , density = 999kg/cubic meter, viscosity = 0.001138 kg/ms , is...
Water at 15 degree Celsius , density = 999kg/cubic meter, viscosity = 0.001138 kg/ms , is flowing steadily in a 5 cm diameter horizontal pipe made of stainless steel at a rate of 0.006 m3/s . Determine the pressure drop, the head loss and the required pumping power input for flow over a 60m long section of the pipe.
Water is flowing through a 600mm diameter horizontal pipe n = 0.013 and 1000m in length....
Water is flowing through a 600mm diameter horizontal pipe n = 0.013 and 1000m in length. A gage pressure downstream has a reading of 16 kPa and another gage in between the ends of the pipe reads 20 kPa while on the upstream side reads 30 kPa. a. Determine the total head loss of the pipe b. Determine the velocity of flow in m/s. c. Determine the rate of discharge in liter per second.
Water (p = 1000 kg/m3 and u = 1.002X10-3 kg/m.s) is flowing steadily in a 30...
Water (p = 1000 kg/m3 and u = 1.002X10-3 kg/m.s) is flowing steadily in a 30 m-long and 5 cm-diameter inclined pipe ( = 40% made of stainless steel (ε = 0.002mm) at a rate of 9 L/s. Determine: 1. The pressure drop (P1-P) 2. The pumping power requirement to overcome this pressure drop. 5cm 9 L/s L 30 m
A 10 m long stainless steel (AISI 347) pipe is delivering saturated liquid water at 140...
A 10 m long stainless steel (AISI 347) pipe is delivering saturated liquid water at 140 °C. The inner and out diameter is 20cm and 22cm, respectively. Ambient air at 27 °C flows over this pipe as cross flow at 5 m/s. The convection heat transfer between internal surface and water is 200W/m^2*K. If you need the external surface temperature in finding property of air, you can assume the pipe external surface temperature is 127 °C. (1) Find the heat...
Water at 10°C (p = 999.7 kg/m3 and μ = 1.307 × 10-3 kg/m.s) is flowing steadily in a 0.20-cm-diameter, 15-m-long pipe at an average velocity of 1.2 m/s
8-31 Water at 10°C (p = 999.7 kg/m3 and μ = 1.307 × 10-3 kg/m.s) is flowing steadily in a 0.20-cm-diameter, 15-m-long pipe at an average velocity of 1.2 m/s. Determine (a) the pressure drop, (b) the head loss, and (c) the pumping power requirement to overcome this pressure drop. Answers: (a) 188 kPa, (b) 19.2 m, (c) 0.71 W 8-32 Water at 15°C (p = 999.1 kg/m3 and μ = 1.138 × 10-3 kg/m . s) is flowing steadily in a 30-m-long...
L 2. Steady statemass balance: Water is flowing at steady state in a 0.1 meter-diameter pipe...
L 2. Steady statemass balance: Water is flowing at steady state in a 0.1 meter-diameter pipe with a maximum velocity (turbulent profile) of 0.3 meters/sec. The pipe then goes through an expansion, to where it is then flowing in a 0.5 meter-diameter pipe, and the flow regime has changed from turbulent to laminar. In the second section of pipe, calculate the velocity as (a) block flow profile (Vavg), and (b) maximum velocity in laminar flow profile? HINT: you will need...
A water stream flowing in a pipeline is to be disinfected with chlorine. Question 1 (5...
A water stream flowing in a pipeline is to be disinfected with chlorine. Question 1 (5 points): Experiments conducted in a laboratory in a jar test (batch reactor) have shown that the initial concentration of bacteria was reduced by 99.5% after 10 minutes. Assuming Chick’s law is valid (that is first order kinetics) compute the first order kinetics rate constant (k). Question 2 (15 points): The pipeline diameter is 0.6 m and the wastewater flow rate is 0.044
Water at 20 C is steadily flowing through a diverging pipe section that is inclined by...
Water at 20 C is steadily flowing through a diverging pipe section that is inclined by an angle of 30° with respect to the horizontal (See the figure) The total testing section length is 20 m long with an initial pipe diameter of 10 mm (Section 1) and final diameter of 20 mm (Section 2). The small diameter section shows a gage pressure of 100 kPa and average flow velocity 10 m/s. Other values will be obtained by reaching complete...
Water (p = 1000 kg/m3 and u = 1.002X10-3 kg/m.s) is flowing steadily in a 30 m-long and 5 cm-diameter inclined pipe ( = 40% made of stainless steel (ε = 0.002mm) at a rate of 9 L/s. Determine: 1. The pressure drop (P1-P) 2. The pumping power requirement to overcome this pressure drop. 5cm 9 L/s L 30 m
L 2. Steady statemass balance: Water is flowing at steady state in a 0.1 meter-diameter pipe with a maximum velocity (turbulent profile) of 0.3 meters/sec. The pipe then goes through an expansion, to where it is then flowing in a 0.5 meter-diameter pipe, and the flow regime has changed from turbulent to laminar. In the second section of pipe, calculate the velocity as (a) block flow profile (Vavg), and (b) maximum velocity in laminar flow profile? HINT: you will need...
Water at 20 C is steadily flowing through a diverging pipe section that is inclined by an angle of 30° with respect to the horizontal (See the figure) The total testing section length is 20 m long with an initial pipe diameter of 10 mm (Section 1) and final diameter of 20 mm (Section 2). The small diameter section shows a gage pressure of 100 kPa and average flow velocity 10 m/s. Other values will be obtained by reaching complete...
