Draw the first 10 samples of the system unit impulse response y[n] = y[n-1] + x[n]...
Homework Answers
Add Answer to:

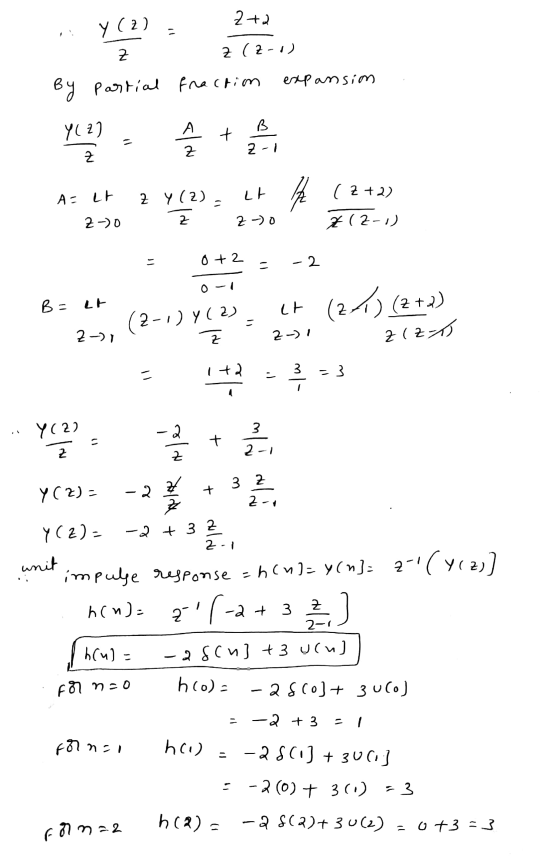

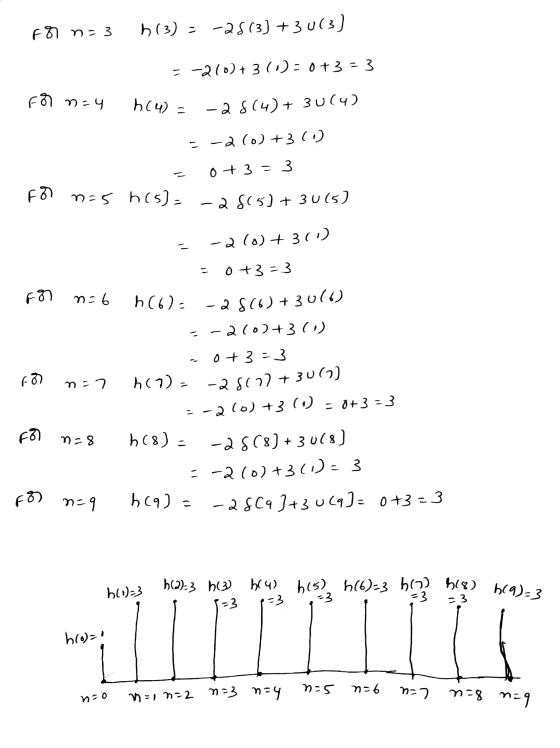

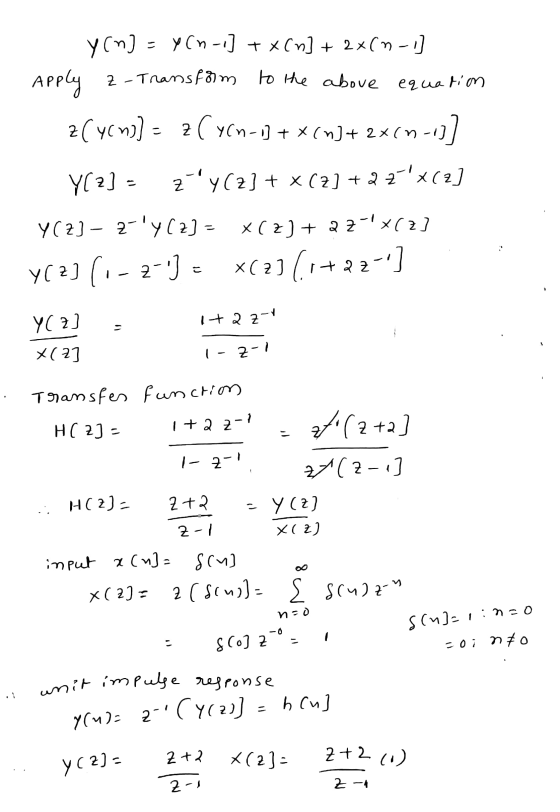

Draw the first 10 samples of the system unit impulse response
y[n] = y[n-1] + x[n]...
1. Given the impulse response, h[n duration 50 samples. (-0.9)"u[n, find the step response for a step input of h-(0...
1. Given the impulse response, h[n duration 50 samples. (-0.9)"u[n, find the step response for a step input of h-(0.9)-10:491 -ones (1,50) s- conv(u,h) 2. Plot h and u using stem function for 50 samples only stem(10:491, s(1:50) 1. Given a system described by the following difference equation: yIn] 1143yn 1 0.4128y[n -2 0.0675x[n0.1349xn 0.675x[n-2] Determine the output y in response to zero input and the initial conditionsy-11 and yl-2] 2 for 50 samples using the following commands: a -,-1.143,...
I need help with this MATLAB exercise. The given system is y[n] - (3/10)y[n-1] - (1/10)y[n-2]...
I need help with this MATLAB exercise.
The given system is y[n] - (3/10)y[n-1] - (1/10)y[n-2] =
2x[n]
The input x[n] is 2cos(2*pi*n/6)(u[n] - u[n-10])
Don't have to answer part 2 of the question.
Zero-state response of a system can be found by using convolution of the input signal and unit impulse response: Use conv command from MATLAB to compute the zero-state response of the system defined in part B to the input x[n] in part C. 1. 2. 3....
Consider the system:y[n]-0.5y[n-1]-0.25y[n-2]=x[n]+2x[n-1]+x[n-2] • Plot, using MATLAB, the impulse and step responses of the system. Highlight...
Consider the system:y[n]-0.5y[n-1]-0.25y[n-2]=x[n]+2x[n-1]+x[n-2] • Plot, using MATLAB, the impulse and step responses of the system. Highlight the response characteristics in your plots • Assume initial conditions y(-1) = 1, y(-2) = 0 and that the input signal to the system is a discrete-time unit step. Determine the formula for the Z-transform of the solution, Y(z). Subsequently, determine the formula for the solution, y[n], itself.
Determine the unit impulse response h[n] for a system in Example 3.11 specified by the equation...
Determine the unit impulse response h[n] for a system in Example 3.11 specified by the equation y[n] -0.6y[n - 1] -0.16y[n - 2) = 5x[n]
1. An LTI system has impulse response defined by h (n )={2 ,2 ,−1,−1 ,−1,−1}first 2...
1. An LTI system has impulse response defined by h (n )={2 ,2 ,−1,−1 ,−1,−1}first 2 zero . Determine the outputs when the input x(n) is (a) u(n ) ; (b) u(n−4 ) 2. Let the rectangle pulse x ( n )=u ( n ) −u (n −10 ) be an input to an LTI system with impulse response h (n )=(0.9 )n u (n ) . Determine the output y ( n ) . (Hint: You need to consider muliple...
Determine the output response y[n] of a causal LTI digital system with an impulse response
Determine the output response y[n] of a causal LTI digital system with an impulse response h[n]=2(0.2)n μ[n] for an input sequence x[n] = 4(0.3)n μ[n]
For a system with the difference equation: y[n] = -2y[n-1] + x[n] + 2x[n-2], find a.The...
For a system with the difference equation: y[n] = -2y[n-1] + x[n] + 2x[n-2], find a.The impulse response b.The step response
CONVOLUTION - Questions 4 and 5 4. Consider an LTI system with an impulse response h(n)...
CONVOLUTION - Questions 4 and 5 4. Consider an LTI system with an impulse response h(n) = [1 2 1] for 0 <n<2. If the input to the system is x(n) = u(n)-un-2) where u(n) is the unit-step, calculate the output of the system y(n) analytically. Check your answer using the "conv" function in MATLAB. 5. Consider an LTI system with an impulse response h(n) = u(n) where u(n) is the unit-step. (a) If the input to the system is...
A causal LTI system is characterized by : y[n] - 3/4 y[n-1] + 1/8 y[n-2] =2x[n]....
A causal LTI system is characterized by : y[n] - 3/4 y[n-1] + 1/8 y[n-2] =2x[n]. (a) Find the impulse response h[n] of this system (b) Find the response of the system to input x[n] = (1/4)^n * u[n]
tions. 1. A leaky integrator: y(n) - Ax(n) + (1 -A)y(n-1), 0< A<1 2. A differentiator:...
tions. 1. A leaky integrator: y(n) - Ax(n) + (1 -A)y(n-1), 0< A<1 2. A differentiator: y(n)= 0.5x(n)-0.5x(n-2) (2) Draw the unit impulse responses of the above two processes. A = 0.5 (Hint: you just need to draw a picture that y-axis is y(n) and x-axis is n (time). The input is the unit impulse x(n) = δ(n). ) (3) A linear time-invariant (LTD) system can be represented by the impulse response hn). What is the iff condition on h(n),...
1. Given the impulse response, h[n duration 50 samples. (-0.9)"u[n, find the step response for a step input of h-(0.9)-10:491 -ones (1,50) s- conv(u,h) 2. Plot h and u using stem function for 50 samples only stem(10:491, s(1:50) 1. Given a system described by the following difference equation: yIn] 1143yn 1 0.4128y[n -2 0.0675x[n0.1349xn 0.675x[n-2] Determine the output y in response to zero input and the initial conditionsy-11 and yl-2] 2 for 50 samples using the following commands: a -,-1.143,...
I need help with this MATLAB exercise.
The given system is y[n] - (3/10)y[n-1] - (1/10)y[n-2] =
2x[n]
The input x[n] is 2cos(2*pi*n/6)(u[n] - u[n-10])
Don't have to answer part 2 of the question.
Zero-state response of a system can be found by using convolution of the input signal and unit impulse response: Use conv command from MATLAB to compute the zero-state response of the system defined in part B to the input x[n] in part C. 1. 2. 3....
Determine the unit impulse response h[n] for a system in Example 3.11 specified by the equation y[n] -0.6y[n - 1] -0.16y[n - 2) = 5x[n]
CONVOLUTION - Questions 4 and 5 4. Consider an LTI system with an impulse response h(n) = [1 2 1] for 0 <n<2. If the input to the system is x(n) = u(n)-un-2) where u(n) is the unit-step, calculate the output of the system y(n) analytically. Check your answer using the "conv" function in MATLAB. 5. Consider an LTI system with an impulse response h(n) = u(n) where u(n) is the unit-step. (a) If the input to the system is...
tions. 1. A leaky integrator: y(n) - Ax(n) + (1 -A)y(n-1), 0< A<1 2. A differentiator: y(n)= 0.5x(n)-0.5x(n-2) (2) Draw the unit impulse responses of the above two processes. A = 0.5 (Hint: you just need to draw a picture that y-axis is y(n) and x-axis is n (time). The input is the unit impulse x(n) = δ(n). ) (3) A linear time-invariant (LTD) system can be represented by the impulse response hn). What is the iff condition on h(n),...
