An electron penetrates a region in which there is a uniform magnetic field whose value is...

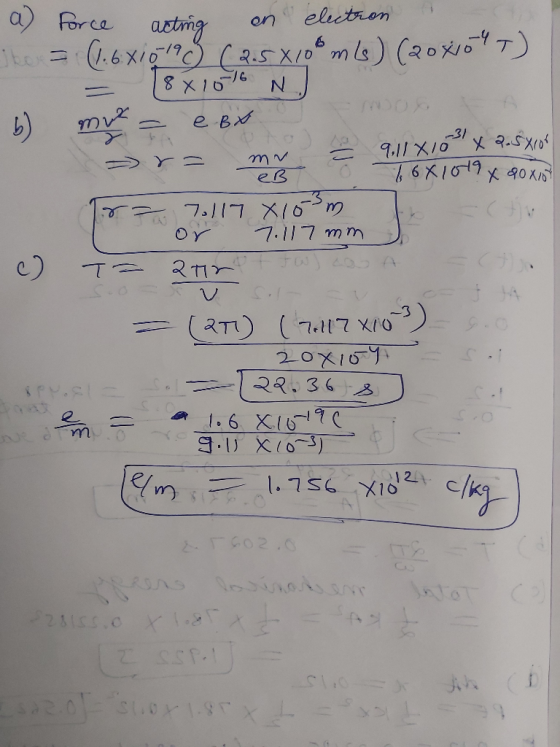

An electron penetrates a region in which there is a uniform magnetic field whose value is 20 x 10-4 Teslas. If the electron velocity is 2.5 x 106 m / s. Calculate a) The force acting on the electron, b) the radius of the circular path it describes, c) the time it takes to travel this orbit and the e / m reaction for these conditions.
Homework Answers
Add Answer to:
An electron penetrates a region in which there is a uniform
magnetic field whose value is...
1. An electron enters a uniform magnetic field of 2.5 mT with a velocity perpendicular to...
1. An electron enters a uniform magnetic field of 2.5 mT with a velocity perpendicular to the direction of the field. At what speed must the electron enter the region in order to traverse a circular path with a radius of 2.5 cm?
An electron enters a region of space containing a uniform 0.0000281-T magnetic field. Its speed is...
An electron enters a region of space containing a uniform 0.0000281-T magnetic field. Its speed is 121 m/s and it enters perpendicularly to the field. Under these conditions, the electron undergoes circular motion Find the radius r of the electron's path, and the frequency fof the motion. Number r- Number Hz f-
An electron moves in a circular path perpendicular to a uniform magnetic field with a magnitude o...
An electron moves in a circular path perpendicular to a uniform magnetic field with a magnitude of 2.12 mT. If the speed of the election is 1.63 x 107 m/s determine the followi (a) the radius of the circular path cm (b) the time interval required to complete one revolution
An electron moves in a circular path perpendicular to a uniform magnetic field with a magnitude of 2.12 mT. If the speed of the election is 1.63 x 107 m/s...
Question.13 An electron enters a region of space containing a uniform 0.0000171-T magnetic field. Its speed...
Question.13 An electron enters a region of space containing a uniform 0.0000171-T magnetic field. Its speed is 109 m/s and it enters perpendicularly to the field. Under these conditions, the electron undergoes circular motion. Find the radius r of the electron\'s path, and the frequency f of the motion. r:.....meter f:....Hz
4. An electron is moving in a uniform magnetic field of 0.25 T; its velocity components...
4. An electron is moving in a uniform magnetic field of 0.25 T; its velocity components parallel and perpendicular to the field are both equal to 3.1-100 m/s. (a) What is the radius of the electron's spiral path? (b) How far does it move along the field direction in the time it takes to complete a full orbit about the field direction?
An electron moves in a circular path perpendicular to a uniform magnetic field with a magnitude...
An electron moves in a circular path perpendicular to a uniform magnetic field with a magnitude of 2.03 mT. If the speed of the electron is 1.66 x 107 m/s, determine the following (a) the radius of the circular path cm (b) the time interval required to complete one revolution
An electron enters into a uniform magnetic field directed into of the page. The magnetic field...
An electron enters into a uniform magnetic field directed into of the page. The magnetic field has a magnitude of B = 1.57. The electron will travel a semi-circle path with a radius of R=42 x 10-6 m and hits a detector. What speed did the electron have when it entered the uniform magnetic field? Electron Charge:q=1.602 x 10-19 C Electron Mass: m = 9.109 x 10-31 kg ( XB R V Detector 1.11 x 107 m/s Any electrons will...
24 A circular loop of wire is in a region of spatially uniform magnetic field directed...
24 A circular loop of wire is in a region of spatially uniform magnetic field directed into the page. Determine the direction of the induced current (as viewed from above) when the magnitude of the magnetic field is increasing. a. Clockwise b. Counterclockwise c. No current flows. 25 An electron enters a region where the uniform magnetic field strength is 4.0 T at a velocity of 4.88 x 10^m/s perpendicular to the field. Determine the radius of gyration of the...
a region of space containing a uniform 2.83 × 10-5 T magnetic field. Its speed is...
a region of space containing a uniform 2.83 × 10-5 T magnetic field. Its speed is 171 m/s and it enters perpendicularly to the field. Under these conditions, the electron undergoes circular motion. Find the radius r of the electron's path and the frequency f of the motion. r= Hz
An electron moves through a region with a uniform magnetic field of unknown magnitude directed in...
An electron moves through a region with a uniform magnetic field of unknown magnitude directed in the +y direction At the instant that the electron is moving in the +z direction with a velocity of 2.86e6 m/s, it experiences a magnetic force of 1.24 pN in the +x direction. Calculate the magnitude of the magnetic field
1. An electron enters a uniform magnetic field of 2.5 mT with a velocity perpendicular to the direction of the field. At what speed must the electron enter the region in order to traverse a circular path with a radius of 2.5 cm?
An electron enters a region of space containing a uniform 0.0000281-T magnetic field. Its speed is 121 m/s and it enters perpendicularly to the field. Under these conditions, the electron undergoes circular motion Find the radius r of the electron's path, and the frequency fof the motion. Number r- Number Hz f-
An electron moves in a circular path perpendicular to a uniform magnetic field with a magnitude of 2.12 mT. If the speed of the election is 1.63 x 107 m/s determine the followi (a) the radius of the circular path cm (b) the time interval required to complete one revolution
An electron moves in a circular path perpendicular to a uniform magnetic field with a magnitude of 2.12 mT. If the speed of the election is 1.63 x 107 m/s...
4. An electron is moving in a uniform magnetic field of 0.25 T; its velocity components parallel and perpendicular to the field are both equal to 3.1-100 m/s. (a) What is the radius of the electron's spiral path? (b) How far does it move along the field direction in the time it takes to complete a full orbit about the field direction?
An electron moves in a circular path perpendicular to a uniform magnetic field with a magnitude of 2.03 mT. If the speed of the electron is 1.66 x 107 m/s, determine the following (a) the radius of the circular path cm (b) the time interval required to complete one revolution
An electron enters into a uniform magnetic field directed into of the page. The magnetic field has a magnitude of B = 1.57. The electron will travel a semi-circle path with a radius of R=42 x 10-6 m and hits a detector. What speed did the electron have when it entered the uniform magnetic field? Electron Charge:q=1.602 x 10-19 C Electron Mass: m = 9.109 x 10-31 kg ( XB R V Detector 1.11 x 107 m/s Any electrons will...
24 A circular loop of wire is in a region of spatially uniform magnetic field directed into the page. Determine the direction of the induced current (as viewed from above) when the magnitude of the magnetic field is increasing. a. Clockwise b. Counterclockwise c. No current flows. 25 An electron enters a region where the uniform magnetic field strength is 4.0 T at a velocity of 4.88 x 10^m/s perpendicular to the field. Determine the radius of gyration of the...
a region of space containing a uniform 2.83 × 10-5 T magnetic field. Its speed is 171 m/s and it enters perpendicularly to the field. Under these conditions, the electron undergoes circular motion. Find the radius r of the electron's path and the frequency f of the motion. r= Hz
