a). What is the resistance of ten 10 ohm resistors hooked up in parallel? [Write answer...

Question

Question

a). What is the resistance of ten 10 ohm resistors hooked up in parallel? [Write answer to 3 sig. figs.]

b). What is the resistance of ten 10 ohm resistors hooked up in parallel? [Write answer to 3 sig. figs.]

c). How many 10 ohm resistors hooked up in parallel would you need to yield an equivalent resistance of 0.20 ohms. [Write answer to 2 sig. figs.]

science physics

Answer 1

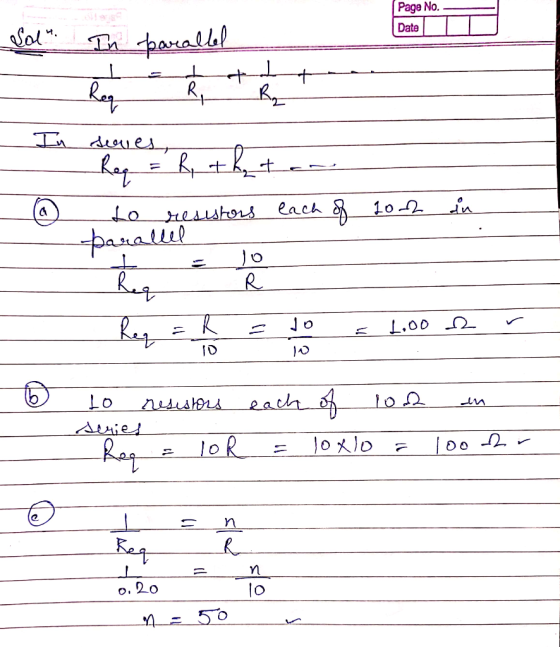

Answer #1

In series combination, Req =R1 + R2 + ...

Answer 2
