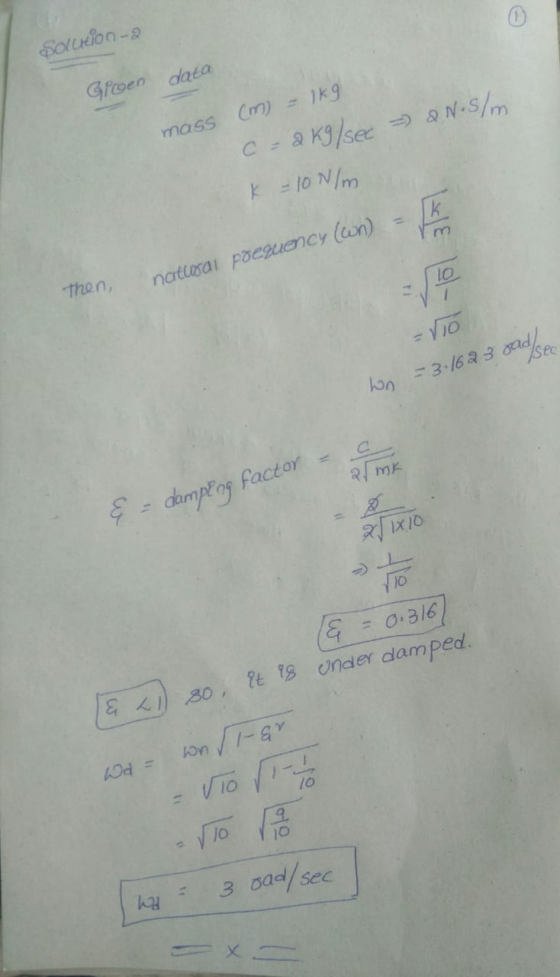

2. Compute the ζ and ωd for the damped system with m=1 kg, c=2 kg/s, and...

2. Compute the ζ and ωd for the damped system with m=1 kg, c=2 kg/s, and k=10 N/m. Is the system overdamped, underdamped, or critically damped? Calculate the damped natural frequency. Compute and plot the solution given the initial conditions x0 = 10 mm and v0 = 0 mm/s. (Hint: Use the same steps in Q1. Pay attention to units).

3. Consider the system x’’+ 4x’ + x = 0 for x0 = 1 mm, v0 = 0 mm/s. Is this system overdamped, underdamped or critically damped? Compute and plot the solution. Which root dominates as time goes on (that is, one root will die out quickly and the other will persist), why?

(I ALREADY HAVE THE SOLUTION BUT CAN YOU PLEASE SHOW ALL THE STEPS TO PLOT THE GRAPH IN MATLAB)

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
2. Compute the ζ and ωd for the damped system with m=1 kg, c=2 kg/s, and...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Answer last four questions 1. A spring-mass-damper system has mass of 150 kg, stiffness of 1500...

    Answer last four questions 1. A spring-mass-damper system has mass of 150 kg, stiffness of 1500 N/m and damping coefficient of 200 kg/s. i) Calculate the undamped natural frequency ii) Calculate the damping ratio iii) Calculate the damped natural frequency iv) Is the system overdamped, underdamped or critically damped? v) Does the solution oscillate? The system above is given an initial velocity of 10 mm/s and an initial displacement of -5 mm. vi) Calculate the form of the response and...

  • Consider a mass-spring-dashpot system in which the mass is m = 4 lb-sec^2/ft, the damping constant...

    Consider a mass-spring-dashpot system in which the mass is m = 4 lb-sec^2/ft, the damping constant is c =24 lb-sec/ft, and the spring constant is k=52lb/ft. The motion is free damped motion and the mass is set in motion with initial position x0=5ft and the initial velocity v0= -7ft/sec. Find the position function x(t) and determine whether the motion is overdamped, critically damped, or underdamped.

  • 1. The change of position of the center of mass of a rigid body in a mechanical system is being monitored. At time t 0, when the initial conditions of the system were x = 0.1 m and x -0m/s, a ste...

    1. The change of position of the center of mass of a rigid body in a mechanical system is being monitored. At time t 0, when the initial conditions of the system were x = 0.1 m and x -0m/s, a step input of size 10 N began to apply to the system. The response of the system was represented by this differential equation: 2r + 110x + 500 x = 10 a) Write the order of the system, its...

  • Using a mathematical software (MATLAB, MAPLE, and etc) plot the free and forced vibration response of...

    Using a mathematical software (MATLAB, MAPLE, and etc) plot the free and forced vibration response of a viscously damped system (x(t), dx(t)/dt, d2x(t)/dt2) with m=4kg, k=2500 N/m, x0=100 mm, v0=-10 m/s, Δt=[0,0.01], [0,1], and [0,10] for the following values. Also determine the nature of the system (un-damped, under damped, critically damped, and over damped). (5 marks) a. c=0, F=100 sinωt (ω=20,25,30)

  • 1. Consider a spring-mass-damper system with equation of motion given by: 2! x!+8x! + 26x =...

    1. Consider a spring-mass-damper system with equation of motion given by: 2! x!+8x! + 26x = 0 . i) Compute the solution if the system is given initial conditions x0 = 0 and v0 = -3 m/s j) Compute the solution if the system is given initial conditions x0 =1 m and v0 = −2 m/s k) Compute the solution if the system is given initial conditions x0 = −1 m and v0 = 2 m/s 2. Compute the solution...

  • Solve it with matlab 25.16 The motion of a damped spring-mass system (Fig. P25.16) is described...

    Solve it with matlab 25.16 The motion of a damped spring-mass system (Fig. P25.16) is described by the following ordinary differential equation: d’x dx ++ kx = 0 m dr dt where x = displacement from equilibrium position (m), t = time (s), m 20-kg mass, and c = the damping coefficient (N · s/m). The damping coefficient c takes on three values of 5 (under- damped), 40 (critically damped), and 200 (overdamped). The spring constant k = 20 N/m....

  • I want matlab code. 585 i1 FIGURE P22.15 22.15 The motion of a damped spring-mass system (Fig. P22.15) is de...

    I want matlab code. 585 i1 FIGURE P22.15 22.15 The motion of a damped spring-mass system (Fig. P22.15) is described by the following ordinary differ- ential equation: dx dx in dt2 dt where x displacement from equilibrium position (m), t time (s), m 20-kg mass, and c the damping coefficient (N s/m). The damping coefficient c takes on three values of 5 (underdamped), 40 (critically damped), and 200 (over- damped). The spring constant k-20 N/m. The initial ve- locity is...

  • ® Consider a damped unforced mass-spring system with m 1, γ 2, and k 26. a) (2 points) Find if th...

    solve d ,e , f, g ® Consider a damped unforced mass-spring system with m 1, γ 2, and k 26. a) (2 points) Find if this system is critically damped, underdamped, or overdamped. b) (4 points) Find the position u(t) of the mass at any time t if u(0)-6 and (0) 0. c) (4 points) Find the amplitude R and the phase angle δ for this motion and express u(t) in the form: u(t)-Rcos(wt -)e d) (2 points) Sketch...

  • Problem 5. (20 pts) Let ER be a positive real number and consider the damped system...

    Problem 5. (20 pts) Let ER be a positive real number and consider the damped system modeled by the following second-order differential equation: y"(t) + yy' (t) + 25y(t) = 0, (a) Show that the long-term behaviour of all solutions is independent of y. (b) For which values of ye R+ does the above differential equation have oscillating solutions ? (i.e. solutions with infinitely many zeroes.) (c) Classify the above damped system into underdamped, critically damped and overdamped in terms...

  • A mass of 2 kg stretches a spring 0.1 m. At time t= 0 the mass...

    A mass of 2 kg stretches a spring 0.1 m. At time t= 0 the mass is released from its equilibrium position with a downward velocity of 1 m/s. Air resistance adds a damping force equal to one fifth of the velocity of the mass. Set up an initial value problem for the position x(t) of the mass at time t. Determine whether the system is overdamped, underdamped or critically damped. You can assume the acceleration of gravity g equals...
