DO SIG FIGS when solving

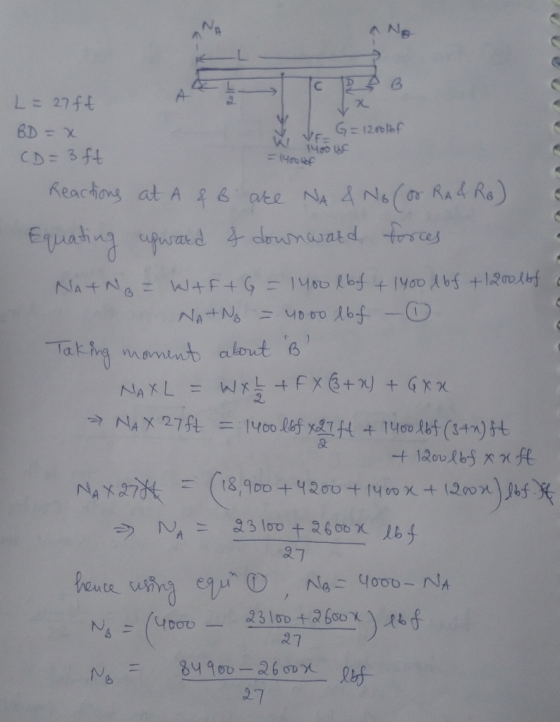

A uniform beam with total length L is simply supported at each end, A and B. The weight is W. There is a force G that acts downward at x feet from the right end, B. There is also a force F that acts downward at a point 3 ft to the left of where G acts. W is 1400 lbf, L is 27 ft, and G is 1200 lbf.

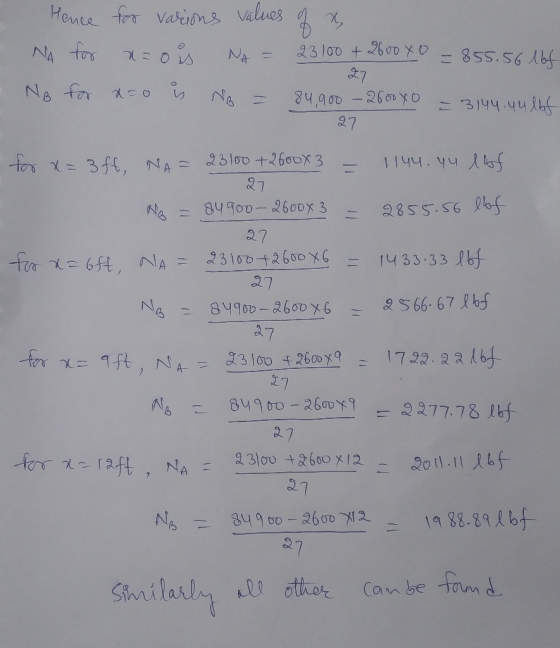

Construct a table for F = 1400 lbf downward, to determine the reactions at A and B, where x varies from 0 to 24 ft in increments of 3 ft.
| x | RA | RB |
| ft | lbf | lbf |
| 0 | ||
| 3 | ||
| 6 | ||
| 9 | ||
| 12 | ||
| 15 | ||
| 18 | ||
| 21 | ||
| 24 |
