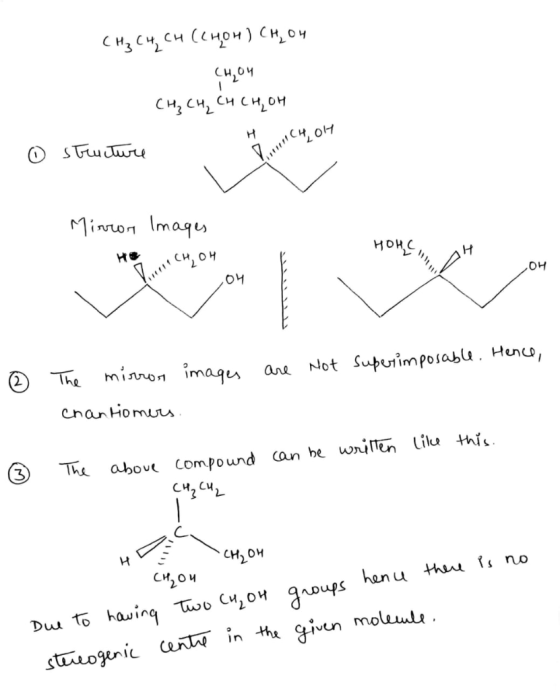

For CH3CH2CH(CH2OH)CH2OH: 1. Carefully draw a structures of the molecule and its mirror image using proper...
For CH3CH2CH(CH2OH)CH2OH:
1. Carefully draw a structures of the molecule and its mirror image using proper stereochemical notation. The mirror images should be drawn side-by-side indicating the mirror plane. Structures should be drawn USING THE ZIG-ZAG STYLE WITH WEDGES AND DASHES.
2. Determine if the mirror images can be superposed and therefore if they are enantiomers and/or diastereomers.
3. Identify the stereogenic center(s) of the molecule.
4. Determine the configuration at each stereogenic center (R or S).
5. For compounds that have more than one stereogenic center, carefully draw the stereoisomers using proper stereochemical notation. The mirror images should be drawn side-by-side indicating the mirror plane. Models should be drawn using the zig-zag style.
6. If there are more than 2 stereoisomers, perform a full stereochemical analysis of your structures, indicating which pairs are enantiomers and/or diastereomers. Identify the stereogenic center(s) of the molecule and determine the configuration at each stereogenic center.
Homework Answers
