2. Three charges are at the vertices of an isosceles triangle. With ?=7.00 ??, the two...

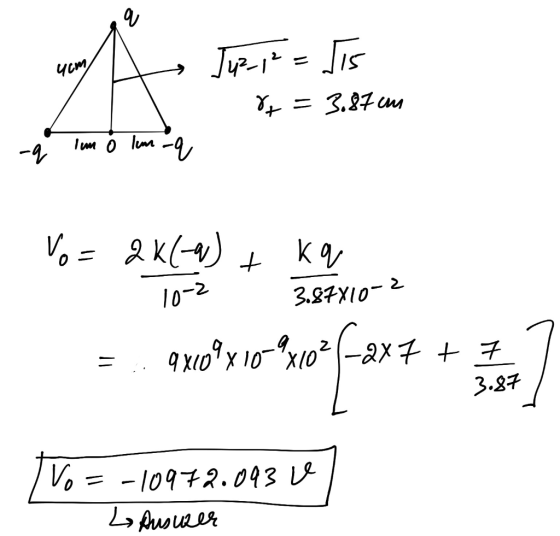

2. Three charges are at the vertices of an isosceles
triangle. With ?=7.00 ??, the two charges at the base of
the triangle are separated by 2.00 ?? and each have a charge of −?.
The charge q at the top of the triangle
is 4.00 ?? from each of the charges at the base. Calculate the
electric potential halfway between the charges
on the base of the triangle.
Homework Answers
Add Answer to:
2. Three charges are at the vertices of an isosceles
triangle. With ?=7.00 ??, the two...
The three charges in the figure below are at the vertices of an isosceles triangle. Let...
The three charges in the figure below are at the vertices of an isosceles triangle. Let q = 8.00 nC and calculate the electric potential at the midpoint of the base. (Let d1 = 1.00 cm and d2 = 4.50 cm.) Three charged particles lie at the vertices of an isosceles triangle. The bottom side has length d1 and the upper sides have length d2. The positive top charge is labeled q and the bottom two negative charges are each...
three charges are at the vertices of an isosceles triangle. let q1=7nC, q2=7nC and q3=7nC. The...
three charges are at the vertices of an isosceles triangle. let q1=7nC, q2=7nC and q3=7nC. The charges q2 and q3 are at the base of the triangle, separated by 2cm, while the charge q1 is separated by 4cm. Calculate the electric potential at the midpoint of the base of the triangle.
7. The three charges in the figure below are at the vertices of an isosceles triangle....
7. The three charges in the figure below are at the vertices of an isosceles triangle. Let q = 7.50 nC and calculate the electric potential at the midpoint of the base. 9 d2 di (Let di = 1.00 cm and d2 = 7.00 cm.) 8. Four point charges each having charge Q are located at the corners of a square having sides of length a. (a) Find a symbolic expression for the total electric potential at the center of...
The three charges in the figure below are at the vertices of an isosceles triangle.
The three charges in the figure below are at the vertices of an
isosceles triangle. Let q = 6.00 nC and calculate the
electric potential at the midpoint of the base. (Letd1 = 2.50 cm and d2 = 6.50
cm.)
The three charged particles in the figure below are at the vertices of an isosceles triangle...
The three charged particles in the figure below are at the vertices of an isosceles triangle (where d = 4.00 cm). Taking q 6.00 μο. calculate the electric potential at point A, the midpoint of the base 2d Need Help? Read It Master It
The three charges in the figure below are at the vertices of an isosceles triangle. Let...
The three charges in the figure below are at the vertices of an isosceles triangle. Let q4.50 nC and calculate the electric potential at the midpoint of the base. (Let d 2.50 cm and d2-5.00 cm.) 9 Your response differs significantly from the correct answer. Rework your solution from the beginning and check each step carefully. kV
The three charged particles in the figure below are at the vertices of an isosceles triangle...
The three charged particles in the figure below are at the vertices of an isosceles triangle (where d = 4.60 cm). Taking q = 8.30 mu C, calculate the electric potential at point A, the midpoint of the base. Superposition allows us to determine the electric potential due to each charge and then sum them to find the total electric potential. V
Three fixed point charges are at the vertices of an isosceles triangle with sides 40.00 cm,...
Three fixed point charges are at the vertices of an isosceles triangle with sides 40.00 cm, 40.00 cm and a base of 69.40 cm, with three angles being 30 degree 30 degree and 120 degree; q1 = q2 = +5.00 mu C and q3 = +1.20 mu C. A fourth point charge. Q = +20.00 mu C is placed on the bisector of the triangle a distance 9.30 cm up from the base along the bisector. Determine the net force...
The three charged particles in the figure below are at the vertices of an isosceles triangle (where d = 2.20 cm).
The three charged particles in the figure below are at the vertices of an isosceles triangle (where d = 2.20 cm). Taking q = 8.00 μC, calculate the electric potential at point A, the midpoint of the base.
Let q = 6.50 nc and calculate the electric potential at the midpoint of the base. (Let d1 = 1.00 cm and d2 = 7.00 cm.)
The three charges in the figure below are at the vertices of an isosceles triangle. Let q = 6.50 nc and calculate the electric potential at the midpoint of the base. (Let d1 = 1.00 cm and d2 = 7.00 cm.)
7. The three charges in the figure below are at the vertices of an isosceles triangle. Let q = 7.50 nC and calculate the electric potential at the midpoint of the base. 9 d2 di (Let di = 1.00 cm and d2 = 7.00 cm.) 8. Four point charges each having charge Q are located at the corners of a square having sides of length a. (a) Find a symbolic expression for the total electric potential at the center of...
The three charged particles in the figure below are at the vertices of an isosceles triangle (where d = 4.00 cm). Taking q 6.00 μο. calculate the electric potential at point A, the midpoint of the base 2d Need Help? Read It Master It
The three charges in the figure below are at the vertices of an isosceles triangle. Let q4.50 nC and calculate the electric potential at the midpoint of the base. (Let d 2.50 cm and d2-5.00 cm.) 9 Your response differs significantly from the correct answer. Rework your solution from the beginning and check each step carefully. kV
The three charged particles in the figure below are at the vertices of an isosceles triangle (where d = 4.60 cm). Taking q = 8.30 mu C, calculate the electric potential at point A, the midpoint of the base. Superposition allows us to determine the electric potential due to each charge and then sum them to find the total electric potential. V
Three fixed point charges are at the vertices of an isosceles triangle with sides 40.00 cm, 40.00 cm and a base of 69.40 cm, with three angles being 30 degree 30 degree and 120 degree; q1 = q2 = +5.00 mu C and q3 = +1.20 mu C. A fourth point charge. Q = +20.00 mu C is placed on the bisector of the triangle a distance 9.30 cm up from the base along the bisector. Determine the net force...
