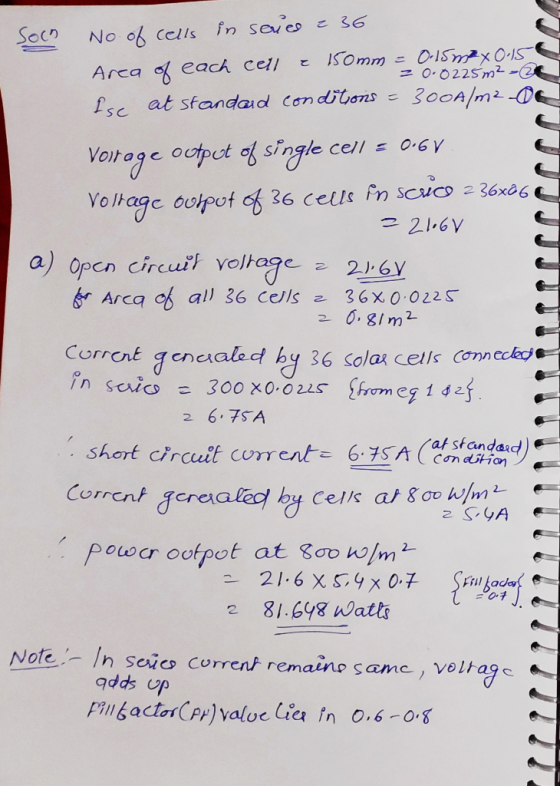

A crystalline silicon PV module has 36 cells connected in series. Each cell is square with...
A crystalline silicon PV module has 36 cells connected in
series. Each cell is square with
sides 150 mm. Assume ISC=300 A/m2 at standard conditions and the
cells have a
rectangular V-I characteristic.
(a) Estimate the open-circuit voltage, the short circuit current
and the power output of the
module at an irradiance of 800W/m2.

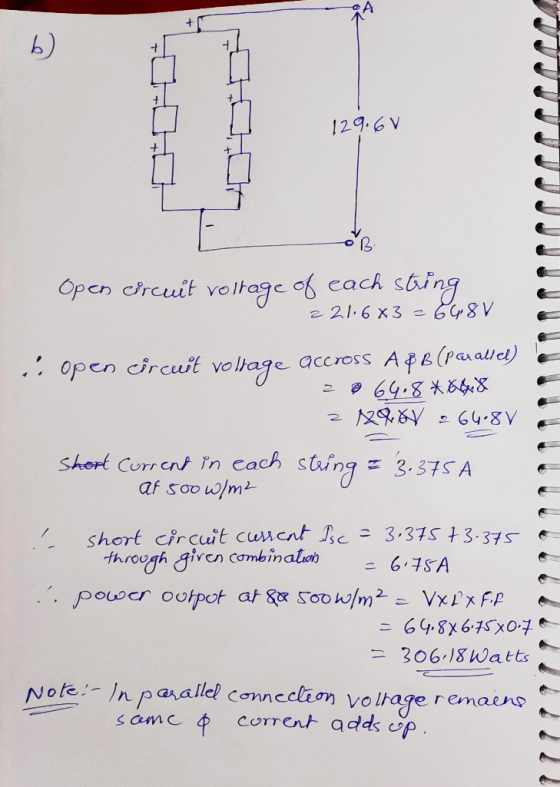

(b) A solar array is formed by six modules, three in series and two
strings in parallel. What
is the open-circuit voltage, the short circuit current and the
power output of the array at
an irradiance of 500W/m2?
Homework Answers
Add Answer to:
A crystalline silicon PV module has 36 cells connected in
series. Each cell is square with...
Explain how solar cells are connected in series within a PV module! What is the difference...
Explain how solar cells are connected in series within a PV module! What is the difference between PV modules based on crystalline silicon (m-Si or p-Si) and thin film modules based on amorphous silicon (a-Si), CdTe or CIS?
4. A PV module is made up of 100 cells in series and 10 in parallel,...
4. A PV module is made up of 100 cells in series and 10 in parallel, with 1-sun isolation (1 kW/m²), each cell has short-circuit current Isc = 3 A at 27 °C, its reverse saturation current lo = 3*10-11 A, Parallel resistance Rp = 50 ohm, and series resistance R is 0.002 ohm, calculate a) Open circuit voltage and short circuit current of the PV module b) The load power when the current of the cell is 2.8 A....
OS: A photovoltaic (PV) module is made up of 36 identical cells, all wired in series. With one sun insolation, each...
OS: A photovoltaic (PV) module is made up of 36 identical cells, all wired in series. With one sun insolation, each cell has short-circuit current ISC 3.4 A and at 25 oC its reverse saturation current is 10 =6 x 10-10 A. The system has a parallel shunt resistance RSH = 6.6 2 and series resistance RS = 0.005 2 as shown in Figure Q8. Find the voltage, current, and power delivered when the junction voltage of each cell is...
Problem 2: If a PV array has a maximum power output of 10 watts under irradiance level of 600 W/m...
sustainable energy
Problem 2: If a PV array has a maximum power output of 10 watts under irradiance level of 600 W/m2 a. What must the irradiance be to achieve a power output of 17 watts? b. Would you expect the open circuit voltage to increase or decrease? c. Would you expect the short circuit current to increase or decrease?
Problem 2: If a PV array has a maximum power output of 10 watts under irradiance level of 600 W/m2...
Q9/ A typical PV module with 36 cells in series and an area of 0.633 m2 has the following measured characteristics at reference conditions: Isc = 4.5 A, Voc = 21.4 V, Imp = 3.95 A and Vmp = 16.5 V. Th...
Q9/ A typical PV module with 36 cells in series and an area of 0.633 m2 has the following measured characteristics at reference conditions: Isc = 4.5 A, Voc = 21.4 V, Imp = 3.95 A and Vmp = 16.5 V. The temperature coefficient of the short-circuit current μI,sc and the open-circuit voltage μV,oc are 0.00026 A/K and −0.085 V/K, respectively. Determine the values of Io, IL,Rs,Rsh, and a at operation conditions (cell temperature of 67.2◦C and an incident radiation...
2.14. Problems 1. What is the efficiency of a solar PV module that has a surface...
2.14. Problems 1. What is the efficiency of a solar PV module that has a surface area of 1.2m2 and produces a 200w 2. A PV module produces 200W maximum power at 1000 W/m2. Assuming constant temperature 3. You are designing a solar car with a total roof area for solar cells of 6.4m2. Calculate the electrical power maximum power when exposed to 1200 W/m2solar irradiance? calculate the maximum power output at an irradiance level of 600 W/m2 24
You are planning to make a module with the solar cell properties of which are given...
You are planning to make a module with the solar cell properties of which are given bellow. Now answer the following questions: a. What is the field factor of this solar cell? b. What is the maximum power that can be extracted from this solar cell? c. What is the efficiency of the solar cell? d. How many solar cell you need to have approximate voltage and current of 40 V and 20 A respectively (Vmp and Imp of the...
a solar panel consisting of 64 solar cells connected in series, each with an area of...
a solar panel consisting of 64 solar cells connected in series, each with an area of 4cm^2. Solar irradiance is 950 W/m^2. The cell efficiency is 0.18. The output voltage is 6volts. A) what is the output power? B) what is the output current?
A grid-connected PV array consisting of sixteen150-W modules can be arranged in a number of serie...
A grid-connected PV array consisting of sixteen150-W modules
can be arranged in a number of series and parallel
combinations
Q3) A grid-connected PV array consisting of sixteen 150-W modules can be arranged in a number of series and parallel combinations: (16S, 1P), (8S, 2P), (4S, 4P), (2S, 8P), (1S, 16P). The array delivers power to a 2500-W inverter. The key characteristics of modules and inverter are given below. INVERTER Maximum AC power Input voltage range for MPP 250 V-550 Maximum...
Q4. Consider a PV module consisting of six identical cells with following specifications: Isc = 1A;...
Q4. Consider a PV module consisting of six identical cells with following specifications: Isc = 1A; Vocー0.6V: Rnaxー0.5W; Breakdowm Voltage =-2V Bypass Diode-1 Bypass Diode-2 Shaded cel LOAD Assume bypass diode's turn on-voltage 0.5V. Suppose one cell is fully shaded as shown in the figure. Answer the following: (a) How are the bypass diodes biased (forward or reverse) for the following conditions? (10) Operating condition Short circuit Open circuit Max power Bypass diode -1 Bypass diode -2 (b) What are...
4. A PV module is made up of 100 cells in series and 10 in parallel, with 1-sun isolation (1 kW/m²), each cell has short-circuit current Isc = 3 A at 27 °C, its reverse saturation current lo = 3*10-11 A, Parallel resistance Rp = 50 ohm, and series resistance R is 0.002 ohm, calculate a) Open circuit voltage and short circuit current of the PV module b) The load power when the current of the cell is 2.8 A....
OS: A photovoltaic (PV) module is made up of 36 identical cells, all wired in series. With one sun insolation, each cell has short-circuit current ISC 3.4 A and at 25 oC its reverse saturation current is 10 =6 x 10-10 A. The system has a parallel shunt resistance RSH = 6.6 2 and series resistance RS = 0.005 2 as shown in Figure Q8. Find the voltage, current, and power delivered when the junction voltage of each cell is...
sustainable energy
Problem 2: If a PV array has a maximum power output of 10 watts under irradiance level of 600 W/m2 a. What must the irradiance be to achieve a power output of 17 watts? b. Would you expect the open circuit voltage to increase or decrease? c. Would you expect the short circuit current to increase or decrease?
Problem 2: If a PV array has a maximum power output of 10 watts under irradiance level of 600 W/m2...
2.14. Problems 1. What is the efficiency of a solar PV module that has a surface area of 1.2m2 and produces a 200w 2. A PV module produces 200W maximum power at 1000 W/m2. Assuming constant temperature 3. You are designing a solar car with a total roof area for solar cells of 6.4m2. Calculate the electrical power maximum power when exposed to 1200 W/m2solar irradiance? calculate the maximum power output at an irradiance level of 600 W/m2 24
A grid-connected PV array consisting of sixteen150-W modules
can be arranged in a number of series and parallel
combinations
Q3) A grid-connected PV array consisting of sixteen 150-W modules can be arranged in a number of series and parallel combinations: (16S, 1P), (8S, 2P), (4S, 4P), (2S, 8P), (1S, 16P). The array delivers power to a 2500-W inverter. The key characteristics of modules and inverter are given below. INVERTER Maximum AC power Input voltage range for MPP 250 V-550 Maximum...
Q4. Consider a PV module consisting of six identical cells with following specifications: Isc = 1A; Vocー0.6V: Rnaxー0.5W; Breakdowm Voltage =-2V Bypass Diode-1 Bypass Diode-2 Shaded cel LOAD Assume bypass diode's turn on-voltage 0.5V. Suppose one cell is fully shaded as shown in the figure. Answer the following: (a) How are the bypass diodes biased (forward or reverse) for the following conditions? (10) Operating condition Short circuit Open circuit Max power Bypass diode -1 Bypass diode -2 (b) What are...
