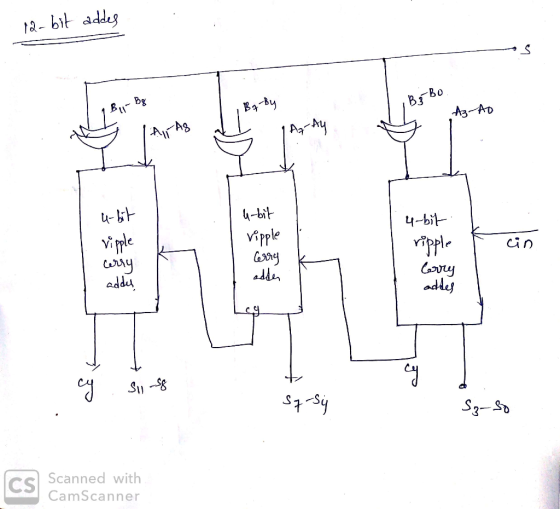

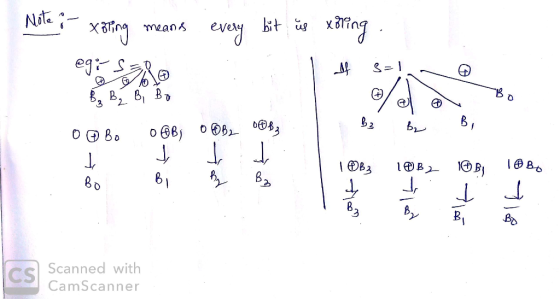

Given 4-bit ripple carry adders and logic gates (AND, OR, NOT, XOR, XNOR, NAND, NOR). Construct a 12-bit adder/subtractor from the provided components. An input S will determine the type of operation. If S=0, it should add, otherwise subtract.

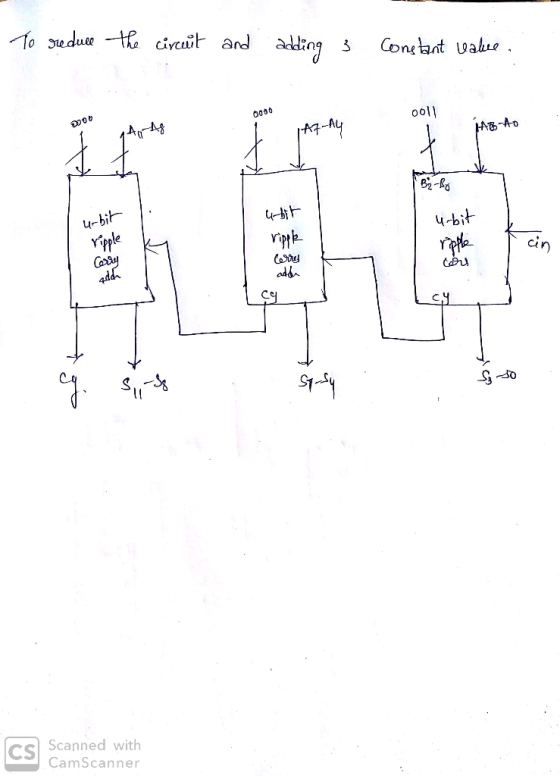

DO THIS PLEASE. Show how you can simplify the circuit if you knew the circuit would always be adding 3. Start with the 4-bit ripple carry adder, set the value on input ‘B’ to the constant 3, and then reduce the logic gates because of the constant value of 3.
