A cantilever beam has length 100μm, width 40μm, thickness 5μm, modulus of elasticity is 100GPa, density...
A cantilever beam has length 100μm, width 40μm, thickness 5μm, modulus of elasticity is 100GPa, density is 2000Kg/m3 and damping coefficient is 1E-7Ns/m.

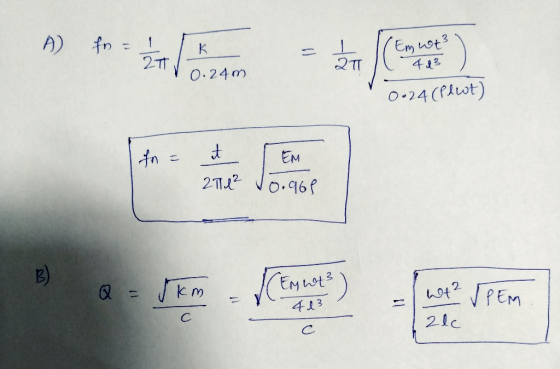

(a) What is the beams damped natural frequency?(in Hz)
b) What is the quality factor Q for the case in (a)?
Homework Answers
Add Answer to:
A cantilever beam has length 100μm, width 40μm, thickness 5μm,
modulus of elasticity is 100GPa, density...
The cantilever beam AC with length L=5 m has elasticity modulus E= 172 GPa, cross-section with...
The cantilever beam AC with length L=5 m has elasticity modulus E= 172 GPa, cross-section with moment of inertia I = 41 x 10-6 mº and supports a uniform distributed load of intensity w = 8 kN/m over half of its length and a couple moment Mo = win at the end C. W w L2 VV WWWV В x 1 1/2 1/2 C) . Matlab Mathematica Python W = 8; % kN/m L = 5;%m E = 172; %...
A load of 1 kg is applied to the tip of a cantilever beam with a width b 2.5 cm, a thickness h-1 ...
A load of 1 kg is applied to the tip of a cantilever beam with a width b 2.5 cm, a thickness h-1 mm, length L = 20 cm, moduļus E = 74 GPa, and density 2.7 gcm. What strain is experienced on the bottom surface of the strain gauge 5 cm from the fixed end?
A load of 1 kg is applied to the tip of a cantilever beam with a width b 2.5 cm, a thickness h-1 mm,...
Mechanics of Materials : Beams: 4b The cantilever beam shown below, of length L and elasticity...
Mechanics of Materials :
Beams: 4b The cantilever beam shown below, of length L and elasticity modulus E, is subjected to load W (weights) at its free end. A dial indicator (considered weightless) and other measurements concluded that the radius of curvature at distance s from the fixed end is p. Considering that the cross section of the beam is square of side b, find, in terms of E, b, L, s, p (a) the weight W; (b) the maximum...
1) A silicon cantilever beam with mass = 4 x 10-10 Kg has a spring constant...
1) A silicon cantilever beam with mass = 4 x 10-10 Kg has a spring constant of 31 N/m. Calculate the natural frequency of the beam in Hz. Assume no damping. 2) An atom in a lattice has a resonance frequency of 9.2 THz. According to quantum mechanics, what is the lowest amount of energy this oscillator can have? Express answer in J.
bridge below has a length of 30m, a width ofl5m, and a thickness of 1.5m mass...
bridge below has a length of 30m, a width ofl5m, and a thickness of 1.5m mass m-22,000 kg is ¼ of the way along the bridge, how much bending 2. The beam of the stress does it cause? PHYS 130 Car Crash (Friction) HW After a crash, a car of mass 2000kg skids to a halt along a level road. Draw a free body diagram for car A during the skid. Find the normal force between the road and the...
4. Use singularity function method to solve the problem. The cantilever beam has modulus of elasticity E and bending moment of inertia I. (1) Draw the free body diagram of the beam (2pts). (2) Fin...
4. Use singularity function method to solve the problem. The cantilever beam has modulus of elasticity E and bending moment of inertia I. (1) Draw the free body diagram of the beam (2pts). (2) Find the reactions at the supports (3pts). (3) Find the loading (intensity of load) of the beam in singularity function form (4 pts). (4) What is the vertical shear function like? (4pts) (5) Houw much is the moment? (4pts) (6) Express the elastic curve of the...
PROBLEM: A simply supported beam is subjected to a harmonic load F(t)-Fo sin ณ at mid-span as a result of the operation of a mechanical system that rotates at a constant speed n rev/min. The beam is...
PROBLEM: A simply supported beam is subjected to a harmonic load F(t)-Fo sin ณ at mid-span as a result of the operation of a mechanical system that rotates at a constant speed n rev/min. The beam is made from steel with an elasticity modulus E 29x103 ksi and specific weight 490 lb/ft3. The beam has a cross-sectional area A = 1.59 in, a moment of inertia 1 = 3.85 in, and an approximate viscous damping factor 0.05. The length between...
A beam with length L-2 m and rectangular cross-section of width b-75 mm and height h...
A beam with length L-2 m and rectangular cross-section of width b-75 mm and height h 150 mm has a uniformly distributed load of intensity q 2.5 kN/m (see figure below). What is the maximum deflection δmax in millimeters? The material is aluminum with modulus of elasticity E 70 GPa. T77
A 100 [kg] reciprocating internal combustion engine is fitted to a thin, massless beam using a...
A 100 [kg] reciprocating internal combustion engine is fitted to a thin, massless beam using a vibrations damper. It is known that a machine with a rotating unbalance experiences a frequency squared harmonic excitation. The magnitude of the rotating unbalance is A = m,e = 0.3 [kg. m). 1. Calculate the nondimensional function for the state that has a steady state amplitude of 10 [mm] at a 90 [rad/s] speed. 2- Determine the frequency ratio, natural frequency, and the beams...
1. (25 points) A simply supported beam of diameter D, length L, and modulus of elasticity E (units of N/m2)is subjected to a fluid crossflow of velocity V, density p and visosity . Its center deflect...
1. (25 points) A simply supported beam of diameter D, length L, and modulus of elasticity E (units of N/m2)is subjected to a fluid crossflow of velocity V, density p and visosity . Its center deflection δ is assumed to be a function of all these variables. Using p, L and V as the repeating variables for Buckingham's π theorem, determine the dimension!cs parameters that are involved in this relation singp l an
1. (25 points) A simply supported beam...
The cantilever beam AC with length L=5 m has elasticity modulus E= 172 GPa, cross-section with moment of inertia I = 41 x 10-6 mº and supports a uniform distributed load of intensity w = 8 kN/m over half of its length and a couple moment Mo = win at the end C. W w L2 VV WWWV В x 1 1/2 1/2 C) . Matlab Mathematica Python W = 8; % kN/m L = 5;%m E = 172; %...
A load of 1 kg is applied to the tip of a cantilever beam with a width b 2.5 cm, a thickness h-1 mm, length L = 20 cm, moduļus E = 74 GPa, and density 2.7 gcm. What strain is experienced on the bottom surface of the strain gauge 5 cm from the fixed end?
A load of 1 kg is applied to the tip of a cantilever beam with a width b 2.5 cm, a thickness h-1 mm,...
Mechanics of Materials :
Beams: 4b The cantilever beam shown below, of length L and elasticity modulus E, is subjected to load W (weights) at its free end. A dial indicator (considered weightless) and other measurements concluded that the radius of curvature at distance s from the fixed end is p. Considering that the cross section of the beam is square of side b, find, in terms of E, b, L, s, p (a) the weight W; (b) the maximum...
bridge below has a length of 30m, a width ofl5m, and a thickness of 1.5m mass m-22,000 kg is ¼ of the way along the bridge, how much bending 2. The beam of the stress does it cause? PHYS 130 Car Crash (Friction) HW After a crash, a car of mass 2000kg skids to a halt along a level road. Draw a free body diagram for car A during the skid. Find the normal force between the road and the...
4. Use singularity function method to solve the problem. The cantilever beam has modulus of elasticity E and bending moment of inertia I. (1) Draw the free body diagram of the beam (2pts). (2) Find the reactions at the supports (3pts). (3) Find the loading (intensity of load) of the beam in singularity function form (4 pts). (4) What is the vertical shear function like? (4pts) (5) Houw much is the moment? (4pts) (6) Express the elastic curve of the...
PROBLEM: A simply supported beam is subjected to a harmonic load F(t)-Fo sin ณ at mid-span as a result of the operation of a mechanical system that rotates at a constant speed n rev/min. The beam is made from steel with an elasticity modulus E 29x103 ksi and specific weight 490 lb/ft3. The beam has a cross-sectional area A = 1.59 in, a moment of inertia 1 = 3.85 in, and an approximate viscous damping factor 0.05. The length between...
A beam with length L-2 m and rectangular cross-section of width b-75 mm and height h 150 mm has a uniformly distributed load of intensity q 2.5 kN/m (see figure below). What is the maximum deflection δmax in millimeters? The material is aluminum with modulus of elasticity E 70 GPa. T77
A 100 [kg] reciprocating internal combustion engine is fitted to a thin, massless beam using a vibrations damper. It is known that a machine with a rotating unbalance experiences a frequency squared harmonic excitation. The magnitude of the rotating unbalance is A = m,e = 0.3 [kg. m). 1. Calculate the nondimensional function for the state that has a steady state amplitude of 10 [mm] at a 90 [rad/s] speed. 2- Determine the frequency ratio, natural frequency, and the beams...
1. (25 points) A simply supported beam of diameter D, length L, and modulus of elasticity E (units of N/m2)is subjected to a fluid crossflow of velocity V, density p and visosity . Its center deflection δ is assumed to be a function of all these variables. Using p, L and V as the repeating variables for Buckingham's π theorem, determine the dimension!cs parameters that are involved in this relation singp l an
1. (25 points) A simply supported beam...
