When solving bias current problems, if there is already a resistor = to Rcomp do you...

When solving bias current problems, if there is already a resistor = to Rcomp do you add any more resistance? Similarly, if there is a resistor less than Rcomp do you add more resistance. If there is a resistor greater than Rcomp do you remove resistance? I'm very confused and a written explanation would be very helpful.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

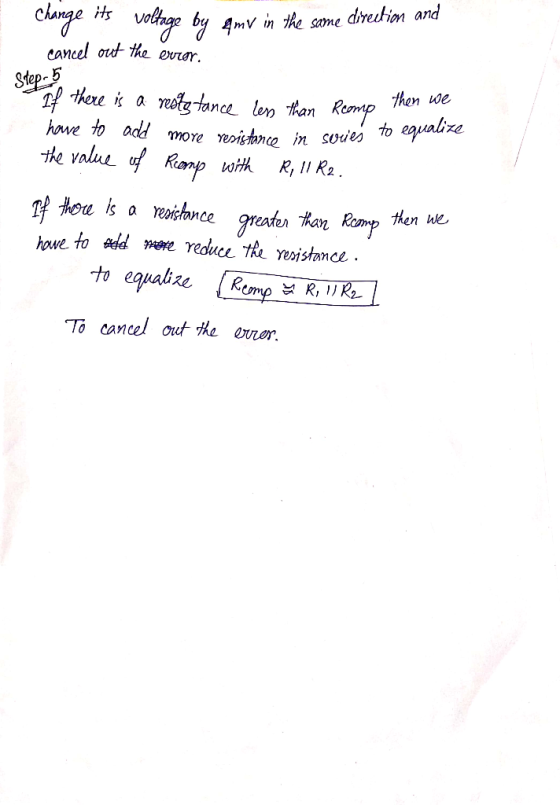

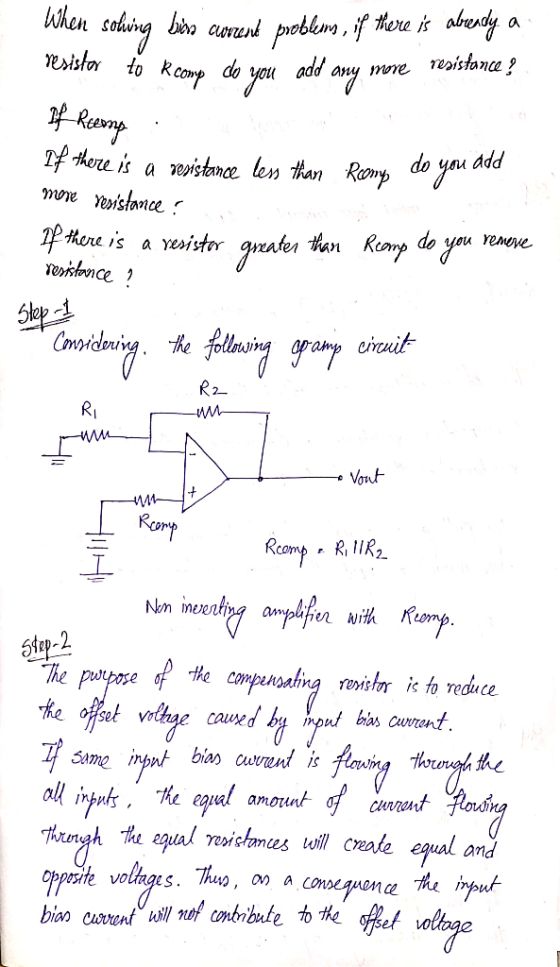

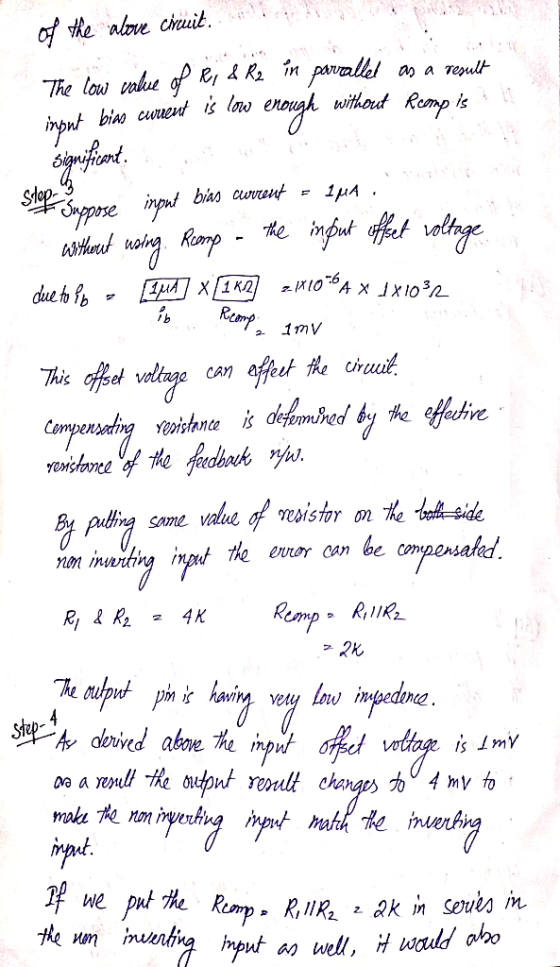

Answer #1

0 0
Add a comment
