A massless spring with a spring constant k = 22.0 N/m is hanging vertically from the...
A massless spring with a spring constant k = 22.0 N/m is hanging vertically from the ceiling neither stretched nor compressed as shown in part (1). A 0.45-kg ball is attached to its free end, then slowly lowered to its equilibrium (E) position (2). Finally, the ball is pulled down a distance of 15.0 cm before being released (3).
a) Using the provided information derive the algebraic
expression for the stretched distance in the
spring while at equilibrium.
b) Calculate the stretched distance of the spring while at
equilibrium.
c) What is the amplitude and the period of oscillation of the
SHO?
d) Use the table below to compute the kinetic energy, the
gravitational potential energy, and the elastic potential energy of
the system at points (B), (E) and (T). Use the lowest point (B) to
be the reference point of measurement for the gravitational
potential energy.

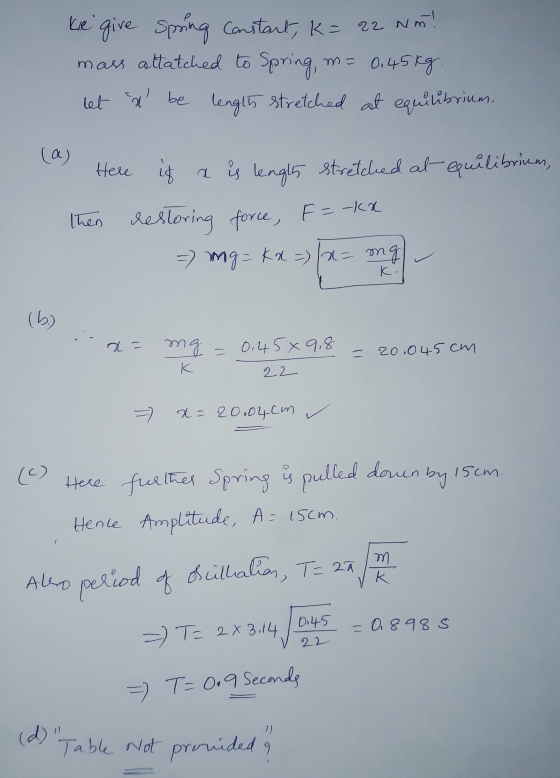

Homework Answers
Add Answer to:
A massless spring with a spring constant k = 22.0 N/m is hanging
vertically from the...
A massless spring is hanging vertically from the ceiling. A mass m is attached to the...
A massless spring is hanging vertically from the ceiling. A mass m is attached to the bottom end of the spring and released from rest. How close to its final resting position is the mass when βt = 1 given that the mass finally comes to rest a distance d below the point from which it was released and the oscillator is critically damped.
A 500 g ball is placed on a Hooke's Law spring (k = 20.0 N/m) which...
A 500 g ball is placed on a Hooke's Law spring (k = 20.0 N/m) which hangs vertically from a ceiling. See figure. Initially, the ball is 1.75 m above the floor and the spring is compressed 50.0 cm. When released, the ball moves down. Take y= 0 at ground level. 1.75 m (a) Find the initial elastic and gravitational potential energies. (b) Find the elastic and gravitational potential energies when the spring is at its unstretched (relaxed) length. find...
9. A spring with spring constant 8000 N/m sits vertically on a horizontally surface. The spring...
9. A spring with spring constant 8000 N/m sits vertically on a horizontally surface. The spring has an equilibrium length of 20 cm. A 3.0 kg ball is pushed down so that the spring is compressed by 12 cm and released from rest. You may neglect the effects of air resistance. eq. 20 cm 12 cm a. How much energy must you supply the system to compress the spring by 12 cm? Remember to include both gravitational and spring potential...
Consider a vertical spring with spring constant 23.45 N/m hanging from the ceiling. A small object...
Consider a vertical spring with spring constant 23.45 N/m hanging from the ceiling. A small object with mass kg is added to the spring and the spring stretches to its equilibrium position. The object is then pulled down and released. The speed of the object a distance 8.815 cm from the equilibrium point is 2.580 times 10^-1 m/s. How far was the object pulled down? (in m) 1.401 times 10^-2 1.863 times 10^-2 2.477 times 10^-2 3.295 times 10^-2 4.382...
Suppose you have a spring with a force constant of 42.5 N/m. How much is the...
Suppose you have a spring with a force constant of 42.5 N/m. How much is the spring stretched, in meters, by an object with a mass of 0.49 kg that is hanging from the spring at rest? Calculate the change in gravitational potential energy, in joules, of the 0.49-kg object when it descends this distance. Calculate the energy, in joules, stored in the spring when it is stretched this amount. Apparently, not all of the gravitational potential energy went into...
A massless spring of a spring gun has a force constant k=800 N/m. A ball of...
A massless spring of a spring gun has a force constant k=800 N/m. A ball of mass 0.5 kg is resting on top of the spring. The ball compresses the spring by d as shown in the right figure. When the gun is fired vertically, the ball reached a maximum height of 5 m from the top of the spring as it returns to its natural length. Calculate how much the spring was initially compressed (d). (a) 12 cm; (b)...
A spring has a force constant k=500 N/m. What is the elastic potential energy stored in...
A spring has a force constant k=500 N/m. What is the elastic potential energy stored in it when (a) it is stretched 4.00 cm from equilibrium, (b) it is compressed 3.00 cm from equilibrium, and (c) it is unstretched?
1. a For a spring with k = 20.0 N/m and hanging mass 100g, what is...
1. a For a spring with k = 20.0 N/m and hanging mass 100g, what is the angular frequency, w, of any simple harmonic oscillation process? b. For the spring system in question 1a, if you displace the hanging mass by 0.20 m and then allow the spring to oscillate, at what speed will the hanging mass pass the equilibrium position during each oscillation? You may assume that the spring is massless and is oscillating in a vacuum on the...
Consider a mass m suspended from a massless spring that obeys Hooke's Law (i.e. the force...
Consider a mass m suspended from a massless spring that obeys Hooke's Law (i.e. the force required to stretch or compress it is proportional to the distance stretched/compressed). The kinetic energy T of the system is mv2/2, where v is the velocity of the mass, and the potential energy V of the system is kr-/2, where k is the spring constant and x is the displacement of the mass from its gravitational equilibrium position. Using Lagrange's equations for mechanics (with...
A spring is hung from the ceiling. A mass of m is added to the end...
A spring is hung from the ceiling. A mass of m is added to the end of the spring and is then slowly lowered until equilibrium is reached. At this point the bottom of the mass has been lowered a distance of h Answer the following question in terms of m, h and g How much energy is stored in the spring when equilibrium is reached. Please explain
A 500 g ball is placed on a Hooke's Law spring (k = 20.0 N/m) which hangs vertically from a ceiling. See figure. Initially, the ball is 1.75 m above the floor and the spring is compressed 50.0 cm. When released, the ball moves down. Take y= 0 at ground level. 1.75 m (a) Find the initial elastic and gravitational potential energies. (b) Find the elastic and gravitational potential energies when the spring is at its unstretched (relaxed) length. find...
9. A spring with spring constant 8000 N/m sits vertically on a horizontally surface. The spring has an equilibrium length of 20 cm. A 3.0 kg ball is pushed down so that the spring is compressed by 12 cm and released from rest. You may neglect the effects of air resistance. eq. 20 cm 12 cm a. How much energy must you supply the system to compress the spring by 12 cm? Remember to include both gravitational and spring potential...
Consider a vertical spring with spring constant 23.45 N/m hanging from the ceiling. A small object with mass kg is added to the spring and the spring stretches to its equilibrium position. The object is then pulled down and released. The speed of the object a distance 8.815 cm from the equilibrium point is 2.580 times 10^-1 m/s. How far was the object pulled down? (in m) 1.401 times 10^-2 1.863 times 10^-2 2.477 times 10^-2 3.295 times 10^-2 4.382...
Consider a mass m suspended from a massless spring that obeys Hooke's Law (i.e. the force required to stretch or compress it is proportional to the distance stretched/compressed). The kinetic energy T of the system is mv2/2, where v is the velocity of the mass, and the potential energy V of the system is kr-/2, where k is the spring constant and x is the displacement of the mass from its gravitational equilibrium position. Using Lagrange's equations for mechanics (with...
