A low-pass signal with a bandwidth of 250 KHz was sampled at the Nyquist rate using...
A low-pass signal with a bandwidth of 250 KHz was sampled at the Nyquist rate using 512 levels of quantization to generate a PCM signal.

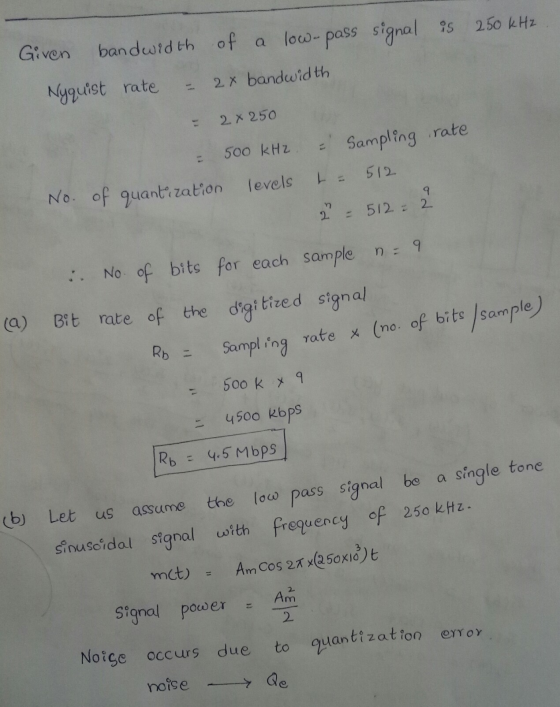

a) Calculate the bit rate of the digitized signal

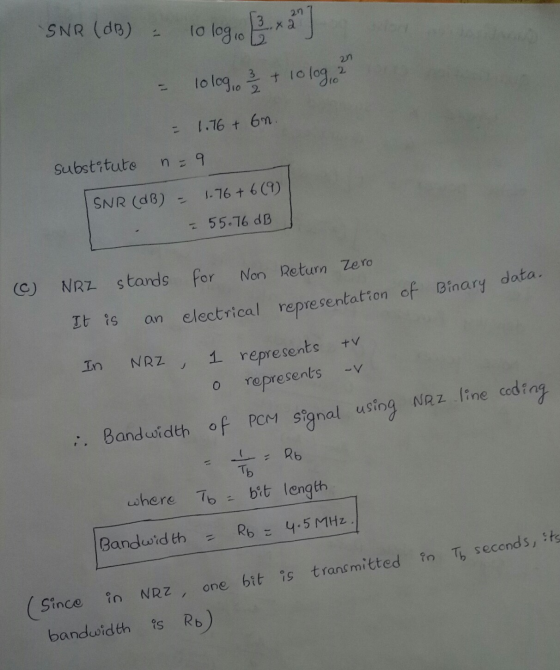

b) Calculate the quantization error as SNR(db)
c) What is the bandwidth of the PCM signal if it was sent using NRZ line coding?
Homework Answers

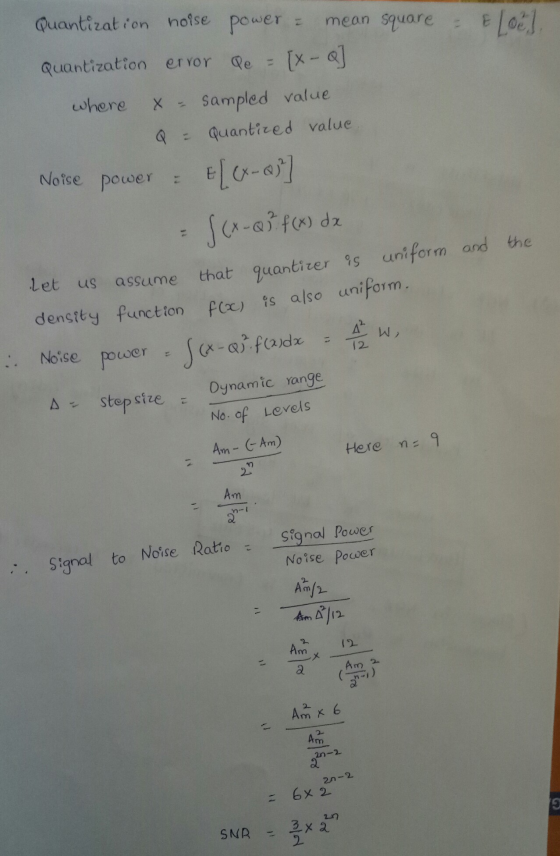

Quantizer is assumed uniform and hence, the quantization noise
power is calculated.
Add Answer to:
A low-pass signal with a bandwidth of 250 KHz was sampled at the
Nyquist rate using...
Suppose we want to digitize a low-pass analog signal with a bandwidth of 20 KHz and...
Suppose we want to digitize a low-pass analog signal with a bandwidth of 20 KHz and then transmit the digitized signal through a 128 Kbps link. What would be the SNR (dB) as a result of quantization error?
A video signal has bandwidth of 4 MHz. This signal is sampled, quantized, and binary encoded...
A video signal has bandwidth of 4 MHz. This signal is sampled, quantized, and binary encoded using the PCM technique. The video signal amplitude is uniformly distributed in the range (-2, 2). If the signal is sampled at the Nyquist rate and quantized into 512 levels: (a) Determine the bit rate. (b) Determine the signal-to-quantization-noise ratio. (©) If the signal-to-quantization-noise ratio must be increased by a factor of 16, how you can achieve that? Will this affect the bit rate?...
*5. Suppose an analog signal has an absolute bandwidth of 10 KHz. It is sampled at...
*5. Suppose an analog signal has an absolute bandwidth of 10 KHz. It is sampled at the Nyquist rate and converted to a digital signal using an A/D converter such that the output signal-to-quantization noise ratio is at least 40 dB. Using your engineering judgment, choose the number of bits for the A/D converter and determine the bit rate (i.e., the number of bits/sec).
(5) A PCM system encodes samples using an 8-bit ADC. In the case of peak signal...
(5) A PCM system encodes samples using an 8-bit ADC. In the case of peak signal amplitude, estimate the signal to quantization noise ratio in dB (6) The output SQNR of a 10-bit PCM was found to be insufficient at 30 dB. To achieve the desired SQNR of 42 dB, an increase to the number of quantization levels was needed. Determine the fractional increase in the transmission bandwidth required. (7) A signal x(t) band-limited to 3kHz is sampled at a...
Answer all parts and show all steps please. 3323 Modern Digital and Analog Communication Question A...
Answer all parts and show all steps please.
3323 Modern Digital and Analog Communication Question A compact disc (CD) records audio signals digitally by using PCM. Assume that the audio signal bandwidth equals 15 kHz (a) If signal is sampled at the Nyquist rate and the samples are uniformly digitized into L 65,536 levels and then binary-coded, determine the number of bits required to encode a sample (b) If the audio signal has average power of 0.1 W and a...
3.(30 points) Pulse Code Modulation A-to-D Ideal Lowf Pass Filter xit)- #x) cos(2rfet) (10 points...
3.(30 points) Pulse Code Modulation A-to-D Ideal Lowf Pass Filter xit)- #x) cos(2rfet) (10 points) Consider the system in the above figure. The ideal low pass filter is one which has a brick-wall frequency response (or an ideal sinc function for its impulse response). If the bandwidth of the ideal low pass filter is IkHz and B 2kHz is the bandwidth of a bandpass signal x(t) that is centered at fo 19700Hz, determine the minimum sampling rate fs to avoid...
In a single-integration DM system, the voice signal is sampled at a rate of 64 kHz,...
In a single-integration DM system, the voice signal is sampled at a rate of 64 kHz, similar to PCM. The maximum signal amplitude is normalized as Amax1 (a) Determine the minimum value of the step size ? to avoid slope overload (b) Determine the granular noise power No if the voice signal bandwidth is 3.4 kHz. (c) Assuming that the voice signal is sinusoidal, determine So and the SNR. (d) Assuming that the voice signal amplitude is uniformly distributed in...
5.2-1 A compact dise (CD) records audio signals digitlly by using PCM. Let the au bandwidth...
5.2-1 A compact dise (CD) records audio signals digitlly by using PCM. Let the au bandwidth be 15 kHz. (a) If the Nyquist samples are uniformly quantized into L 65,5 (b) If the audio signal has average power of 0.1 W and peak voltage of 1 V, find the resulting (c) Determine the number of binary digits per second (bit/s) required to encode the audico (d) For practical reasons discussed in the text, signals are sampled at a rate well...
Question 1 A given message signal, x (t), with bandwidth of 5 kHz, power of Watts,...
Question 1 A given message signal, x (t), with bandwidth of 5 kHz, power of Watts, and Tmaz 1 V, will be transmitted using a PCM system. If sampling is done at the Nyquist rate and a uniform quantizer with 32 levels is employed (a) What is the resulting SQNR? (b) What is the resulting bit rate?
2) An analog video signal with a bandwidth of 5 MHz. is sampled at one and...
2) An analog video signal with a bandwidth of 5 MHz. is sampled at one and half times the Nyquist rate. The signal is then quantized using a uniform quantizer. The resulting output is then sent over a channel with a bandwidth of 94 MHz. using binary PAM with a raised cosine pulse with a roll-off factor of α = 0.25 a) Find the maximum number of quantiozation levels possible (2 Marks) b) Find the resulting Signal-to-Quantization-Noise Ratio (make any...
A video signal has bandwidth of 4 MHz. This signal is sampled, quantized, and binary encoded using the PCM technique. The video signal amplitude is uniformly distributed in the range (-2, 2). If the signal is sampled at the Nyquist rate and quantized into 512 levels: (a) Determine the bit rate. (b) Determine the signal-to-quantization-noise ratio. (©) If the signal-to-quantization-noise ratio must be increased by a factor of 16, how you can achieve that? Will this affect the bit rate?...
*5. Suppose an analog signal has an absolute bandwidth of 10 KHz. It is sampled at the Nyquist rate and converted to a digital signal using an A/D converter such that the output signal-to-quantization noise ratio is at least 40 dB. Using your engineering judgment, choose the number of bits for the A/D converter and determine the bit rate (i.e., the number of bits/sec).
(5) A PCM system encodes samples using an 8-bit ADC. In the case of peak signal amplitude, estimate the signal to quantization noise ratio in dB (6) The output SQNR of a 10-bit PCM was found to be insufficient at 30 dB. To achieve the desired SQNR of 42 dB, an increase to the number of quantization levels was needed. Determine the fractional increase in the transmission bandwidth required. (7) A signal x(t) band-limited to 3kHz is sampled at a...
Answer all parts and show all steps please.
3323 Modern Digital and Analog Communication Question A compact disc (CD) records audio signals digitally by using PCM. Assume that the audio signal bandwidth equals 15 kHz (a) If signal is sampled at the Nyquist rate and the samples are uniformly digitized into L 65,536 levels and then binary-coded, determine the number of bits required to encode a sample (b) If the audio signal has average power of 0.1 W and a...
3.(30 points) Pulse Code Modulation A-to-D Ideal Lowf Pass Filter xit)- #x) cos(2rfet) (10 points) Consider the system in the above figure. The ideal low pass filter is one which has a brick-wall frequency response (or an ideal sinc function for its impulse response). If the bandwidth of the ideal low pass filter is IkHz and B 2kHz is the bandwidth of a bandpass signal x(t) that is centered at fo 19700Hz, determine the minimum sampling rate fs to avoid...
In a single-integration DM system, the voice signal is sampled at a rate of 64 kHz, similar to PCM. The maximum signal amplitude is normalized as Amax1 (a) Determine the minimum value of the step size ? to avoid slope overload (b) Determine the granular noise power No if the voice signal bandwidth is 3.4 kHz. (c) Assuming that the voice signal is sinusoidal, determine So and the SNR. (d) Assuming that the voice signal amplitude is uniformly distributed in...
5.2-1 A compact dise (CD) records audio signals digitlly by using PCM. Let the au bandwidth be 15 kHz. (a) If the Nyquist samples are uniformly quantized into L 65,5 (b) If the audio signal has average power of 0.1 W and peak voltage of 1 V, find the resulting (c) Determine the number of binary digits per second (bit/s) required to encode the audico (d) For practical reasons discussed in the text, signals are sampled at a rate well...
Question 1 A given message signal, x (t), with bandwidth of 5 kHz, power of Watts, and Tmaz 1 V, will be transmitted using a PCM system. If sampling is done at the Nyquist rate and a uniform quantizer with 32 levels is employed (a) What is the resulting SQNR? (b) What is the resulting bit rate?
2) An analog video signal with a bandwidth of 5 MHz. is sampled at one and half times the Nyquist rate. The signal is then quantized using a uniform quantizer. The resulting output is then sent over a channel with a bandwidth of 94 MHz. using binary PAM with a raised cosine pulse with a roll-off factor of α = 0.25 a) Find the maximum number of quantiozation levels possible (2 Marks) b) Find the resulting Signal-to-Quantization-Noise Ratio (make any...
