Three charges are placed on the x axis. The position of two of the charges are...
Three charges are placed on the x axis. The position of two of the charges are listed
q1 = 5.0 nC is at x = 0 cm
q2 = -9.0 nC is at x = 8 cm
Assume the charges do not move from their appointed positions.

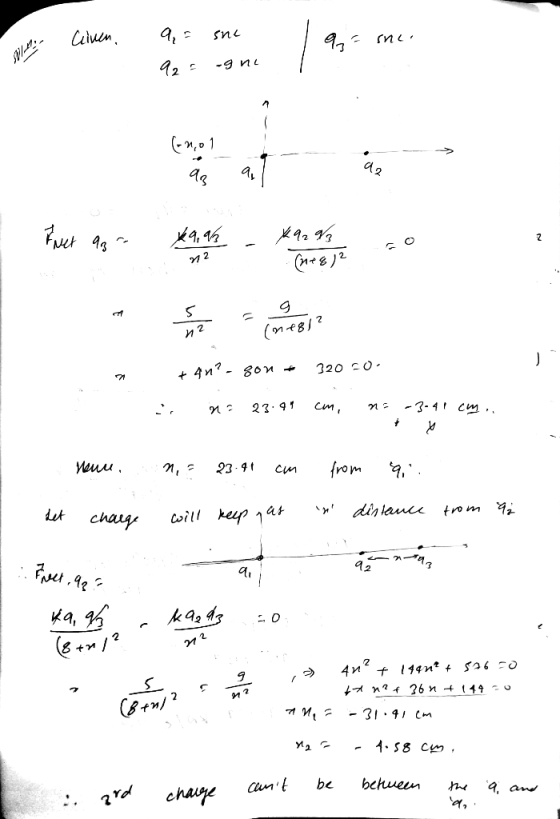

a) At what values of x can a third charge (q3 = 5 nC) be placed so that the force on it = 0 N?
If there is more than one answer for for the previous section, for the rest of the problem, assume the third charge is at the lower value of x.

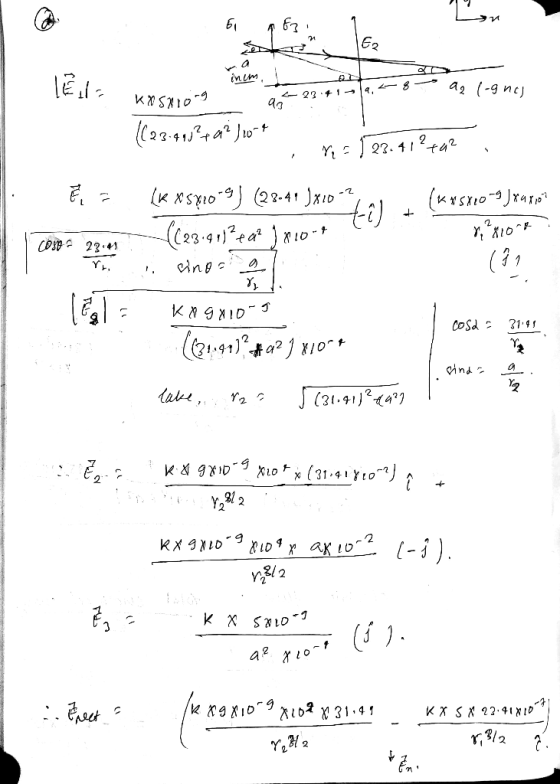

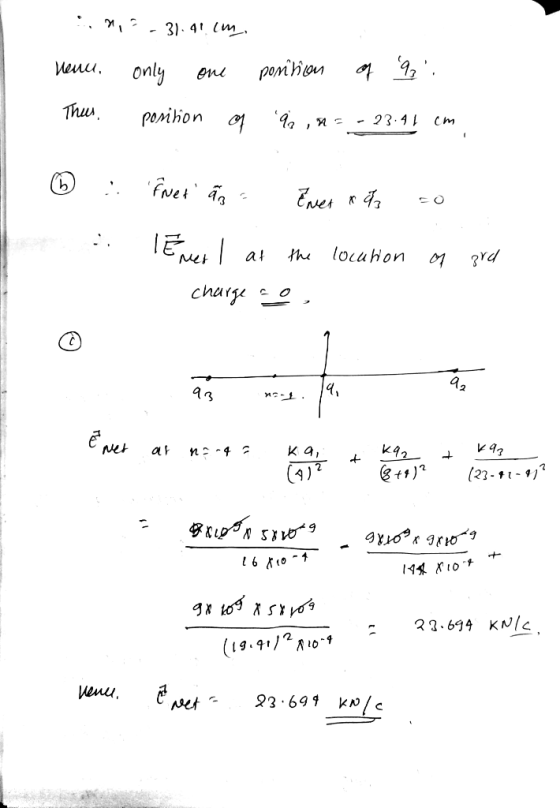

b) What is the magnitude of the electric field from the first two charges at the location of the third charge?
c) What is the magnitude of the electric field at x = -4 cm?
d) What is the magnitude of the electric field directly above q3?

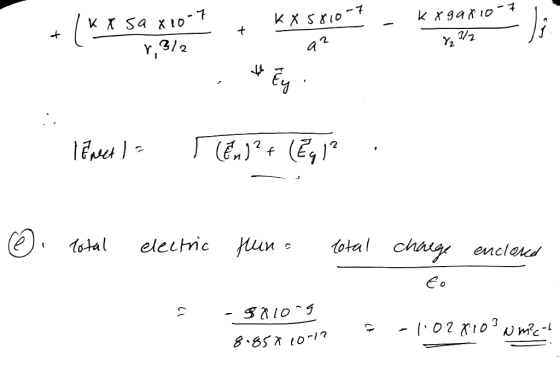

e) If there is a Gaussian sphere with a radius of 4 cm surrounding q2, then what is the total electric flux through the surface of the sphere from all three charges?
Homework Answers
Add Answer to:
Three charges are placed on the x axis. The position of two of
the charges are...
[25.3] Given the two charges on the x-axis, as seen in the diagram below 3 C -8 C where to the right is positive, and...
[25.3] Given the two charges on the x-axis, as seen in the
diagram below 3 C -8 C
where to the right is positive, and the numbers above the axis
are in C. The 3 C (q1) charge's position is fixed at x = 0 m, and
the -8 C (q2) charge's position is fixed at x = 20 m. An additional
negative charge (q3 = -5 nC) is placed so the net force on it = 0
N. If...
Two point charges are placed on the x-axis as follows: Charge q1= 3.90 nC is located...
Two point charges are placed on the x-axis as follows: Charge q1= 3.90 nC is located at x = 0.225m, and charge q2=4.75 nC is at x=-0.295 m. (a) What are the magnitude and direction of the net electric field exerted by these two charges on the origin? (b) What is the voltage (electrostatic potential) at the origin? (c) What is the magnitude and direction of the electrostatic force that acts on a negative point charge q3= -0.610 nC placed...
A point charge q1 = 4.00 nC is placed at the origin, and a second point charge q2 = -2.90 nC is placed on the x-axis at x=+ 20.5 cm
A point charge q1 = 4.00 nC is placed at the origin, and a second point charge q2 = -2.90 nC is placed on the x-axis at x=+ 20.5 cm . A third point charge q3 = 1.90 nC is to be placed on the x-axis between q1 and q2. (Take as zero the potential energy of the three charges when they are infinitely far apart.)a) What is the potential energy of the system of the three charges if q3...
can you explain that to me ? Two electric charges are placed on the x=axis. One...
can you explain that to me ?
Two electric charges are placed on the x=axis. One (q1= + 8muC) is located at the origin, and the second charge (q2=-4muC) is located at x=1.25m. A third charge (q3=+20muC) is placed at x=2m. What is the net electric force on charge q3? What is the net electric field experienced by charge q3? In which region of the x-axis should we place q3 so that the net electric force on it equals zero?...
Three point charges are located on the positive x-axis of a coordinate system. charge q1 1.5...
Three point charges are located on the positive x-axis of a coordinate system. charge q1 1.5 nC is 2.0 cm from the origin, charge q2 -2.0 nC is 4.0 cm from the origin and charge q3 -5.0 nC located at the origin. What is the net force ((a)magnitude and (b) direction) on charge q1.5 nC exerted by the other two charges?
Please show all work:) (a) Three point charges are placed along the y-axis, with charge ql...
Please show all work:)
(a) Three point charges are placed along the y-axis, with charge ql -3 HC charge at (0,0,0) m, q2 --4-uC at (0,-4,0) m, and q3 -2 uC at (0,3,0) m. What is the net electrostatic force on q3? Answer:0.0045N0) (b) Two point charges are placed along the x-axis, with charge q 3 nC charge at (50,0,0) cm, and q2--4-nC at (0,0,0) cm. At what location along the x-axis, other than infinity, can another charge q3-2 nC...
Two point charges are placed on the x axis. (Figure 1)The first charge, q1 = 8.00...
Two point charges are placed on the x axis. (Figure 1)The first charge, q1 = 8.00 nC , is placed a distance 16.0 m from the origin along the positive x axis; the second charge, q2 = 6.00 nC , is placed a distance 9.00 m from the origin along the negative x axis. Part A Part complete Calculate the electric field at point A, located at coordinates (0 m, 12.0 m ). Give the x and y components of...
Two point charges are placed on the x-axis as follows: charge q1 = 4.04 nC is...
Two point charges are placed on the x-axis as follows: charge q1 = 4.04 nC is located at x= 0.203 m , and charge q2 = 5.04 nC is at x= -0.296 m .What is the magnitude of the total force exerted by these two charges on a negative point charge q3 = -6.03 nC that is placed at the origin?
Two charges are placed on the x axis. One of the charges (q1 = +9.0 µC)...
Two charges are placed on the x axis. One of the charges (q1 = +9.0 µC) is at x1 = +2.8 cm and the other (q2 = -19 µC) is at x2 = +9.9 cm. (a) Find the net electric field (magnitude and direction) at x = 0 cm. (Use the sign of your answer to indicate the direction along the x-axis.) (b) Find the net electric field (magnitude and direction) at x = +5.9 cm. (Use the sign of...
Three point charges are located on the positive x-axis of a coordinate system. Charge q1 =...
Three point charges are located on the positive x-axis of a coordinate system. Charge q1 = 1.5 nC is 2.0 cm from the origin, charge q2 = -3.0 nC is 4.0 cm from the origin and charge q3 = 5.5 nC located at the origin. What is the net force ((a)magnitude and (b) direction) on charge q1 = 1.5 nC exerted by the other two charges?
[25.3] Given the two charges on the x-axis, as seen in the
diagram below 3 C -8 C
where to the right is positive, and the numbers above the axis
are in C. The 3 C (q1) charge's position is fixed at x = 0 m, and
the -8 C (q2) charge's position is fixed at x = 20 m. An additional
negative charge (q3 = -5 nC) is placed so the net force on it = 0
N. If...
can you explain that to me ?
Two electric charges are placed on the x=axis. One (q1= + 8muC) is located at the origin, and the second charge (q2=-4muC) is located at x=1.25m. A third charge (q3=+20muC) is placed at x=2m. What is the net electric force on charge q3? What is the net electric field experienced by charge q3? In which region of the x-axis should we place q3 so that the net electric force on it equals zero?...
Three point charges are located on the positive x-axis of a coordinate system. charge q1 1.5 nC is 2.0 cm from the origin, charge q2 -2.0 nC is 4.0 cm from the origin and charge q3 -5.0 nC located at the origin. What is the net force ((a)magnitude and (b) direction) on charge q1.5 nC exerted by the other two charges?
Please show all work:)
(a) Three point charges are placed along the y-axis, with charge ql -3 HC charge at (0,0,0) m, q2 --4-uC at (0,-4,0) m, and q3 -2 uC at (0,3,0) m. What is the net electrostatic force on q3? Answer:0.0045N0) (b) Two point charges are placed along the x-axis, with charge q 3 nC charge at (50,0,0) cm, and q2--4-nC at (0,0,0) cm. At what location along the x-axis, other than infinity, can another charge q3-2 nC...
