System Transfer function/block diagrams questions

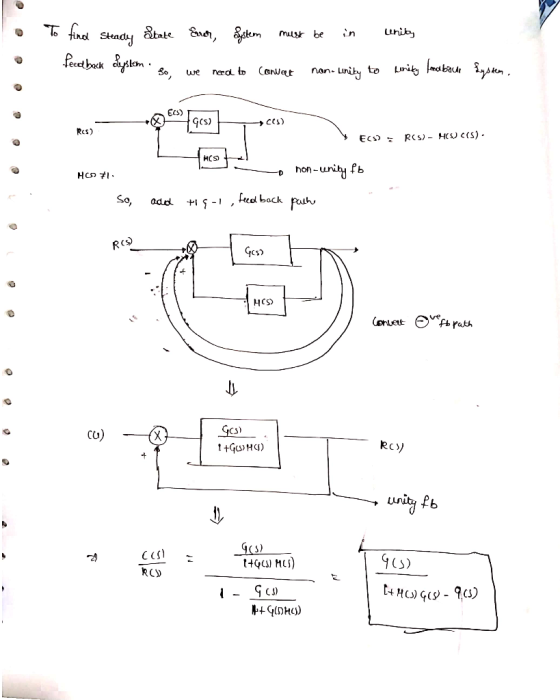

Q1) how to convert non-unity feedback to unity feedback?

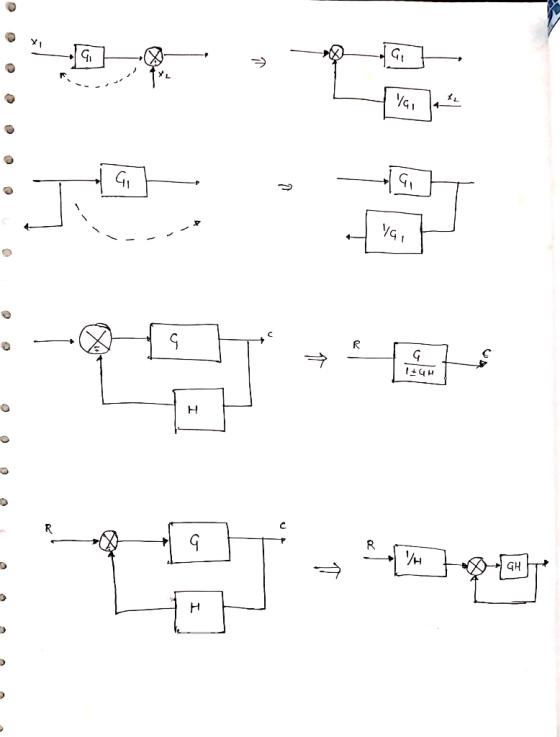

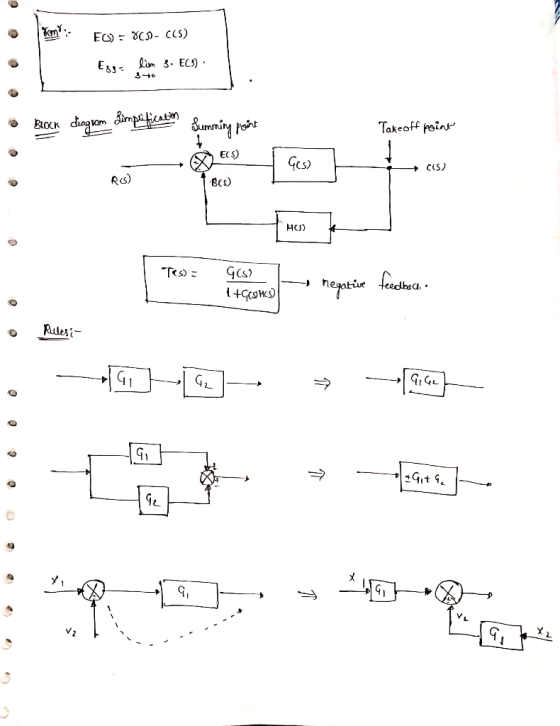

Q2) What are the steps for block diagram simplification ? For example, a system with a lot of controllers, summers, branchoff points, how should I simplify to a standard feedback loop to find transfer function?

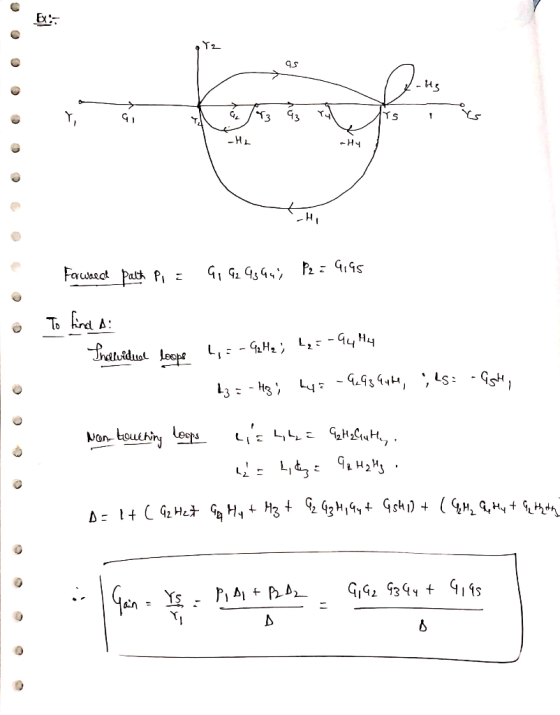

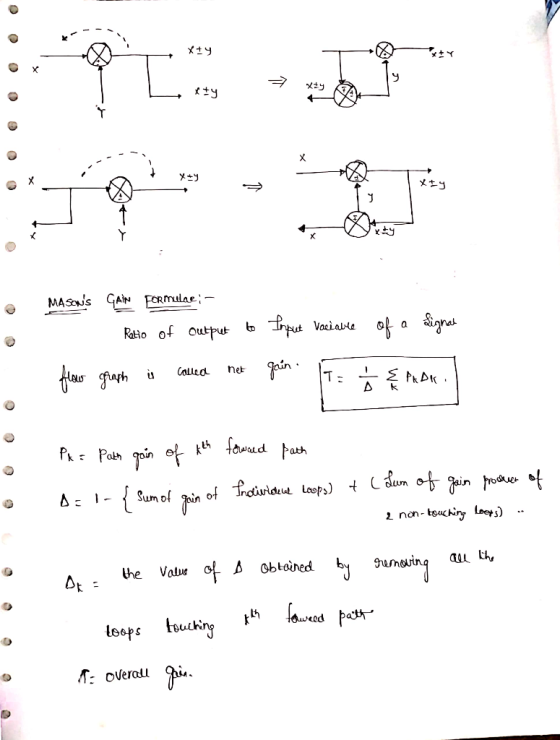

Q3) Explain Mason's transfer function formula
Homework Answers
