how is the number of loops related to the maximum induced emf in the coil (proportional,...

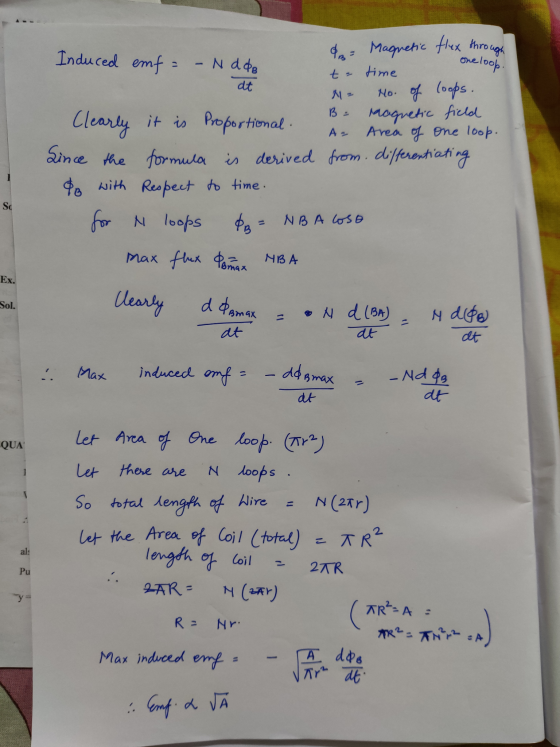

how is the number of loops related to the maximum induced emf in the coil (proportional, inverse, squared, et cetera)? and why?
Since the number of loops is directly proportional to the total area of the coil, how is the total area of the coil related to the maximum induced emf? and Why?
Homework Answers
Add Answer to:
how is the number of loops related to the maximum
induced emf in the coil (proportional,...
What is the relationship between the number of coils in a solenoid and the emf induced...
What is the relationship between the number of coils in a solenoid and the emf induced in it by a change in the magnetic flux through the solenoid? a. The induced emf is inversely proportional to the number of coils in a solenoid. b. The induced emf is directly proportional to the number of coils in a solenoid. c. The induced emf is inversely proportional to the square of the number of coils in a solenoid. d. The induced emf...
A coil consists of five loops of wire, each with an area of 0.20 m2. The...
A coil consists of five loops of wire, each with an area of 0.20 m2. The coil is oriented with its plane perpendicular to a magnetic field that increases uniformly from 1 x 10-2 T to 2.5 x 10-2 T in a time of 5 x 10-3 s. (a) What is the induced emf in the coil? (b) If the total resistance of the coil is 5 Ω, what the current induced in the coil?
Calculate the maximum emf induced in a square (3.7 cm X 3.7 cm) coil with 35...
Calculate the maximum emf induced in a square (3.7 cm X 3.7 cm) coil with 35 turns, if it spins at a frequency of 52 Hz in an external magnetic field of 0.84 T.
1) Induced emf in a coil depends on a) Relative motion of magnet b) Relative motion...
1) Induced emf in a coil depends on a) Relative motion of magnet b) Relative motion of coil c) Both d) None 2) When is passed through coil is there magnet a a (changing/unchanging) magnetic flux through the coil that induces an electromotive force(emf) in the coil; the incoming flux is (equal /not equal)to the outgoing flux. 3) While a magnet is moved toward the end of a solenoid, a voltage difference is induced between the two ends of the...
The maximum induced emf in a generator rotating at 230 rpm is 35 V . How...
The maximum induced emf in a generator rotating at 230 rpm is 35 V . How fast must the rotor of the generator rotate if it is to generate a maximum induced emf of 60 V ? Express your answer using two significant figures.
How is the electric field that accompanies a changing magnetic field related to the induced emf...
How is the electric field that accompanies a changing magnetic field related to the induced emf in the region of changing magnetic flux?
how would I solve 7 and 8? A rectangular coil of wire is situated in a...
how would I solve 7 and 8?
A rectangular coil of wire is situated in a constant magnetic field whose magnitude is 0.5 T. The coil has an area of 2.0 m2. Determine the magnetic flux for the three orientations, θ e-90. [I Wb @0-0 0.5 Wb @e 60,0 Wb @0-0 7. 00, θ 8. A coil of radius 0.5 m consisting of 1000 loops is placed in a 500 mT magnetic field such that the flux is maximum. The...
2 pt The maximum induced emf in a generator ro 400 rad/s is 100 V. How...
2 pt The maximum induced emf in a generator ro 400 rad/s is 100 V. How fast must the rotor of the generato tate if it is to generate a maximum induced emf of 110 V? n units of rad/s) CO 282 GO 688 D。352 DO 352 AO 180, EO 440. BO 225 FO 550. HO 859
a. A 117‑turn circular coil of radius 2.63 cm and negligible resistance is immersed in a...
a. A 117‑turn circular coil of radius 2.63 cm and negligible resistance is immersed in a uniform magnetic field that is perpendicular to the plane of the coil. The coil is connected to a 16.7 Ω16.7 Ω resistor to create a closed circuit. During a time interval of 0.125 s,, the magnetic field strength decreases uniformly from 0.447 T to zero. Find the energy, in millijoules, that is dissipated in the resistor during this time interval. b. Mindy, a medical device...
Both please :) 20 Mindy, a medical device engineer, is designing an apparatus to monitor the...
Both please :)
20 Mindy, a medical device engineer, is designing an apparatus to monitor the breathing of a patient. The apparatus consists of a stretchable loop of conductive material wrapped in a small band around the patient's chest. A constant uniform external magnetic field is produced by a nearby solenoid. As the patient inhales, his chest expands, stretching the chest band. The resulting increase in the area of the loop causes an emf to be induced in the loop....
1) Induced emf in a coil depends on a) Relative motion of magnet b) Relative motion of coil c) Both d) None 2) When is passed through coil is there magnet a a (changing/unchanging) magnetic flux through the coil that induces an electromotive force(emf) in the coil; the incoming flux is (equal /not equal)to the outgoing flux. 3) While a magnet is moved toward the end of a solenoid, a voltage difference is induced between the two ends of the...
How is the electric field that accompanies a changing magnetic field related to the induced emf in the region of changing magnetic flux?
how would I solve 7 and 8?
A rectangular coil of wire is situated in a constant magnetic field whose magnitude is 0.5 T. The coil has an area of 2.0 m2. Determine the magnetic flux for the three orientations, θ e-90. [I Wb @0-0 0.5 Wb @e 60,0 Wb @0-0 7. 00, θ 8. A coil of radius 0.5 m consisting of 1000 loops is placed in a 500 mT magnetic field such that the flux is maximum. The...
2 pt The maximum induced emf in a generator ro 400 rad/s is 100 V. How fast must the rotor of the generato tate if it is to generate a maximum induced emf of 110 V? n units of rad/s) CO 282 GO 688 D。352 DO 352 AO 180, EO 440. BO 225 FO 550. HO 859
Both please :)
20 Mindy, a medical device engineer, is designing an apparatus to monitor the breathing of a patient. The apparatus consists of a stretchable loop of conductive material wrapped in a small band around the patient's chest. A constant uniform external magnetic field is produced by a nearby solenoid. As the patient inhales, his chest expands, stretching the chest band. The resulting increase in the area of the loop causes an emf to be induced in the loop....
