A wire curved into a 1/4 of a semicircle sits above the x axis, carrying charge...

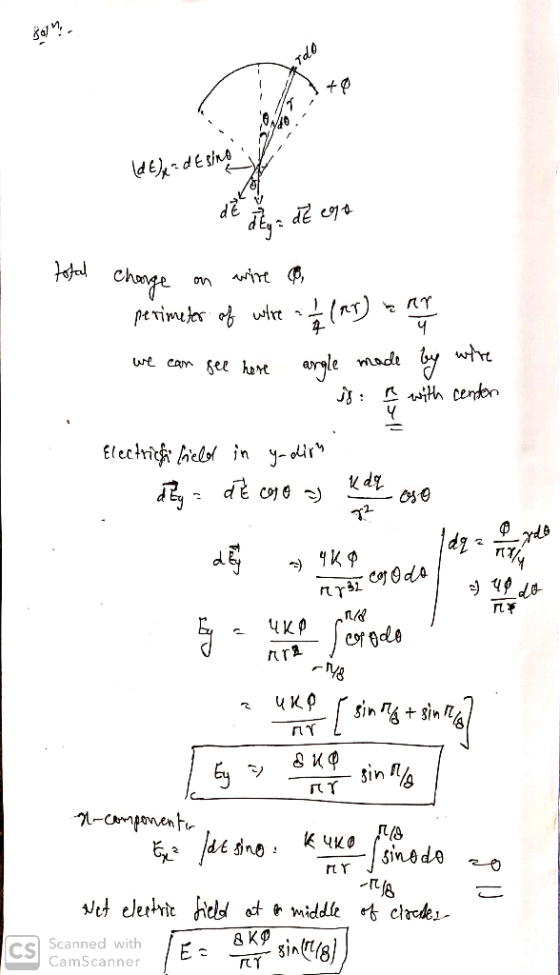

A wire curved into a 1/4 of a semicircle sits above the x axis, carrying charge +Q, radius r away from the axis. What is the electric field at the point where the middle of the circle would be? (Hint: the electric field in the x-direction cancels out due to symmetry, calculate E(sub y) to find the answer.)
Homework Answers
Add Answer to:
A wire curved into a 1/4 of a semicircle sits above the x axis,
carrying charge...
07. A rigid wire, carrying a current I, consists of semicircle of radius R and two...
07. A rigid wire, carrying a current I, consists of semicircle of radius R and two straight portions as shown in the following figure. The wire lies in a plane perpendicular to a uniform magnetic field B. Note choice of x and y axis. The straight portions each have length 1 within the field. Determine the net force on the wire due to the magnetic field. (8 Marks)
Problem 1 A curved plastic rod of charge +Q forms a semi-circle of radius R in...
Problem 1 A curved plastic rod of charge +Q forms a semi-circle of radius R in the x-y plane, as shown below on the left. The charge is distributed uniformly across the rod. dQ +0 +Q Now let's analytically determine the magnitude and direction of the electric field E at the center of the circle using polar coordinates and the charge element dQ shown in the image on the right. write down an expression for the electric field dE at...
Q1. A curved plastic rod of charge+Q forms a semi-circle of radius R in the x-y...
Q1. A curved plastic rod of charge+Q forms a semi-circle of radius R in the x-y plane, as shown below on the left. The charge is distributed uniformly across the rod. dQ +Q +Q Now let's analytically determine the magnitude and direction of the electric field E at the center of the circle using polar coordinates and the charge element dQ shown in the image on the right Write down an expression for the electric field dE at the center...
5. An electron carrying charge -9 (where q=1.602e-19 C) is moving along the x axis in...
5. An electron carrying charge -9 (where q=1.602e-19 C) is moving along the x axis in the +x direction with a velocity ū(x, y, z) = 5 x 107 cm/s. a. We want to make the electron to curve to the right and eventually go in a circle clockwise in the xy plane by applying a magnetic field. To achieve that, the magnetic field should exert a force on the electron that is perpendicular to its direction of motion. Which...
RC-1A charge +Q is evenly distributed around a semicircle of radius R in the x-y plane...
RC-1A charge +Q is evenly distributed around a semicircle of radius R in the x-y plane as shown to the right. a) Use dq charge elements to explain why the net field at the center of the semicircle (the origin) has no y component. Use a drawing like the one shown in your explanation. b) Apply Coulomb's law to calculate the strength (magnitude) of the net electric field at the origin in terms of K, Q, R and any other...
Two curved plastic rods, one of charge +q and the other of charge -q, form a...
Two curved plastic rods, one of charge +q and the other of charge -q, form a circle of radius R in the plane. The horizontal and vertical axes are shown, and the join between the two rods is on the vertical axis. 5. a. Draw a representative sample of electric field lines (with directions) inside and outside the circle. It should look reasonably accurate. Total charge on left half: +q Total charge on right half: q b. If charge is...
Qa 2 A semi-infinite line of charge of charge per unit length 1 is placed on...
Qa 2 A semi-infinite line of charge of charge per unit length 1 is placed on the positive î-axis. A semicircular arc of charge of radius a is joined to it at the origin, with its centre on the ġ-axis, at a distance a away, as shown. The total charge on the semicircle is Q. a. [5 points] Determine the electric field at a point i = yỹ (y > 0) due to the straight line. b. [3 points] Show...
Figure shows a thin nonconducting wire, carrying a total charge of Q = 15.0 nC, uniformly...
Figure shows a thin nonconducting wire, carrying a total charge of Q = 15.0 nC, uniformly distributed over its length, which extends on the x axis of the coordinate system from x = -10 cm to x = + 20 cm. Find the magnitude and direction of the electric field this wire produces at point P on the y axis at y = 10 cm.
Problem 4 A point charge -q is located at the origin. The point charge is surrounded...
Problem 4 A point charge -q is located at the origin. The point charge is surrounded by a ring with uniform line charge density and radius a. The charged ring sits in the x-y plane and is centered on the origin. a) Calculate the electric potential along the z-axis using a reference point at o using Coulomb's law for V. (i.e. do not find the electric field first.) b) Use E= -VV to calculate the electric field along the z-axis....
A wire bent into the shape of a semicircle of radius Rforms a closed circuit and...
A wire
bent into the shape of a semicircle of radius Rforms
a closed circuit and carries a current I.
The circuit lies in the xy
plane,
and a uniform magnetic field is present along the positive
y
axis as
in Figure 29.12. Find the magnetic force on the straight portion of
the wire and on the curved portion. Please answer the part I
circled in red!!! Thank you!
2. 2.2/5 points | Previous Answers PSE6 29 AE 02 Example...
07. A rigid wire, carrying a current I, consists of semicircle of radius R and two straight portions as shown in the following figure. The wire lies in a plane perpendicular to a uniform magnetic field B. Note choice of x and y axis. The straight portions each have length 1 within the field. Determine the net force on the wire due to the magnetic field. (8 Marks)
Problem 1 A curved plastic rod of charge +Q forms a semi-circle of radius R in the x-y plane, as shown below on the left. The charge is distributed uniformly across the rod. dQ +0 +Q Now let's analytically determine the magnitude and direction of the electric field E at the center of the circle using polar coordinates and the charge element dQ shown in the image on the right. write down an expression for the electric field dE at...
Q1. A curved plastic rod of charge+Q forms a semi-circle of radius R in the x-y plane, as shown below on the left. The charge is distributed uniformly across the rod. dQ +Q +Q Now let's analytically determine the magnitude and direction of the electric field E at the center of the circle using polar coordinates and the charge element dQ shown in the image on the right Write down an expression for the electric field dE at the center...
5. An electron carrying charge -9 (where q=1.602e-19 C) is moving along the x axis in the +x direction with a velocity ū(x, y, z) = 5 x 107 cm/s. a. We want to make the electron to curve to the right and eventually go in a circle clockwise in the xy plane by applying a magnetic field. To achieve that, the magnetic field should exert a force on the electron that is perpendicular to its direction of motion. Which...
RC-1A charge +Q is evenly distributed around a semicircle of radius R in the x-y plane as shown to the right. a) Use dq charge elements to explain why the net field at the center of the semicircle (the origin) has no y component. Use a drawing like the one shown in your explanation. b) Apply Coulomb's law to calculate the strength (magnitude) of the net electric field at the origin in terms of K, Q, R and any other...
Two curved plastic rods, one of charge +q and the other of charge -q, form a circle of radius R in the plane. The horizontal and vertical axes are shown, and the join between the two rods is on the vertical axis. 5. a. Draw a representative sample of electric field lines (with directions) inside and outside the circle. It should look reasonably accurate. Total charge on left half: +q Total charge on right half: q b. If charge is...
Qa 2 A semi-infinite line of charge of charge per unit length 1 is placed on the positive î-axis. A semicircular arc of charge of radius a is joined to it at the origin, with its centre on the ġ-axis, at a distance a away, as shown. The total charge on the semicircle is Q. a. [5 points] Determine the electric field at a point i = yỹ (y > 0) due to the straight line. b. [3 points] Show...
Figure shows a thin nonconducting wire, carrying a total charge of Q = 15.0 nC, uniformly distributed over its length, which extends on the x axis of the coordinate system from x = -10 cm to x = + 20 cm. Find the magnitude and direction of the electric field this wire produces at point P on the y axis at y = 10 cm.
Problem 4 A point charge -q is located at the origin. The point charge is surrounded by a ring with uniform line charge density and radius a. The charged ring sits in the x-y plane and is centered on the origin. a) Calculate the electric potential along the z-axis using a reference point at o using Coulomb's law for V. (i.e. do not find the electric field first.) b) Use E= -VV to calculate the electric field along the z-axis....
A wire
bent into the shape of a semicircle of radius Rforms
a closed circuit and carries a current I.
The circuit lies in the xy
plane,
and a uniform magnetic field is present along the positive
y
axis as
in Figure 29.12. Find the magnetic force on the straight portion of
the wire and on the curved portion. Please answer the part I
circled in red!!! Thank you!
2. 2.2/5 points | Previous Answers PSE6 29 AE 02 Example...
