A pair of closely spaced parallel conducting plates, charged with equal and opposite electric charges, produces...

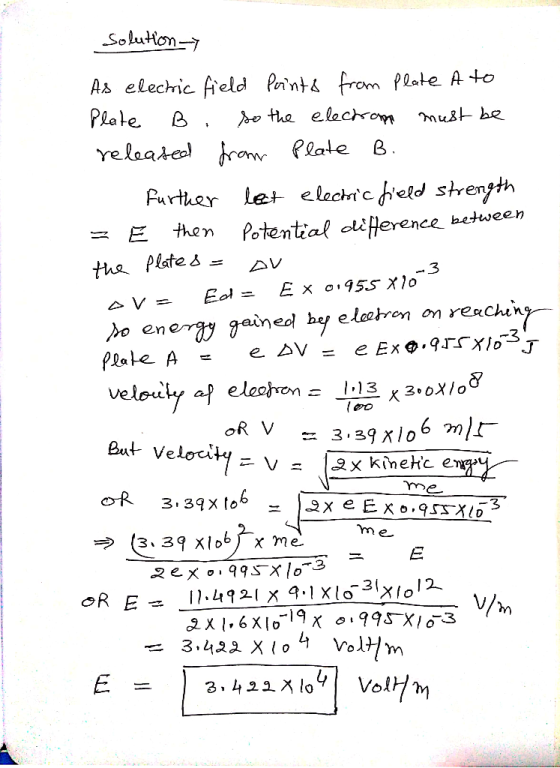

A pair of closely spaced parallel conducting plates, charged with equal and opposite electric charges, produces a uniform electric field in the region between them. In designing a cutting‑edge device that will revolutionize the electronics industry, Leticia sets up such a pair of plates separated by a distance 0.955 mm, then charges them so that the direction of the electric field in their interior region points from plate A to plate B. Her idea requires that electrons, when released from rest at one of the plates, reach the other plate at the speed of 1.13% of the speed of light. The speed of light is ?=3.00×108 m/s. At which plate should the electrons be released? cannot be determined A B either A or B What is the strength ? of the electric field?
Homework Answers
Add Answer to:
A pair of closely spaced parallel conducting plates, charged
with equal and opposite electric charges, produces...
A pair of closely spaced parallel conducting plates, charged with equal and opposite electric charges, produces...
A pair of closely spaced parallel conducting plates, charged with equal and opposite electric charges, produces a uniform electric field in the region between them. In designing a cutting-edge device that will revolutionize the electronics industry, you set up such a pair of plates with a separation of 0.953 mm between them and charge them so that the direction of the electric field in their interior region is from plate A to plate B. Your idea requires that electrons, when...
Consider two closely spaced and oppositely charged parallel metal plates. The plates are square with sides...
Consider two closely spaced and oppositely charged parallel metal plates. The plates are square with sides of length 3.9m and carry charges Q and -Q on their facing surfaces, where Q=12mu C. What is the magnitude of the electric field in the region between the plates? Give your answer in 106 N/C with two decimals.
The electric field in the region between two oppositely charged, parallel, conducting plates has a magnitude...
The electric field in the region between two oppositely charged, parallel, conducting plates has a magnitude of 250 N/C and the plates are separated by a distance of 20 cm. A) calculate the surface charge density on each plate and B) the acceleration of a proton if it is placed 5 cm from the positive plate and released from rest
Two large parallel conducting plates separated by 7 cm carry equal and opposite surface charge densities...
Two large parallel conducting plates separated by 7 cm carry equal and opposite surface charge densities such that the electric field between them is uniform. The difference in potential between the plates is 200 V. An electron is released from rest at the negatively charged plate.
Two parallel plates having charges of equal magnitude but opposite sign are separated by 34.0 cm.
Two parallel plates having charges of equal magnitude but opposite sign are separated by 34.0 cm. Each plate has a surface charge density of 33.0 nC/m2, A proton is released from rest at the positive plate. (a) Determine the magnitude of the electric field between the plates from the charge density. (b) Determine the potential difference between the plates. (c) Determine the kinetic energy of the proton when it reaches the negative plate. (d) Determine the speed of the proton just before it strikes...
Two parallel plates having charges of equal magnitude but opposite sign are separated by 30.0 cm....
Two parallel plates having charges of equal magnitude but opposite sign are separated by 30.0 cm. Each plate has a surface charge density of 48.0 nC/m2 A proton is released from rest at the positive plate. (a) Determine the magnitude of the electric field between the plates from the charge density. kN/C (b) Determine the potential difference between the plates. (c) Determine the kinetic energy of the proton when it reaches the negative plate. (d) Determine the speed of the...
A pair of parallel plates produces a uniform electric field of 710V/m. If an electron is...
A pair of parallel plates produces a uniform electric field of 710V/m. If an electron is released at rest from the negative plate, how fast is it moving when it hits the positive plate, 6.5 mm away? Express your answer to two significant figures and include the appropriate units.
An electric potential is set up across a pair of parallel plates such that the left...
An electric potential is set up across a pair of parallel plates
such that the left plate is at -509 V and the right plate is at 0V.
An electron is released at the left plate and accelerates towards
the right plate. When it reaches the right plate, it passes through
a small hole and enters a region where there is a magnetic field of
strength 2.690×10-3 T pointing into the paper. The electron travels
in a semi-circular orbit and...
A uniform electric field exists in a region beteen two oppositely charged plates. An electron is...
A uniform electric field exists in a region beteen two oppositely charged plates. An electron is released from rest at the surface of the negatively charged plate and strikes the surface of the opposite plate, 2.2 cm away, in a time 7.4 x 108 s. (a) What is the speed of the electron as it strikes the second plate? (b) What is the magnitude of the electric field? (a) NumbetT5.9E5 (b) Numbe UnitsT m/s Un N/C or V/m
A pair of closely spaced parallel conducting plates, charged with equal and opposite electric charges, produces a uniform electric field in the region between them. In designing a cutting-edge device that will revolutionize the electronics industry, you set up such a pair of plates with a separation of 0.953 mm between them and charge them so that the direction of the electric field in their interior region is from plate A to plate B. Your idea requires that electrons, when...
Two parallel plates having charges of equal magnitude but opposite sign are separated by 30.0 cm. Each plate has a surface charge density of 48.0 nC/m2 A proton is released from rest at the positive plate. (a) Determine the magnitude of the electric field between the plates from the charge density. kN/C (b) Determine the potential difference between the plates. (c) Determine the kinetic energy of the proton when it reaches the negative plate. (d) Determine the speed of the...
A pair of parallel plates produces a uniform electric field of 710V/m. If an electron is released at rest from the negative plate, how fast is it moving when it hits the positive plate, 6.5 mm away? Express your answer to two significant figures and include the appropriate units.
An electric potential is set up across a pair of parallel plates
such that the left plate is at -509 V and the right plate is at 0V.
An electron is released at the left plate and accelerates towards
the right plate. When it reaches the right plate, it passes through
a small hole and enters a region where there is a magnetic field of
strength 2.690×10-3 T pointing into the paper. The electron travels
in a semi-circular orbit and...
A uniform electric field exists in a region beteen two oppositely charged plates. An electron is released from rest at the surface of the negatively charged plate and strikes the surface of the opposite plate, 2.2 cm away, in a time 7.4 x 108 s. (a) What is the speed of the electron as it strikes the second plate? (b) What is the magnitude of the electric field? (a) NumbetT5.9E5 (b) Numbe UnitsT m/s Un N/C or V/m
