A high-pressure pump has efficiency = 50%. The pump receives liquid water at 20 °C and...

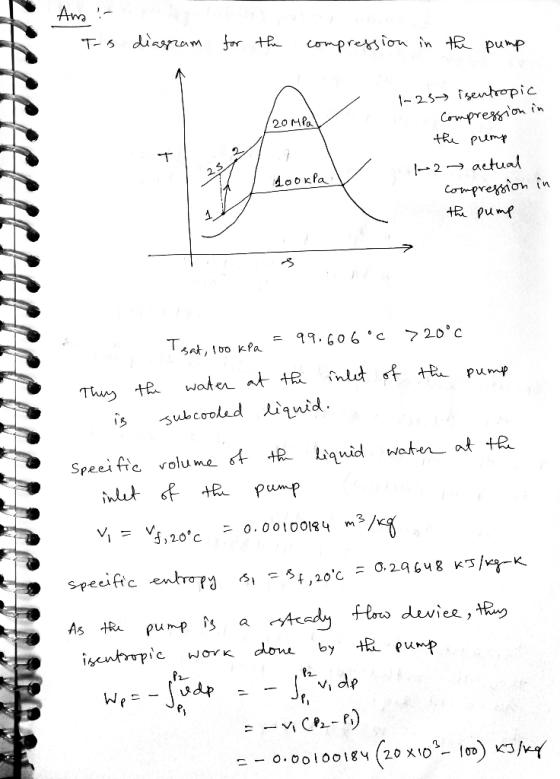

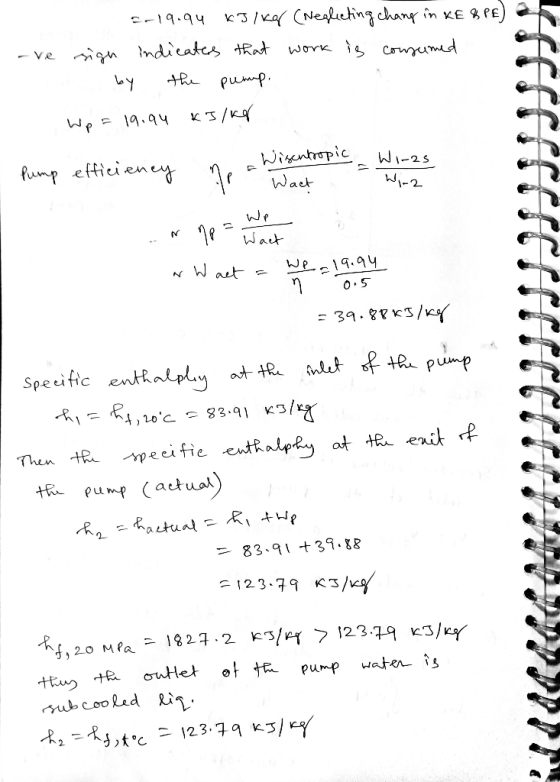

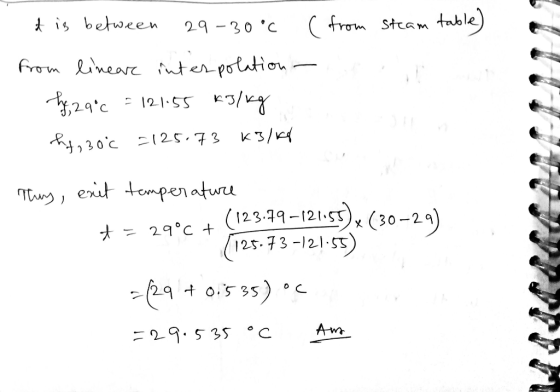

A high-pressure pump has efficiency = 50%. The pump receives liquid water at 20 °C and 100 kPa and compresses the water to a pressure of 20 MPa. Assuming water to be an incompressible liquid, use a property table and a calculator, determine the temperature of the pump outlet (in °C).
Homework Answers
