A 3.00-m-long, 280-N, uniform rod at the zoo is held in a horizontal position by two...

A 3.00-m-long, 280-N, uniform rod at the zoo is held in a horizontal position by two ropes at its ends (the figure (Figure 1)). The left rope makes an angle of 150 ∘ with the rod and the right rope makes an angle θ with the horizontal. A 88-N howler monkey (Alouatta seniculus) hangs motionless 0.50 m from the right end of the rod as he carefully studies you.

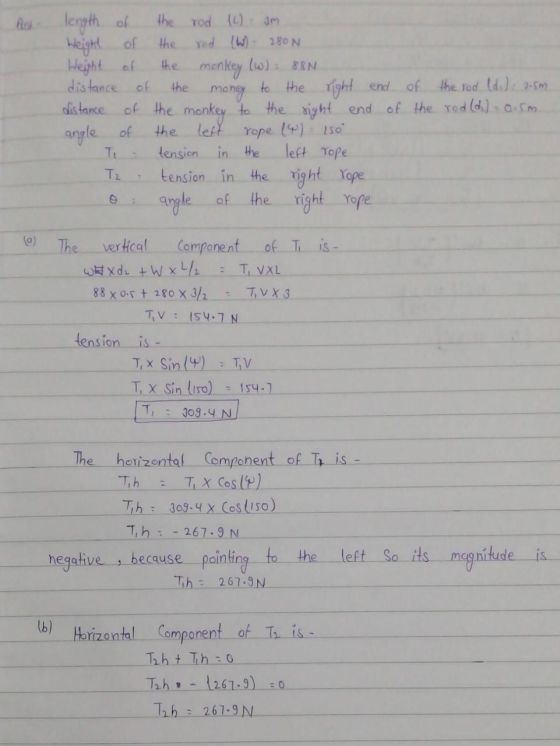

A.) Calculate tension in the left rope

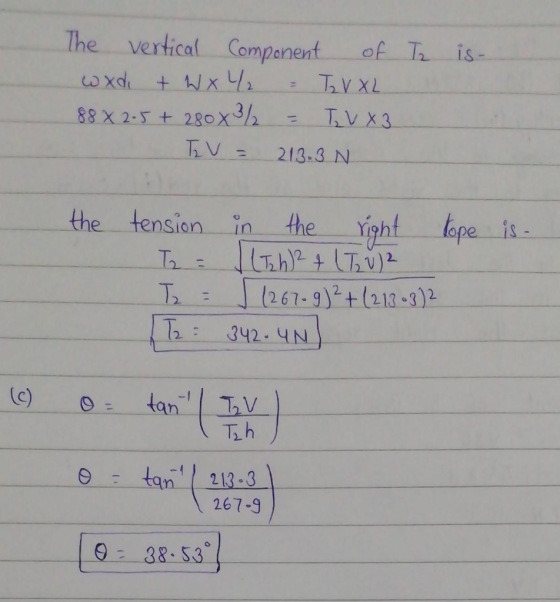

B.) Calculate tension in the right rope

C.) Calculate the angle theta

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
