Draw the double sided spectrum for: x(t)=1+sin(wt)+2cos(wt)+cos(2wt+(pi/4)) where f=20Hz, 40 Hz and 60Hz please show and...

Question

Question

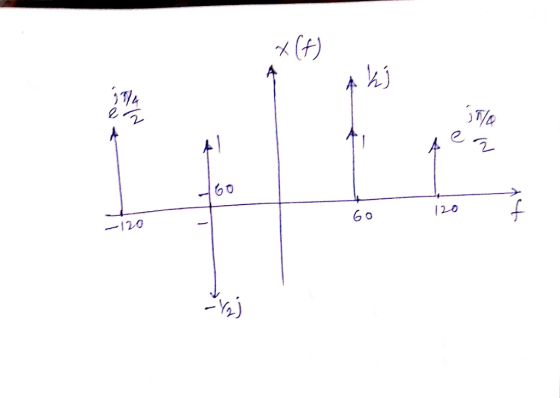

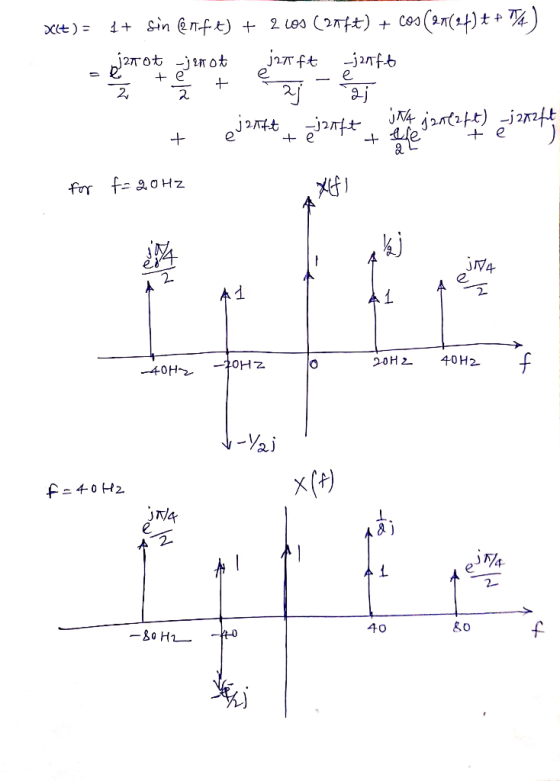

Draw the double sided spectrum for:

x(t)=1+sin(wt)+2cos(wt)+cos(2wt+(pi/4))

where f=20Hz, 40 Hz and 60Hz

please show and explain all work.

engineering Electrical-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

draw the double sided spectrum for the signal given x(t)= 1+sin(2pi10t) + 2cos(2pi20t) + cos(3pi60t +...

draw the double sided spectrum for the signal given x(t)= 1+sin(2pi10t) + 2cos(2pi20t) + cos(3pi60t + pi/3)
draw the double sided spectrum for x(T)=sin(wt) , where f=10Hz

draw the double sided spectrum for x(T)=sin(wt) , where f=10Hz

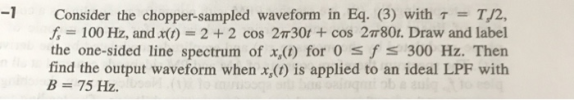

1 Consider the chopper-sampled waveform in Eq. (3) with T/2, f 100 Hz, and x()- 2 2 cos 21T30t + cos 27T80t. Draw and label the one-sided line spectrum of x,(t) for 0 s f s 300 Hz. Then find the...
