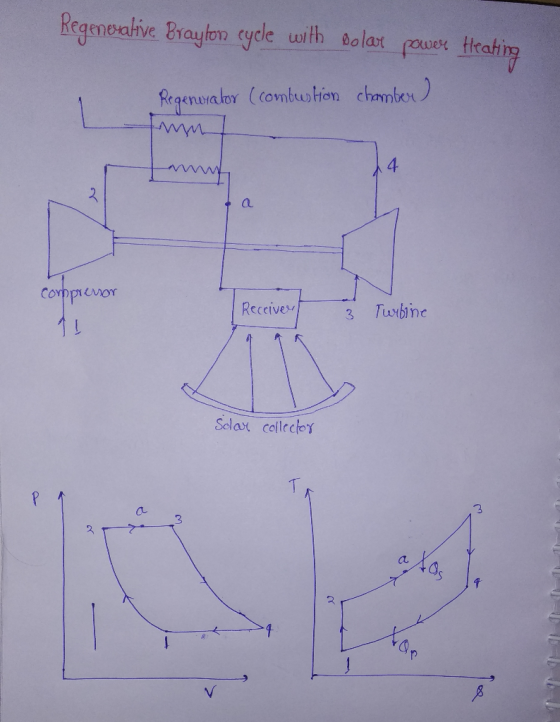

Draw with esthetic a combined BRAYTON cycle with REGENERATOR and SOLAR support.
Draw with esthetic a combined BRAYTON cycle with REGENERATOR and SOLAR support.
Homework Answers
Please dear thumpsup for the
work. Thank you.Add Answer to:
Draw with esthetic a combined BRAYTON cycle with REGENERATOR and
SOLAR support.
Pressure ratio of a Brayton cycle with air operated regenerator 8. The lowest and highest temperatures...
Pressure ratio of a Brayton cycle with air operated regenerator 8. The lowest and highest temperatures of the cycle are 310 K and 1150 K. Adiabatic efficiency of compressor and turbine 75% and 82%, respectively. the efficiency of the regenerator is 65%. The cycle in the T-s diagram Show. Consider the variation of specific temperatures with temperature. a) the temperature of the air at the turbine outlet, b) Net work of the cycle, c) Calculate the thermal efficiency of the...
An air-standard Brayton cycle includes a regenerator which is shown in the below figure. The air...
An air-standard Brayton cycle includes a regenerator which is shown in the below figure. The air enters the compressor at 100 kPa, 20℃. The pressure ratio across the compressor is 9:1. The highest temperature in the cycle is 1100℃, and the flow rate of the air is 10 kg/s. The regenerator operates at effectiveness 80 percent. Both the efficiencies of the turbine and the compressor are 85%. Do not use Table A-22. Assuming constant specific heat ( cp = 1.004...
13. Consider an air-standard Brayton cycle having 3 stages of compression with intercooling, a regenerator, and...
13. Consider an air-standard Brayton cycle having 3 stages of compression with intercooling, a regenerator, and 3 stages of expansion with reheat. Draw a T-s diagram assuming isentropic compression and expansion, perfect regeneration, inlet temperatures to the 3 compressors equal to the low temperature sink, and inlet temperatures to the 3 turbines equal to the high temperature source. Now consider the limit of infinite stages of compression with intercooling, perfect regeneration, and infinite stages of expansion with reheat. Draw a...
when rankine cycle and a brayton cycle are combined, what are the files that could be...
when rankine cycle and a brayton cycle are combined, what are the files that could be used to drive each cycle?
2. Consider a combined gas steam power cycle. The gas cycle is a simple Brayton cycle...
2. Consider a combined gas steam power cycle. The gas cycle is a
simple Brayton cycle that has a pressure ratio of 7. Air enters at
9.8 kg / s at the compressor at 15 ° C and 100 kPa, and at the gas
turbine at 950 ° C. The steam cycle is a Rankine cycle with
overheating between the pressure limits of 6 MPa and 10 kPa. The
water vapor is heated in the heat exchanger at a rate...
Thermodynamics 2: STARTING FROM QS 2) 1) In an ideal Brayton cycle air enters the compressor...
Thermodynamics 2: STARTING FROM QS 2) 1) In an ideal Brayton cycle air enters the compressor at T = 300K and P = 1 bar with a volumetric flow rate = 20 m3/s. Air enters the turbine at P = 10 bar and T = 1800K. Find: a) The thermal efficiency b) The backwork ratio c) The net power generation in MW 2) For the same states above consider a cycle where the isentropic efficiency of the compressor and turbine...
An ideal Brayton cycle with regeneration is shown below. Note that from 1 to 6, there...
An ideal Brayton cycle with regeneration is shown below. Note
that from 1 to 6, there is a heat rejection process. The pressure
ratio is 10 and the inlet to the compressor is at 300 K and 100
kPa. The maximum temperature is 1100 K. Use air as the working
fluid, and assume constant properties evaluated at 300
K.
(a) Find the net work output and the cycle efficiency assuming
the effectiveness of the regenerator is 100%
(b) Plot the...
Ideal Brayton cycle with heat regeneration has a pressure ration rp-10.4, T1-300K. The effectiveness of the...
Ideal Brayton cycle with heat regeneration has a pressure ration rp-10.4, T1-300K. The effectiveness of the regenerator is 80%. The network output WmF350 kJ/kg and the thermal efficiency of the cycle is nth 54%. Assume that the air is an ideal gas with variable specific heats. al Draw The thermodynamic cycle Ts and Pv Calculate: b/ Turbine work (WT.out) c/ qin, apply the first law of thermodynamic to the system to calculate gout d/ qregen Heat Combustion chambet Turbine Compressor
A brayton cycle with regeneration and intercooling has a pressure ratio of 4 across each compressor...
A brayton cycle with regeneration and intercooling has a
pressure ratio of 4 across each compressor while the total pressure
ratio across the turbine is 16. Air enters each compressor at 298K
while the inlet gas temperature to the turbine is 1200K. If the
regenerator effectiveness is 100%, calculate the cycle thermal
efficiency from the heat addition and rejection.
3. A Brayton cycle with regeneration and intercolinig aeross the turbine is across each compressor while the total pressure ratio across...
4. A regenerative two-stage gas turbine with reheat operating on the standard-air Brayton cycle i...
4. A regenerative two-stage gas turbine with reheat operating on
the standard-air Brayton cycle is illustrated in Figure 3. In an
ideal Brayton cycle, the processes in the turbines and compressor
are adiabatic and isentropic, and the air flows through the
combustor and heat exchangers at constant pressure.
a) Show that the maximum total work output is
developed when the pressure ratio is the same across each stage, if
the temperature at the inlet to each turbine stage is the...
13. Consider an air-standard Brayton cycle having 3 stages of compression with intercooling, a regenerator, and 3 stages of expansion with reheat. Draw a T-s diagram assuming isentropic compression and expansion, perfect regeneration, inlet temperatures to the 3 compressors equal to the low temperature sink, and inlet temperatures to the 3 turbines equal to the high temperature source. Now consider the limit of infinite stages of compression with intercooling, perfect regeneration, and infinite stages of expansion with reheat. Draw a...
2. Consider a combined gas steam power cycle. The gas cycle is a
simple Brayton cycle that has a pressure ratio of 7. Air enters at
9.8 kg / s at the compressor at 15 ° C and 100 kPa, and at the gas
turbine at 950 ° C. The steam cycle is a Rankine cycle with
overheating between the pressure limits of 6 MPa and 10 kPa. The
water vapor is heated in the heat exchanger at a rate...
An ideal Brayton cycle with regeneration is shown below. Note
that from 1 to 6, there is a heat rejection process. The pressure
ratio is 10 and the inlet to the compressor is at 300 K and 100
kPa. The maximum temperature is 1100 K. Use air as the working
fluid, and assume constant properties evaluated at 300
K.
(a) Find the net work output and the cycle efficiency assuming
the effectiveness of the regenerator is 100%
(b) Plot the...
Ideal Brayton cycle with heat regeneration has a pressure ration rp-10.4, T1-300K. The effectiveness of the regenerator is 80%. The network output WmF350 kJ/kg and the thermal efficiency of the cycle is nth 54%. Assume that the air is an ideal gas with variable specific heats. al Draw The thermodynamic cycle Ts and Pv Calculate: b/ Turbine work (WT.out) c/ qin, apply the first law of thermodynamic to the system to calculate gout d/ qregen Heat Combustion chambet Turbine Compressor
A brayton cycle with regeneration and intercooling has a
pressure ratio of 4 across each compressor while the total pressure
ratio across the turbine is 16. Air enters each compressor at 298K
while the inlet gas temperature to the turbine is 1200K. If the
regenerator effectiveness is 100%, calculate the cycle thermal
efficiency from the heat addition and rejection.
3. A Brayton cycle with regeneration and intercolinig aeross the turbine is across each compressor while the total pressure ratio across...
4. A regenerative two-stage gas turbine with reheat operating on
the standard-air Brayton cycle is illustrated in Figure 3. In an
ideal Brayton cycle, the processes in the turbines and compressor
are adiabatic and isentropic, and the air flows through the
combustor and heat exchangers at constant pressure.
a) Show that the maximum total work output is
developed when the pressure ratio is the same across each stage, if
the temperature at the inlet to each turbine stage is the...
