A wire which is 6 km long made of copper is connected to a battery. Because...

A wire which is 6 km long made of copper is connected to a battery. Because it is very long, its resistance is not neglected and the power dissipated by the wire alone is 12 watts. The same wire is melted down and shaped into another wire. When this wire is connected to the same battery, it dissipates 74 watts. What is the length of the second wire in km? please show your work

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

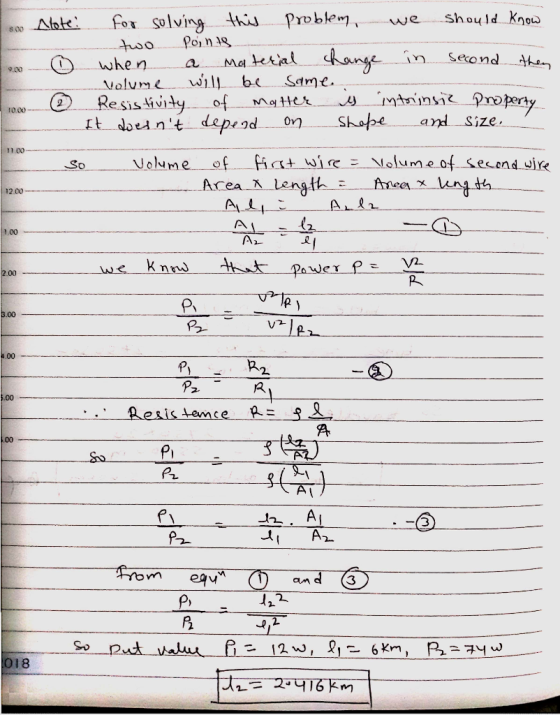

Answer #1

if you have any questions please comment on this I resolve problem please rate this question.

0 0
Add a comment
Know the answer?
Add Answer to:
A wire which is 6 km long made of copper is connected to a battery. Because...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • The picture shows a battery connected to two wires in parallel. Both wires are made of...

    The picture shows a battery connected to two wires in parallel. Both wires are made of the same material and are of the same length, but the diameter of wire A is twice the diameter of wire B. True or False for the following: 1) The resistance of wire B is four times as large as the resistance of wire A. 2) The power dissipated in wire A is 16 times the power dissipated in wire B. 3) The voltage...

  • A long copper wire has a resistance of 33 Ohms. A second copper wire is a...

    A long copper wire has a resistance of 33 Ohms. A second copper wire is a factor of 5 times shorter than the first wire. (It is the same area, however.) If the second wire is connected to a 24 volt battery, what is the current in the wire in amps?

  • A long copper wire has a resistance of 30 Ohms. A second copper wire is a...

    A long copper wire has a resistance of 30 Ohms. A second copper wire is a factor of 4 times shorter than the first wire. (It is the same area, however.) If the second wire is connected to a 25 volt battery, what is the current in the wire in amps?

  • A battery is connected by a copper wire with a resistor that has a resistance of...

    A battery is connected by a copper wire with a resistor that has a resistance of 100 ohm. What voltage is required by the battery to produce 180mW of power? (4.2V)

  • A 24 V battery with an internal resistance r of 0.15 Ohm is connected across two...

    A 24 V battery with an internal resistance r of 0.15 Ohm is connected across two wires as shown below. The first wire is made of copper, has a radius of 1.5 mm, and is 2000 m long. The second wire has the same radius and length as the copper wire but is made of aluminium. Both wires are wrapped around a cylindrical plastic core (like a solenoid). a. What is the equivalent resistance of the entire circuit? b. What...

  • For a copper wire in a 2560m long transmission line to have a resistance of 1.00...

    For a copper wire in a 2560m long transmission line to have a resistance of 1.00 ohm, what radius must it have? Edison suggested we use low DC voltages for household electricity. It a toaster has 12 resistive wires in parallel, and when connected to a 12.0V power I supply the toaster dissipates 1200W in total, calculate the current in the power supply, and the resistance of each wire. (Draw a schematic!)

  • A 100-m -long copper wire of radius 0.19 mm and mass 100 g is connected across...

    A 100-m -long copper wire of radius 0.19 mm and mass 100 g is connected across a 1.5-V battery. The resistivity of copper is 1.7×10−8Ω⋅m. 1)Determine the resistance of the wire. Express your answer with the appropriate units. 2) Determine the current through the wire. Express your answer with the appropriate units. 3) Determine the power delivered by the battery. Express your answer with the appropriate units.

  • a.When two resistors RA and RB are combined in series and connected to a battery it...

    a.When two resistors RA and RB are combined in series and connected to a battery it is observed that the ratio of the power dissipated in RA to that dissipated in RB is equal to 10. If this arrangement is dismantled and the same two resistors connected in parallel to the same battery, what is the ratio of the power dissipated in RA to that dissipated in RB in this new circuit? b.How much energy is converted by a 12...

  • 6. A current of 3.5 pA flows through a copper wire. The diameter of the wire...

    6. A current of 3.5 pA flows through a copper wire. The diameter of the wire is 30 mm. The number of charge carriers per unit volume is 1.7x10m. The electron drift speed is A) 4.6x1010 m/s B) 1.4x10 m/s C) 18x10 m/s D)5.7x10 m/s E) 1.4x10'm/'s 7· Three uniform cylindrical resistors are made of the same material and have the same length, but different diameters. They are connected in series as shown. We measure the voltage across point O...

  • A solenoid 10 cm in diameter and 630 cm long is made from copper wire of...

    A solenoid 10 cm in diameter and 630 cm long is made from copper wire of diameter 0.050 cm, with very thin insulation. The wire is wound onto a cardboard tube to make a solenoid. (a) Determine the resistance in the wire. You may take the resistivity of copper to be 1.68 times 10^-8 Ohm m. (b) The number of turns in the wire is ten. Find the current necessary to produce a magnetic field of strength 1.5T. (c) How...
