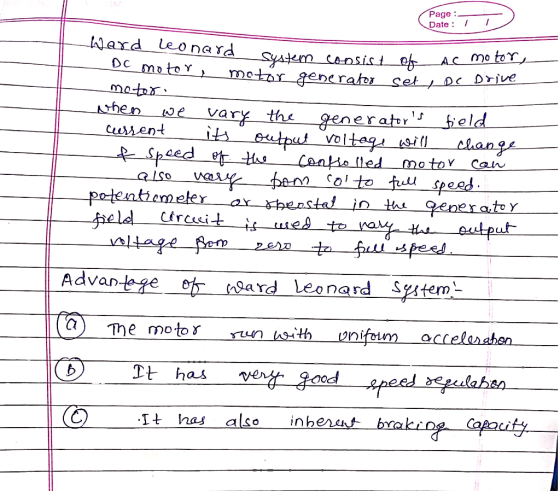

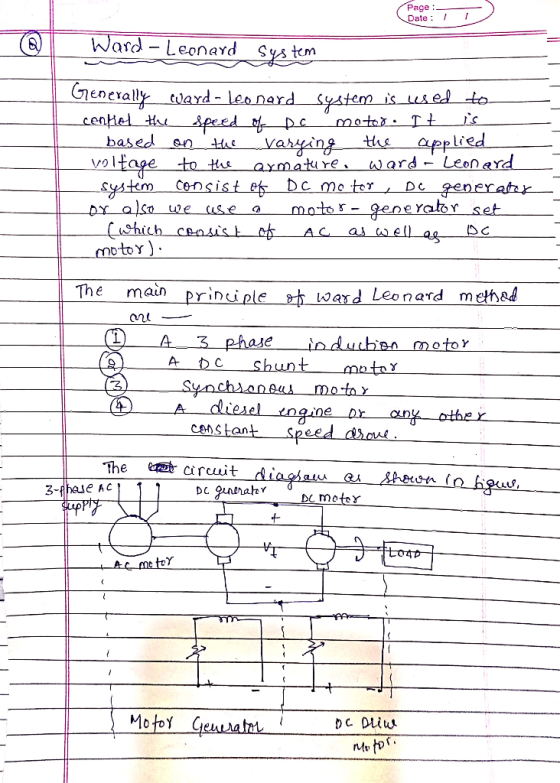

Electromechanical Energy conversion Explain the principles of Ward-Leonard System show circuit of schematic Diagram and explain...
Homework Answers
Add Answer to:
Electromechanical Energy conversion
Explain the principles of Ward-Leonard System show circuit of
schematic Diagram and explain...
Explain with the aid of the diagram, the following terms in relation to electromechanical conversion; singly-excited...
Explain with the aid of the diagram, the following terms in relation to electromechanical conversion; singly-excited system and Doubly-excited system.
Explain working with schematic diagram, classification and typical power/ energy consumption of electrical systems- "pumps"
Explain working with schematic diagram, classification and typical power/ energy consumption of electrical systems- "pumps"
Explain working with schematic diagram, classification and typical power/ energy consumption of electrical systems- "Electric motors"
Explain working with schematic diagram, classification and typical power/ energy consumption of electrical systems- "Electric motors"
1. Define and clearly label a general thermodynamic system (schematic) that interacts with a representative house...
1. Define and clearly label a general thermodynamic system (schematic) that interacts with a representative house to analyze in this feasibility exercise with the available energy source. Justify and describe your schematic based on basic thermodynamic principles. What is the primary function of a cooling system? 2. Reproduce your schematic and identify the energy and mass flows (rate basis) in and out of the system using symbolic representation in addition to the various quantities in the problem 3. Represent the...
Starting from first principles Draw free body diagram for the system shown. Show that the equation...
Starting from first principles
Draw free body diagram for the system shown.
Show that the equation of motion is:
+y -am Mt) - Y sin er K Base
Work-energy bar charts for a person going downstairs and upstairs are shown in the figure below. The bar charts show the average energy conversion across several steps. The system is the person, Eart...
Work-energy bar charts for a person going downstairs and upstairs are shown in the figure below. The bar charts show the average energy conversion across several steps. The system is the person, Earth, and the stairs. (a) Describe the differences in the bar charts. How do these differences explain why we are less tired going downstairs? (b) How do you explain that when we walk upstairs lLVthl < IAUchl, but when we walk downstairs AUhl>JAUchl? Going downstairs 0 Going upstairs...
Consider an electrical system shown in the following circuit diagram RI R2 Show that the transfer...
Consider an electrical system shown in the following circuit diagram RI R2 Show that the transfer function from vi to vo can be expressed as H(s) s a R2 R1R2 and b where a RI R2C RI R2C = 5 x 104 , R2 Compute a and b of the electrical system for R1 C 10-6 F 1020 , and Compute the maximum phase (in degrees) of the electrical system and the correspond ing frequency (in rad/sec) Sketch the frequency...
(100 points) Figure below shows the schematic diagram of a two-stage cascade refrigeration system (also called...
(100 points) Figure below shows the schematic diagram of a two-stage cascade refrigeration system (also called the Economizer 2-Stage Refrigeration Cycle). Comparing to the cascade two-stage refrigeration system discussed in In-class Activity #10a, in this case, the flash chamber (now called Flash Intercooler) is still used but the mixing chamber is removed. The superheated vapor (2) out of the low-pressure compressor (1) is routed into the flash chamber, and the saturated vapor (3) out of the flash chamber enters directly...
PLEASE COMPLETE AND EXPLAIN Draw a Molecular Orbital Energy Diagram showing how each of the following...
PLEASE COMPLETE AND EXPLAIN
Draw a Molecular Orbital Energy Diagram showing how each of the following pairs of orbitals can overlap in the orientation shown to form bonding and antibonding orbitals. Clearly draw the starting atomic orbitals and the resulting molecular orbitals, and show their relative energies. a) b) S3d O2
Please help with block diagram problem. Also, please show work and explain. Thank you! 3. Consider...
Please help with block diagram problem.
Also, please show work and explain.
Thank you!
3. Consider the following block diagram model of a dynamic system where K is a constant feedback parameter. F(s) s +8s +160 Ks Complete the following. in terms of the feedback parameter F(s) function n (s) In terms of the feedback K. (b) For the case where K-0, find the natural frequency a, , the damping ratio 5,and the damped natural frequency a (c) Calculate the...
1. Define and clearly label a general thermodynamic system (schematic) that interacts with a representative house to analyze in this feasibility exercise with the available energy source. Justify and describe your schematic based on basic thermodynamic principles. What is the primary function of a cooling system? 2. Reproduce your schematic and identify the energy and mass flows (rate basis) in and out of the system using symbolic representation in addition to the various quantities in the problem 3. Represent the...
Starting from first principles
Draw free body diagram for the system shown.
Show that the equation of motion is:
+y -am Mt) - Y sin er K Base
Work-energy bar charts for a person going downstairs and upstairs are shown in the figure below. The bar charts show the average energy conversion across several steps. The system is the person, Earth, and the stairs. (a) Describe the differences in the bar charts. How do these differences explain why we are less tired going downstairs? (b) How do you explain that when we walk upstairs lLVthl < IAUchl, but when we walk downstairs AUhl>JAUchl? Going downstairs 0 Going upstairs...
Consider an electrical system shown in the following circuit diagram RI R2 Show that the transfer function from vi to vo can be expressed as H(s) s a R2 R1R2 and b where a RI R2C RI R2C = 5 x 104 , R2 Compute a and b of the electrical system for R1 C 10-6 F 1020 , and Compute the maximum phase (in degrees) of the electrical system and the correspond ing frequency (in rad/sec) Sketch the frequency...
(100 points) Figure below shows the schematic diagram of a two-stage cascade refrigeration system (also called the Economizer 2-Stage Refrigeration Cycle). Comparing to the cascade two-stage refrigeration system discussed in In-class Activity #10a, in this case, the flash chamber (now called Flash Intercooler) is still used but the mixing chamber is removed. The superheated vapor (2) out of the low-pressure compressor (1) is routed into the flash chamber, and the saturated vapor (3) out of the flash chamber enters directly...
PLEASE COMPLETE AND EXPLAIN
Draw a Molecular Orbital Energy Diagram showing how each of the following pairs of orbitals can overlap in the orientation shown to form bonding and antibonding orbitals. Clearly draw the starting atomic orbitals and the resulting molecular orbitals, and show their relative energies. a) b) S3d O2
Please help with block diagram problem.
Also, please show work and explain.
Thank you!
3. Consider the following block diagram model of a dynamic system where K is a constant feedback parameter. F(s) s +8s +160 Ks Complete the following. in terms of the feedback parameter F(s) function n (s) In terms of the feedback K. (b) For the case where K-0, find the natural frequency a, , the damping ratio 5,and the damped natural frequency a (c) Calculate the...
