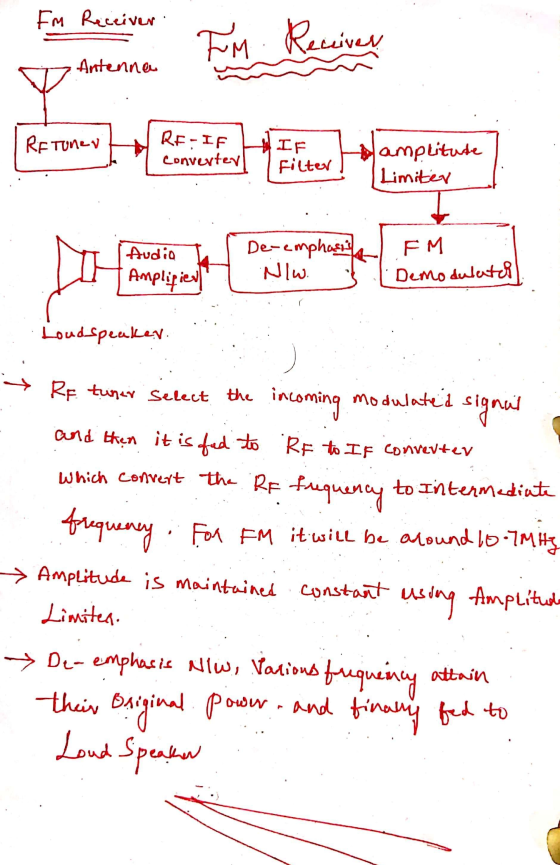

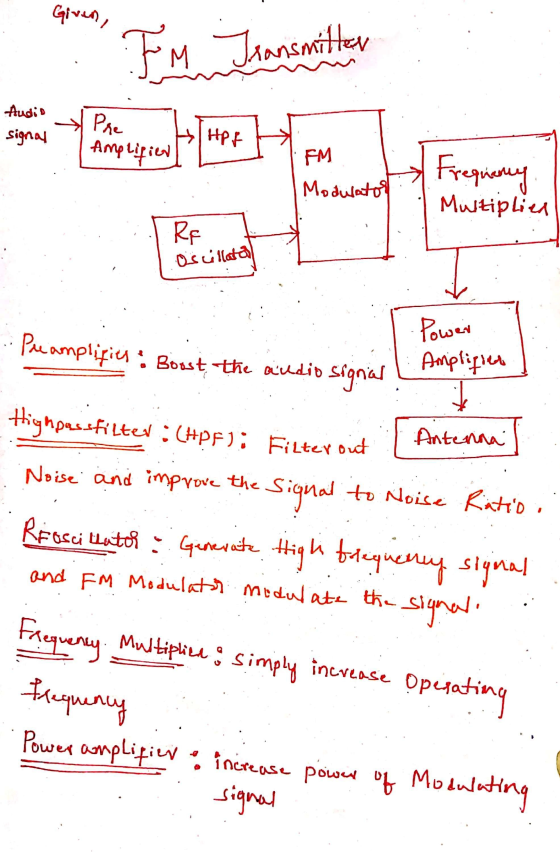

What is the block digram for a FM transmitter and receiver?
Homework Answers
Explain how an OFDM transmitter and receiver work. What is the benefit of adding cyclic prefix at the transmitter?
Explain how an OFDM transmitter and receiver work. What is the benefit of adding cyclic prefix at the transmitter?
Question 5 superheterodyne receiver that The commercial FM broadcasting radio uses a has the following specifications:...
Question 5 superheterodyne receiver that The commercial FM broadcasting radio uses a has the following specifications: IF Filter Frequency: 10.7 MHz FM Radio transmitter carrier frequency range: 87.5 MHz to 108 MHz (a) Determine the local oscillator frequency range if low-side tuning is used. (b) Determine the local oscillator frequency range if high-side tuning is used (c) Determine the range of the image frequencies associated with a high-side tunning local oscillator
Question 5 superheterodyne receiver that The commercial FM broadcasting...
The figure below shows a radio-wave transmitter and a receiver, both h = 41.0 m above...
The figure below shows a radio-wave transmitter and a receiver, both h = 41.0 m above the ground and d = 700 m apart. The receiver can receive signals directly from the transmitter and indirectly from signals that bounce off the ground. XXXXXX Transmitter Receiver (a) If the ground is level between the transmitter and receiver and a 1/2 phase shift occurs upon reflection, determine the longest wavelengths that interfere constructively. (b) If the ground is level between the transmitter...
scan has the transmitter and receiver housed in the same enclosure and the transmitted light reflected...
scan has the transmitter and receiver housed in the same enclosure and the transmitted light reflected to the receiver from the reflector. Group of answer choices Retroreflective Dilluse Specular Direct scan has the transmitter and receiver housed in the same enclosure and minimal transmitted light reflected to the receiver from the target Group of answer choices Diffuse Direct Retroreflective Specular scan has the transmitter and receiver placed opposite each other so that the light from the transmitter shines directly at...
Transmitter Receiver Figure #1 1) The transmitter circuit is implemented with the schematic shown in Figure...
Transmitter Receiver Figure #1 1) The transmitter circuit is implemented with the schematic shown in Figure #2. A simple measurement indicated that the typical input voltage from the microphone peaks at 40 mV when someone is using normal voice and the LED manufacturer recommends operating at approximately 1.6 V. Determine the values of resistors R. and R2 for the transmitter circuit. T, LED Microphone Phone Figure #2
Problem 3) Design a Double-Side-Band (DSB) based transmitter and receiver (find minimum bandwidth requirement and draw the block diagrams) to send and fully recover 10 human-voice type signals wi...
Problem 3) Design a Double-Side-Band (DSB) based transmitter and receiver (find minimum bandwidth requirement and draw the block diagrams) to send and fully recover 10 human-voice type signals with each signal having the bandwidth of 5kHz. Note that the receiver needs at least 3kHz of separation between each DSB signal for full recovery and you are limited to use AM radio frequency spectrum of 540 to 1600 kHz.
Problem 3) Design a Double-Side-Band (DSB) based transmitter and receiver (find minimum...
6. A transmitter randomly sends one of the messages in {ai,a2,.., ,an). The receiver either receives...
6. A transmitter randomly sends one of the messages in {ai,a2,.., ,an). The receiver either receives the transmitted message with probability p, or mistakenly receives one of the other messages with equal probabilities, (a) What is the probability of receiving ai at the receiver? (b) If a is received at the receiver, what is the probability that the transmitted message was 1
A person with a radio-wave receiver starts out equidistant from two FM radio transmitters A and...
A person with a radio-wave receiver starts out equidistant from two FM radio transmitters A and B that are 11.0 m apart, each one emitting in-phase radio waves at 93.5 MHz . She then walks so that she always remains 50.0 m from transmitter B. (See (Figure 1).) Limit your solution to the cases where 50.0m≤x≤65.0m. A) For what values of x will she find the radio signal to be maximally enhanced? B) For what values of x will she...
1.A certain FM transmitter has a resting frequency of 200 KHz, a maximum frequency of 202.5...
1.A certain FM transmitter has a resting frequency of 200 KHz, a maximum frequency of 202.5 KHz, and a minimum frequency of 197.5 KHz. An information signal of 3 Vpk, 2.5 KHz is driving the modulator. What is the deviation of the transmitter?What is the deviation rate for the transmitter
An FM radio transmitter has a power output of 140 kW and operates at a frequency...
An FM radio transmitter has a power output of 140 kW and operates at a frequency of 100.3 MHz. How many photons per second does the transmitter emit? photons/s
Question 5 superheterodyne receiver that The commercial FM broadcasting radio uses a has the following specifications: IF Filter Frequency: 10.7 MHz FM Radio transmitter carrier frequency range: 87.5 MHz to 108 MHz (a) Determine the local oscillator frequency range if low-side tuning is used. (b) Determine the local oscillator frequency range if high-side tuning is used (c) Determine the range of the image frequencies associated with a high-side tunning local oscillator
Question 5 superheterodyne receiver that The commercial FM broadcasting...
The figure below shows a radio-wave transmitter and a receiver, both h = 41.0 m above the ground and d = 700 m apart. The receiver can receive signals directly from the transmitter and indirectly from signals that bounce off the ground. XXXXXX Transmitter Receiver (a) If the ground is level between the transmitter and receiver and a 1/2 phase shift occurs upon reflection, determine the longest wavelengths that interfere constructively. (b) If the ground is level between the transmitter...
scan has the transmitter and receiver housed in the same enclosure and the transmitted light reflected to the receiver from the reflector. Group of answer choices Retroreflective Dilluse Specular Direct scan has the transmitter and receiver housed in the same enclosure and minimal transmitted light reflected to the receiver from the target Group of answer choices Diffuse Direct Retroreflective Specular scan has the transmitter and receiver placed opposite each other so that the light from the transmitter shines directly at...
Transmitter Receiver Figure #1 1) The transmitter circuit is implemented with the schematic shown in Figure #2. A simple measurement indicated that the typical input voltage from the microphone peaks at 40 mV when someone is using normal voice and the LED manufacturer recommends operating at approximately 1.6 V. Determine the values of resistors R. and R2 for the transmitter circuit. T, LED Microphone Phone Figure #2
Problem 3) Design a Double-Side-Band (DSB) based transmitter and receiver (find minimum bandwidth requirement and draw the block diagrams) to send and fully recover 10 human-voice type signals with each signal having the bandwidth of 5kHz. Note that the receiver needs at least 3kHz of separation between each DSB signal for full recovery and you are limited to use AM radio frequency spectrum of 540 to 1600 kHz.
Problem 3) Design a Double-Side-Band (DSB) based transmitter and receiver (find minimum...
6. A transmitter randomly sends one of the messages in {ai,a2,.., ,an). The receiver either receives the transmitted message with probability p, or mistakenly receives one of the other messages with equal probabilities, (a) What is the probability of receiving ai at the receiver? (b) If a is received at the receiver, what is the probability that the transmitted message was 1
An FM radio transmitter has a power output of 140 kW and operates at a frequency of 100.3 MHz. How many photons per second does the transmitter emit? photons/s
