One-half kilogram of air is compressed isothermally and qusistatically in a closed system from 100 kPa...

One-half kilogram of air is compressed isothermally and qusistatically in a closed system from 100 kPa gage pressure and 30C to a final gage pressure of 240 kPa. Determine (a) the internal energy change and (b) the heat transfer and its direction, in kJ?

engineering   Civil-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

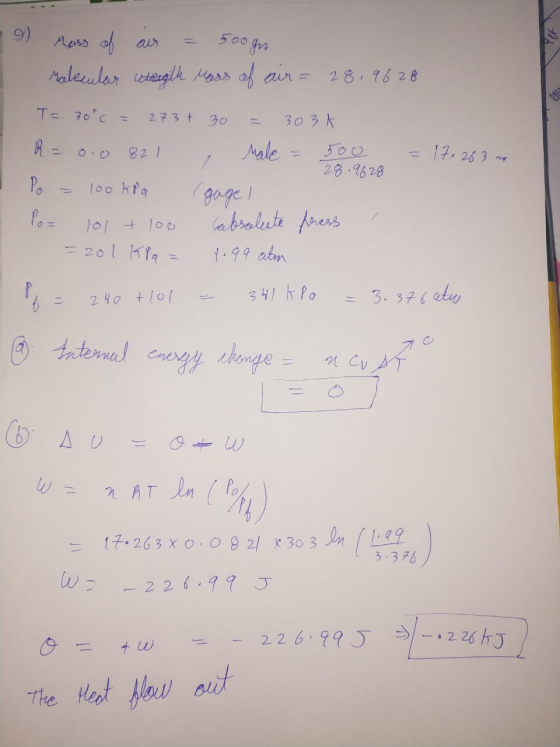

Answer #1

If you like my answer please rate it

0 0
Add a comment
Know the answer?
Add Answer to:
One-half kilogram of air is compressed isothermally and qusistatically in a closed system from 100 kPa...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Air in a piston-cylinder device is compressed from 27°C and 100 kPa to 900 kPa by...

    Air in a piston-cylinder device is compressed from 27°C and 100 kPa to 900 kPa by following a process with Pv14-const. If air is considered as ideal gas, please determine: (1) The air temperature after compression, (2) The heat transfer into or out of the system

  • Consider a closed Brayton cycle heat-engine. Air is compressed from 300K, 100 kPa to 580K, 700...

    Consider a closed Brayton cycle heat-engine. Air is compressed from 300K, 100 kPa to 580K, 700 kPa. The air is heated at the rate of 950 kJ/kg before it enters the turbine. The isentropic efficiency of the turbine is 86%. Determine: a) the fraction of the turbine shaft power used to drive the compressor, and b) the thermal efficiency of the engine. Sketch the prooess on a T-s diagram. Do the calculation first with variable specific heats and then repeat...

  • USE THE AIR TABLES 0.5 kg of air is initially at 280 K, 100 kPa in...

    USE THE AIR TABLES 0.5 kg of air is initially at 280 K, 100 kPa in a frictionless adiabatic piston-cylinder. Find the volume of the cylinder (m). Find the initial internal energy (kj/kg) using the air tables. A. B. The air is compressed po ytropically according to P * (V)1.4 = constant to a volume which is 32.3% of the initial volume (V.-0323 V). Find the new volume (m), pressure (kPa), temperature (K) and internal energy (kJ/kg). Find the work...

  • 5) Air at standard conditions is compressed from 7 m to 1 m isothermally. What is...

    5) Air at standard conditions is compressed from 7 m to 1 m isothermally. What is its final pressure? (Standard conditions of air is 68 °F or 293.15 K and 14.7 psia or 101 kPa abs)

  • 100 kg/hr of air is compressed from 110 kPa and 255 K (where it has an...

    100 kg/hr of air is compressed from 110 kPa and 255 K (where it has an enthalpy of 489 kJ/kg) to 1000 kPa and 278 K (where it has an enthalpy of 509 kJ/kg). The exit velocity of the air from the compressor is 60 m/s. The inlet velocity is very small and can be neglected. The process is adiabatic and there is no change in height during the process. a) Label all known information on the diagram. State if...

  • Propane is compressed from an initial state with a pressure of 100 lbf/in2 and a quality...

    Propane is compressed from an initial state with a pressure of 100 lbf/in2 and a quality of 0.40 to a final saturated liquid state with a temperature is 50°F. Is it possible for this process to occur adiabatically? Justify your answer. Air is contained in a rigid, well-insulated container of volume 3 m3. The air undergoes a process from an initial state with a pressure of 200 kPa and temperature of 300 K. During the process, the air receives 720...

  • A piston-cylinder assembly initially contains 0.8 kg of air at 100 kPa and 300 K. It...

    A piston-cylinder assembly initially contains 0.8 kg of air at 100 kPa and 300 K. It is then compressed in a polytropic process PV3 = C to half the original volume. Assuming the ideal gas model for air and specific heat ratio is constant, k=1.4, determine (a) the final temperature, (b) work and heat transfer, each in kJ. R= 0.287 kJ/kg K. W, 82

  • AIR A 45-cm piston-cylinder system contains 0.65 m3 of air. At the position shown, there is...

    AIR A 45-cm piston-cylinder system contains 0.65 m3 of air. At the position shown, there is no force in the spring (k = 2.5 kN/m), and the pressure and temperature are 1,100 kPa and 350 °C respectively. Heat is transferred to the air until its volume increases 30 %. Determine: a) The final temperature and pressure of the air in °C; b) the change in total internal energy of the air in kJ.

  • 0.20 kg of air at pressure of 113 kPa occupies 0.18 m3 and from this condition...

    0.20 kg of air at pressure of 113 kPa occupies 0.18 m3 and from this condition it is compressed to 1237 kPa accordingly to the law P*(V)1.28 = constant. Determine change of internal energy of the air in kJ, Cp=1.005 kJ/kg K Cv=0.718kJ/kg K R=0.287 kJ/kg K

  • A frictionless piston-cylinder device contains 0.2 kg of air at 100 kPa and 27°C. The air...

    A frictionless piston-cylinder device contains 0.2 kg of air at 100 kPa and 27°C. The air is now compressed slowly according to the relation P Vk = constant, where k = 1.4, until it reaches a final temperature of 77°C. Sketch the P-V diagram of the process with respect to the relevant constant temperature lines, and indicate the work done on this diagram. Using the basic definition of boundary work done determine the boundary work done during the process [-7.18...
