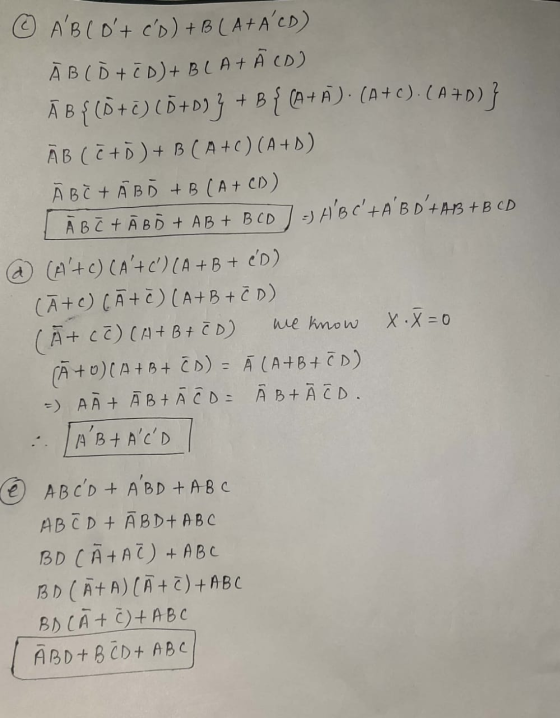

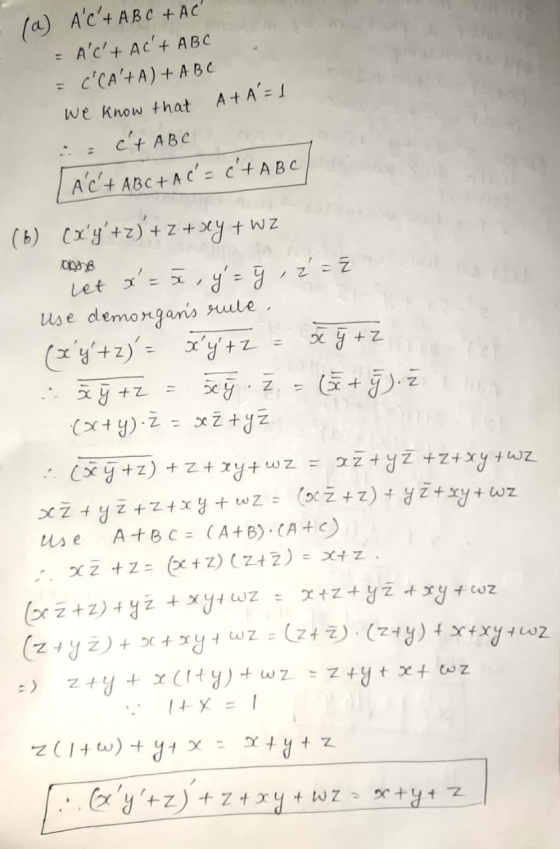

Simplify the following Boolean expression as much as possible using Boolean algebra. (a) A ‘C ‘...
Simplify the following Boolean expression as much as possible using Boolean algebra. (a) A ‘C ‘ + ABC + AC ‘ (b) (x ‘y ‘ + z) ‘ + z + xy + wz (c) A ‘B (D ‘ + C ‘D) + B(A + A ‘CD) (d) (A ‘ + C) (A ‘ + C ‘) (A + B + C ‘D) (e) ABC'D + A'BD + ABC
Homework Answers
Add Answer to:
Simplify the following Boolean expression as much as possible
using Boolean algebra. (a) A ‘C ‘...
Simplify the following Boolean expressions to the minimum number of terms using the properties of Boolean algebra (show...
Simplify the following Boolean expressions to the minimum number of terms using the properties of Boolean algebra (show your work and write the property you are applying). State if they cannot be simplified A. X’Y + XY B. (X + Y)(X + Y’) C. (A’ + B’) (A + B)’ D. ABC + A’B + A’BC’ E. XY + X(WZ + WZ’)
[8] Using properties of Boolean algebra, simplify the following Boolean expressions so they could be built...
[8] Using properties of Boolean algebra, simplify the following Boolean expressions so they could be built with the minimum number of gates. a. X= A + BC + AB + ABC + B b. Y = AB + B(AC + BC + ABC' + A) C. W = ABC' + AB'C' + B'CD + A'C + BC d. Z = (A + B')' + (ABC')' +A(B + A'C)'
a). Simplify the following Boolean expression to a minimum number of literals: (a+b+c') (a'b'+c) b). Reduce...
a). Simplify the following Boolean expression to a minimum number of literals: (a+b+c') (a'b'+c) b). Reduce the following Boolean expression to the indicated number of literals: ABC'D+A'BD+ABCD(4 literals)
Q1: Boolean algebra 1. Simplify the following Boolean expression using Boolean algebra we learned in class...
Q1: Boolean algebra 1. Simplify the following Boolean expression using Boolean algebra we learned in class land draw the logic diagram of the simplified expression - - F= ABC + ABC + ABC + ABC+ ABC
1. Simplify the following Boolean expression: (solution should be one term) XY+XY 2. Simplify the following...
1. Simplify the following Boolean expression: (solution should be one term) XY+XY 2. Simplify the following Boolean expression: (solution should be one term) (X+Y)(X+Y)(X'+Z”) 3. Simplify the following Boolean expression ABC+ABC'+AB'C+AB'C' 4. Simplify the following Boolean expression AB +A'C +BC 5. Simplify the following Boolean expression. (A+B)(AB)
Simplify this boolean expression: A'B'CD + A'BC'D + A'BCD' + A'BCD + AB'C'D + AB'CD' +...
Simplify this boolean expression: A'B'CD + A'BC'D + A'BCD' + A'BCD + AB'C'D + AB'CD' + AB'CD + ABC'D' + ABC'D + ABCD' + ABCD. and the resulting simplified expression should be equal to AB + BC + CD + AD + AC + BD. Please simplify it using boolean identities and not karnaugh maps.
simplify expression using theorems of boolean algebra Simplify expression using theorems of boolean algebra A middot...
simplify expression using theorems of boolean algebra
Simplify expression using theorems of boolean algebra A middot B bar middot C bar + A bar B bar C bar + A bar BC bar + A bar B bar C
Simplify the following functional expression using Boolean algebra and its identities. List the identity used at...
Simplify the following functional expression using Boolean algebra and its identities. List the identity used at each step. x(y+z)(x'+z')
Reduce the following expression using boolean algebra: abc'+bc'd'+a'bd+c'd into the form b+c'd
Reduce the following expression using boolean algebra: abc'+bc'd'+a'bd+c'd into the form b+c'd
Simplify the following expressions using Boolean algebra. ABC + ABC + B ABCD + CD +...
Simplify the following expressions using Boolean algebra. ABC + ABC + B ABCD + CD + A ABCD + ABC + ABD + ABCD ABCD + ABCD + ACD + C + A ABCD + ABEF + CD + D + F ABCD + ABCD + ABCD ABC + ABC + ABCDEF + EF ABCD + ABCD + ABCD + ABCD Simplify the following expressions using KMAP ABCCD + ABCD + ABCD ABCD + ABCD + ABCD + ABCD AB...
[8] Using properties of Boolean algebra, simplify the following Boolean expressions so they could be built with the minimum number of gates. a. X= A + BC + AB + ABC + B b. Y = AB + B(AC + BC + ABC' + A) C. W = ABC' + AB'C' + B'CD + A'C + BC d. Z = (A + B')' + (ABC')' +A(B + A'C)'
Q1: Boolean algebra 1. Simplify the following Boolean expression using Boolean algebra we learned in class land draw the logic diagram of the simplified expression - - F= ABC + ABC + ABC + ABC+ ABC
1. Simplify the following Boolean expression: (solution should be one term) XY+XY 2. Simplify the following Boolean expression: (solution should be one term) (X+Y)(X+Y)(X'+Z”) 3. Simplify the following Boolean expression ABC+ABC'+AB'C+AB'C' 4. Simplify the following Boolean expression AB +A'C +BC 5. Simplify the following Boolean expression. (A+B)(AB)
simplify expression using theorems of boolean algebra
Simplify expression using theorems of boolean algebra A middot B bar middot C bar + A bar B bar C bar + A bar BC bar + A bar B bar C
Simplify the following expressions using Boolean algebra. ABC + ABC + B ABCD + CD + A ABCD + ABC + ABD + ABCD ABCD + ABCD + ACD + C + A ABCD + ABEF + CD + D + F ABCD + ABCD + ABCD ABC + ABC + ABCDEF + EF ABCD + ABCD + ABCD + ABCD Simplify the following expressions using KMAP ABCCD + ABCD + ABCD ABCD + ABCD + ABCD + ABCD AB...
